Alpha 36S

About the Alpha 36S

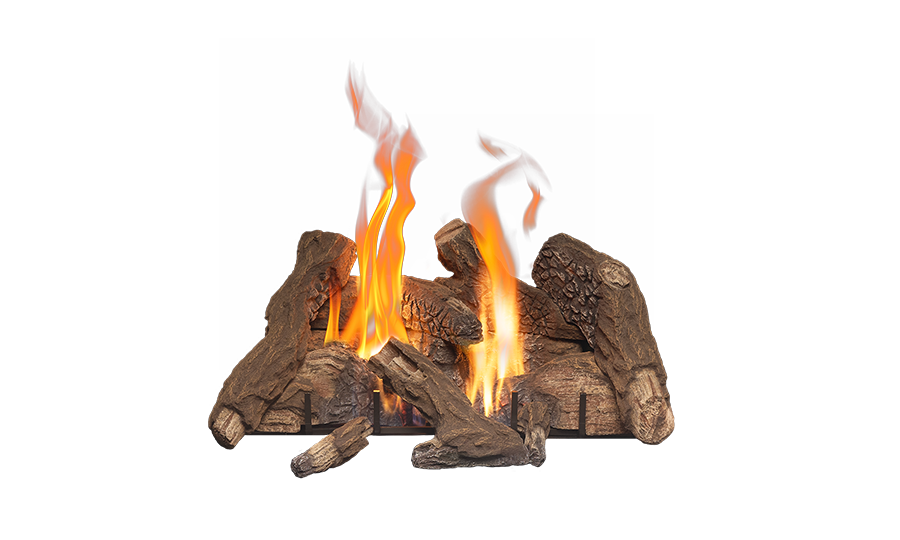

The Alpha 36s is a clean-face traditional fireplace with a traditional log set. It is available in an arched or rectangular opening.

The Alpha 36s is a Stunning Direct Vent Gas Fireplace The Alpha 36s benefits from a wide range of design options. This enables customization to meet your exact specifications. Because it’s a direct vent model, it can be placed almost anywhere in the home; with flexible venting connecting it to the outside world, air is allowed to flow around the fire bin when necessary. A Traditional Gas Fireplace that Offers Excellent Energy-Efficiency Energy-efficiency is always an important consideration when selecting a suitable heating appliance. Not only does better efficiency mean lower bills, saving fuel is also environmentally important. The Alpha 36s is rated at 69.77%/71.34% AFUE. It also performs at 48,000 BTU/hr input when using natural gas and 46,500 BTU/hr input for LP. Its high efficiency is defined as 74.36% for natural gas and 76.38% for LP gas. Overall, the Alpha 36s makes a cost-effective and economical addition to any home. Range of Exceptional Design Features on Our Gas Fireplace The model can be tailored to meet a wide range of specifications. One of the real design advantages of this choice is the front screen – available with a standard arched or optional rectangular format, it is generously proportioned for maximum viewing pleasure. Control is achieved through a Komfort Kontrol remote that can be minutely adjusted to give the exact temperature required.

Features

• Works when the power is out — a battery backup keeps the remote and ignition running; only the fan needs electricity
• Viewing Area: 38-1/4 x 32-1/16
• 48,000 BTU/hr Input - Natural Gas
• 48,000 BTU/hr Input – LP
• Electronic Ignition (IPI)
• Ceramic Glass
• Fan Kit (2)-75 CFM blowers
• Remote Control - Full Function
• High-Low Regulator
• Engineer-Designed burner system
• Certified to ANSI Z21.88 Vented Gas Heater
• Accent Light Kit

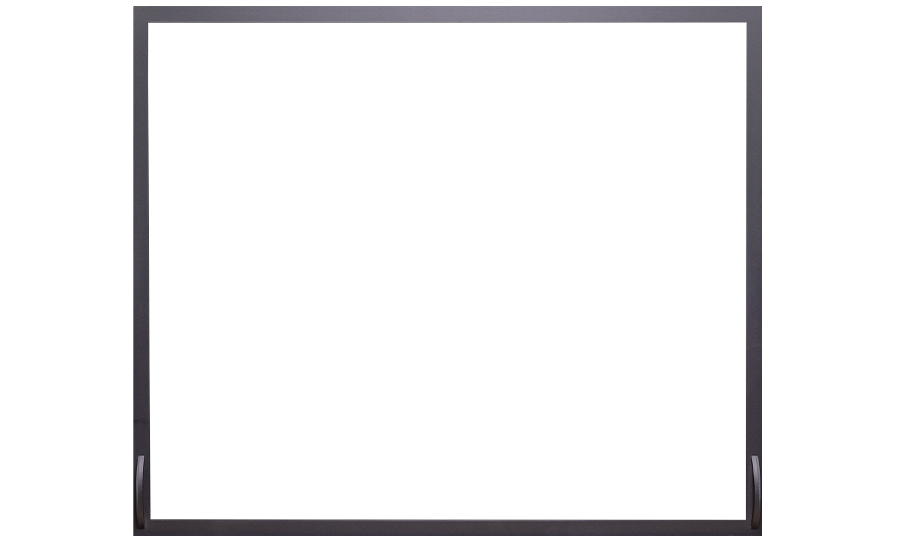

• Screen Front
• Refractory Options *Required for Installation Herringbone Refractory lining

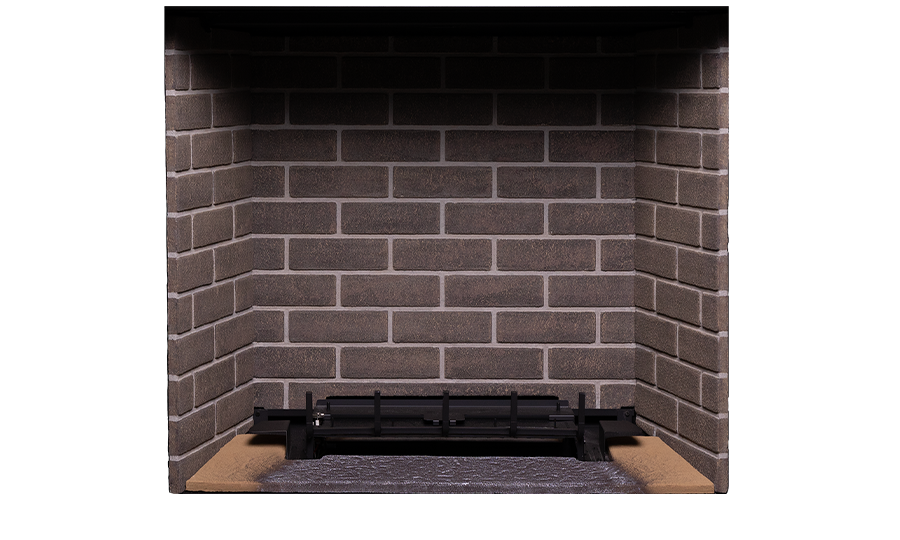

• Traditional Brick Refractory Lining

Height 41 11/16" | Width 46 1/2 " | Depth 23 3/8" | Weight 303 lbs

Will it fit?

Framing (rough opening)

48¾" × 47" × 27¼" (W × H × D)

Unit size

46½" × 41¹¹⁄₁₆" × 23⅜" (W × H × D)

Vent pipe

5" × 8"

Heat output

48,000 BTU/hr (turns down to 24,000)

Heating area

~2,400 sq ft (our estimate from the BTU rating; layout and insulation vary)

From the manufacturer's documentation (page 9). We confirm every measurement on the site visit before anything is ordered.

Documents

• 📄 English - Alpha 36S Brochure
• 📄 English - Alpha Manual
• 📄 English - Power Vent Manual #KPV
• 📄 Vinyl Flooring and Vinyl Siding Addendum
