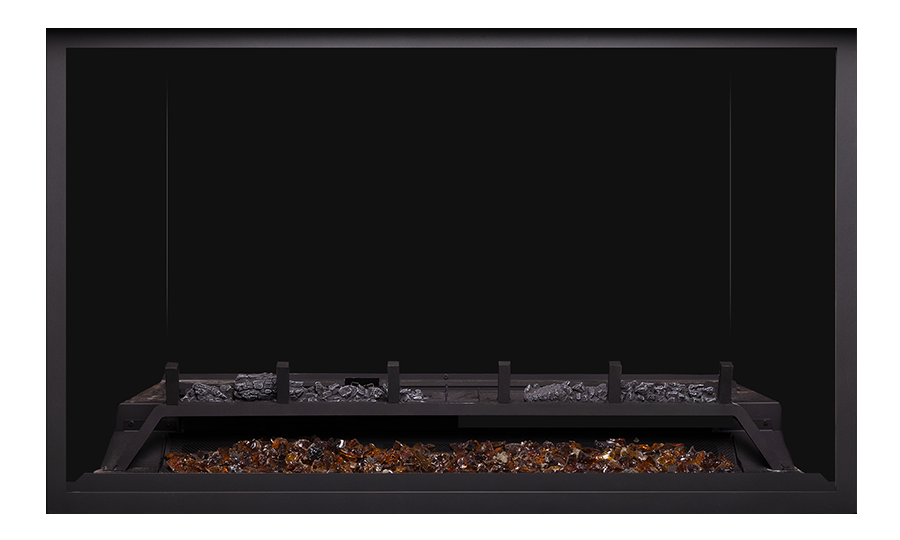

Bellingham 52

About the Bellingham 52

This landscape design series offers an awe-inspiring option for your home.

The Bellingham is a Stunning Landscape Design Gas Fireplace As an ideal heating solution in a landscape shape, the Bellingham series benefits from a wide range of design options. This enables customization to meet your exact specifications. Because it’s a direct vent model, it can be placed almost anywhere in the home that can vent to the outside. Including, but not limited to, the heat distribution options that are available. That way you have your fireplace on during the holidays without getting too hot for friends and family. A Traditional Gas Fireplace that Offers Excellent Energy-Efficiency Energy-efficiency is always an important consideration when selecting a suitable heating appliance. Not only does better efficiency mean lower bills, saving fuel is also environmentally important. The Bellingham 52 is rated at 77.50%/76.86% AFUE. It also performs at 35,000 BTU/hr input when using natural gas and 35,000 BTU/hr input for LP. Overall, the Bellingham 52 makes a cost-effective and economical addition to any home./p> Range of Exceptional Design Features on Our Gas Fireplace The model can be tailored to meet a wide range of specifications. One of the real design advantages of this choice is the front screen – available standard.

Features

• Works when the power is out — a battery backup keeps the remote and ignition running; only the fan needs electricity
• Viewing Area: 52 7/16” x 30 7/8”
• 59,500 High/18,500 Low BTU/hr Input - NG
• 59,500 High/21,500 Low BTU/hr Input - LP
• Split-Flow Burner
• Fan Kit
• Standard top accent light kit and ember bed light kit
• IPI
• Engineer - Designed burner System
• Certified to ANSI Z21.88 Vented Gas Heater
• Ceramic Glass
• Inside fit Safety Screen Front Included
• Top Accent Light Kit
• Ember Bed Light Kit
• Split Flow

Height 41-1/4 " | Width 58-5/8 " | Depth 26-9/16" | Weight 510 lbs

Will it fit?

Framing (rough opening)

65⅝" × 50½" × 28¾" (W × H × D)

Unit size

58⅝" × 41¼" × 26⁹⁄₁₆" (W × H × D)

Vent pipe

5" × 8"

Heat output

59,500 BTU/hr (turns down to 18,500)

Heating area

~3,000 sq ft (our estimate from the BTU rating; layout and insulation vary)

From the manufacturer's documentation (page 9). We confirm every measurement on the site visit before anything is ordered.

Documents

• 📄 English - Bellingham Series Brochure
• 📄 English - Bellingham 52 Manual
• 📄 English - Power Vent Manual #KPV

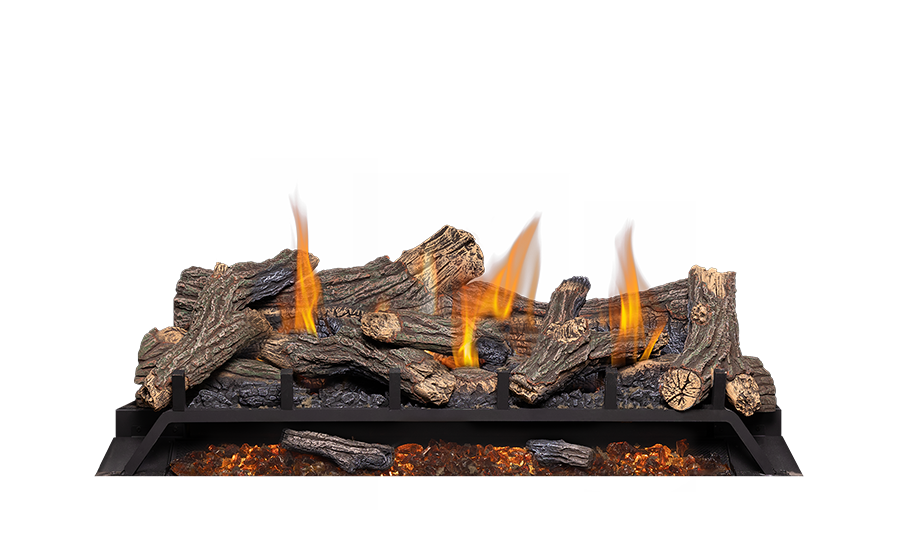

• 📄 Bellingham 52 Log and Birch Set (Log Set Instructions)
• 📄 Vinyl Flooring and Vinyl Siding Addendum
• 📄 English - Komfort Zone Kit #KZK-1510 (Document)
