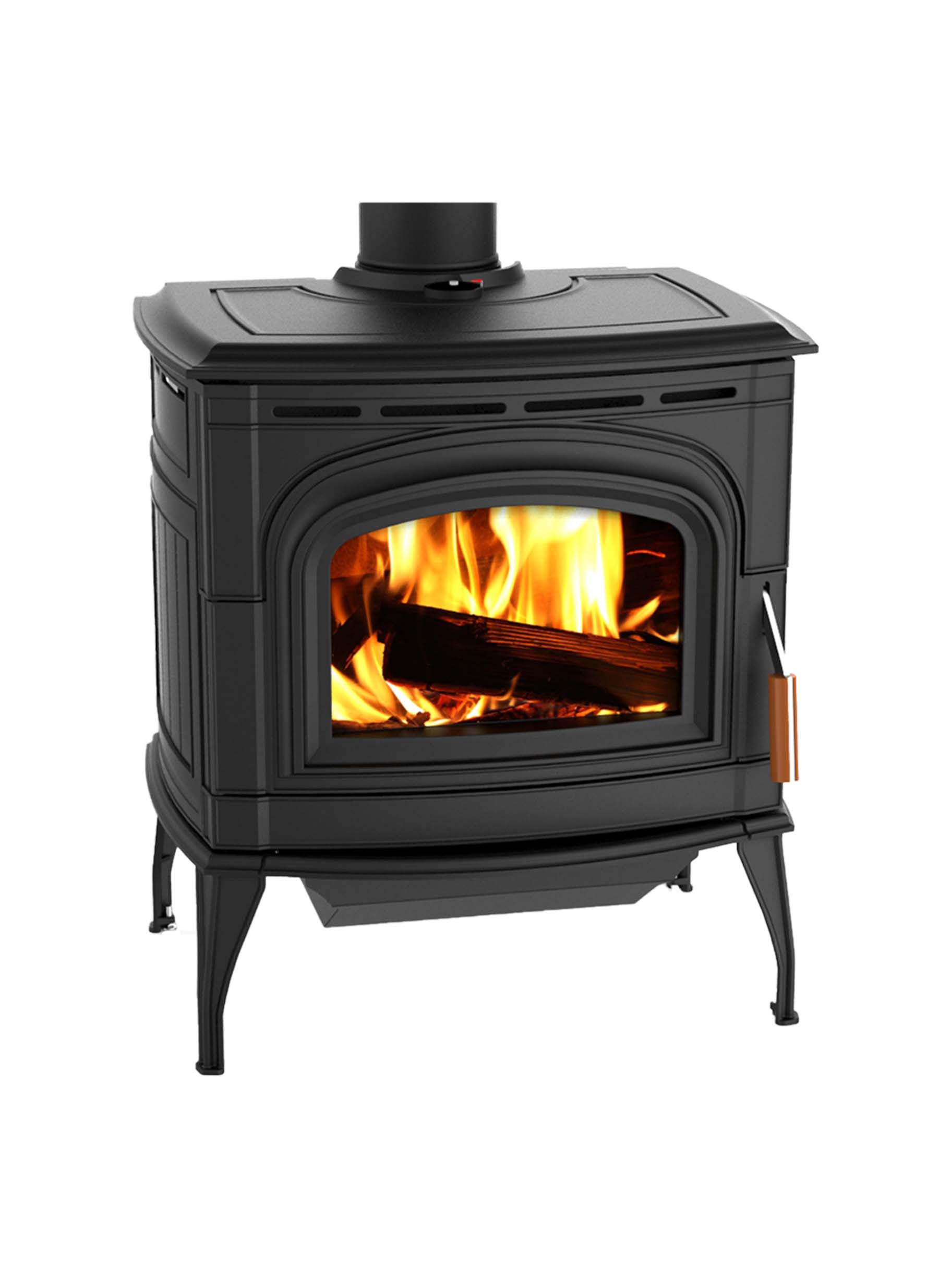

Ashford 20

About the Ashford 20

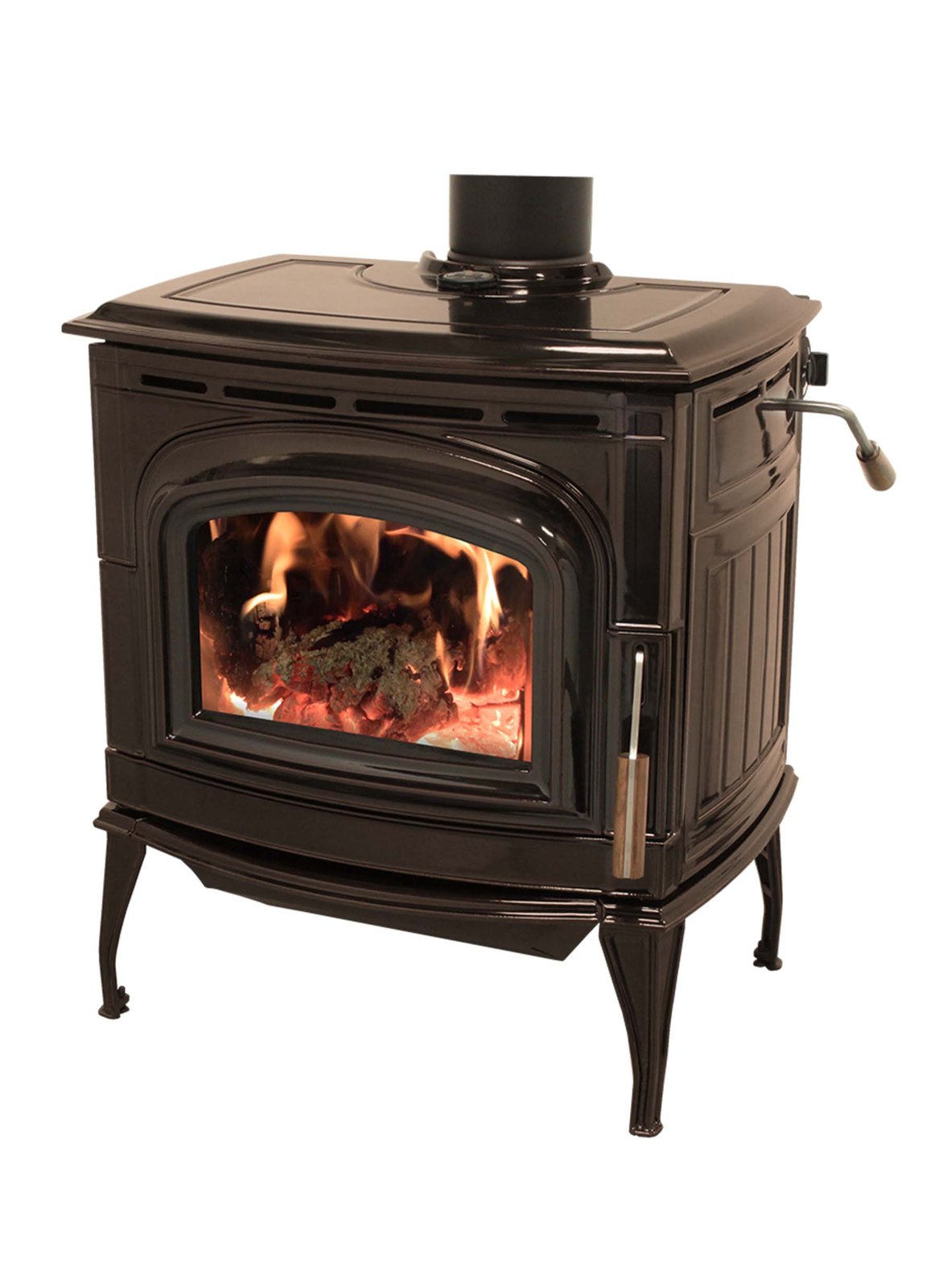

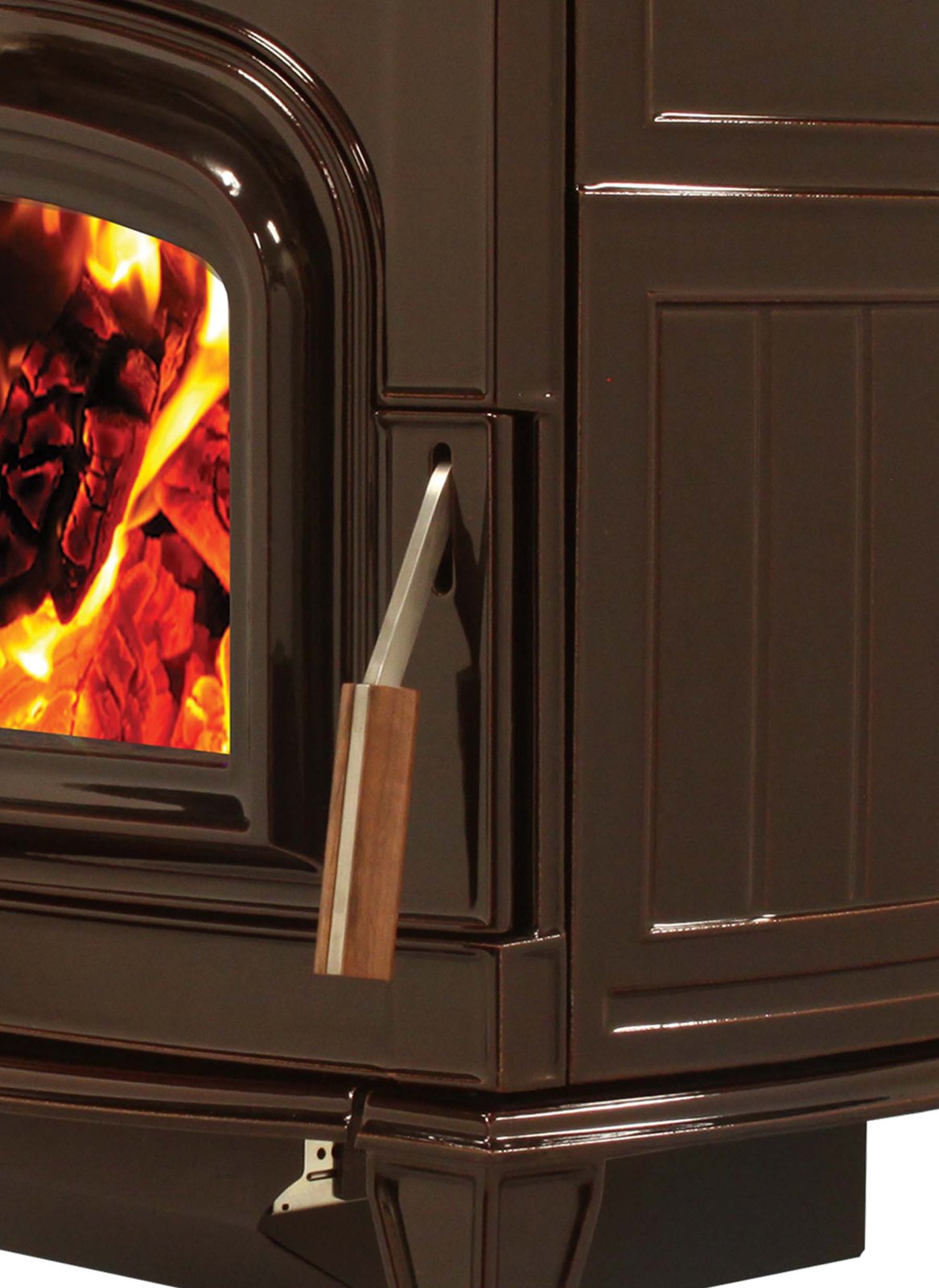

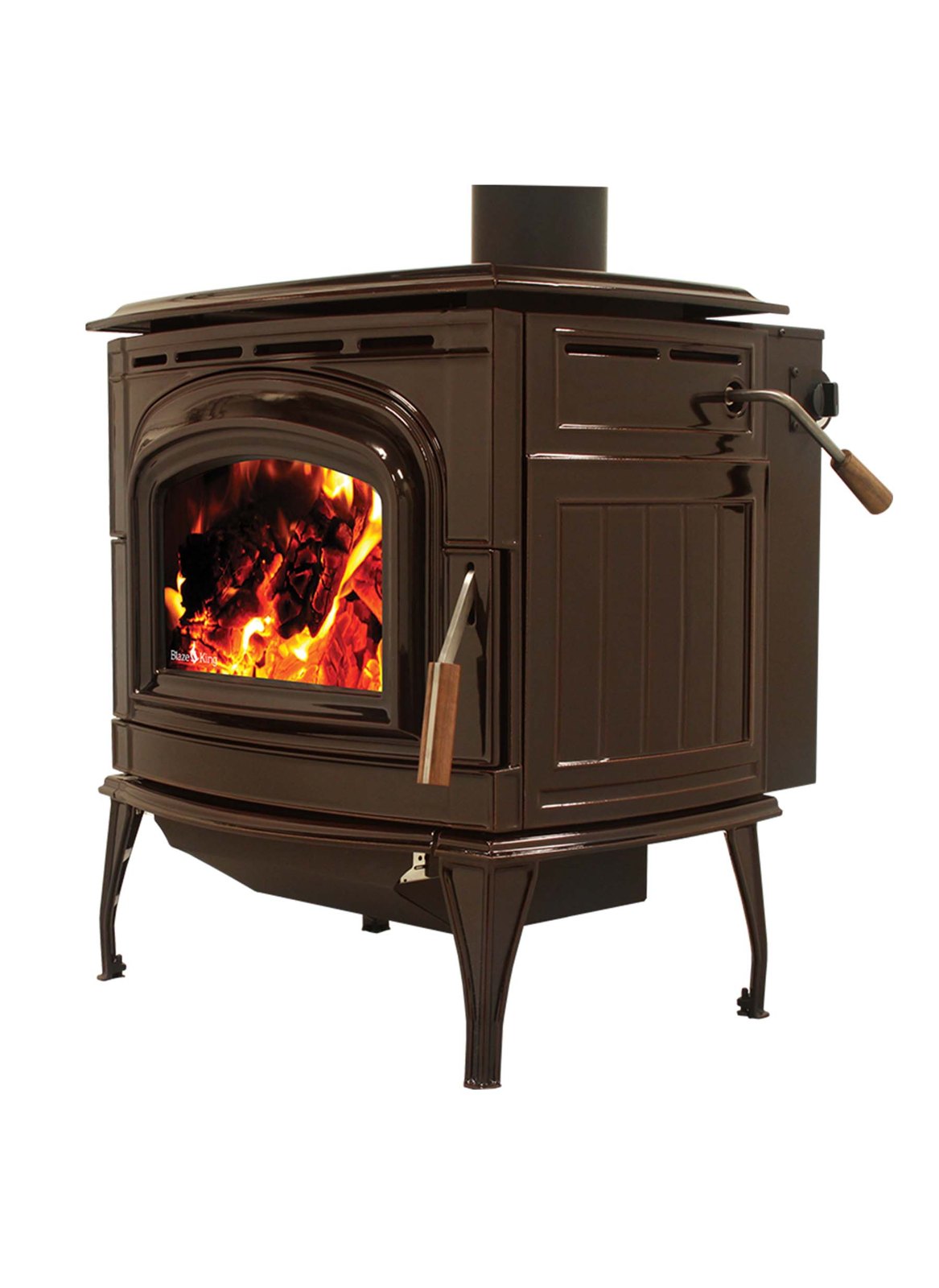

Our craftsmen used the timeless medium of cast iron to create a beautiful and elegant piece of furniture with detailed relief and curves. The Ashford is available in painted metallic black, cast gray and chestnut gloss enamel. Burled walnut is carved for the door and bypass handles. This creates a luxurious feel every time you use your stove. The adjustable, dual action door latch has a positive lock feel and is easy to operate. The Ashford 20 includes standard Ash Drawer which is mounted on Easy Glide runners with a removable Ash Pan and Lid.

Will it fit?

Stove size

26¾" × 30⅜" × 27⅛" (W × H × D)

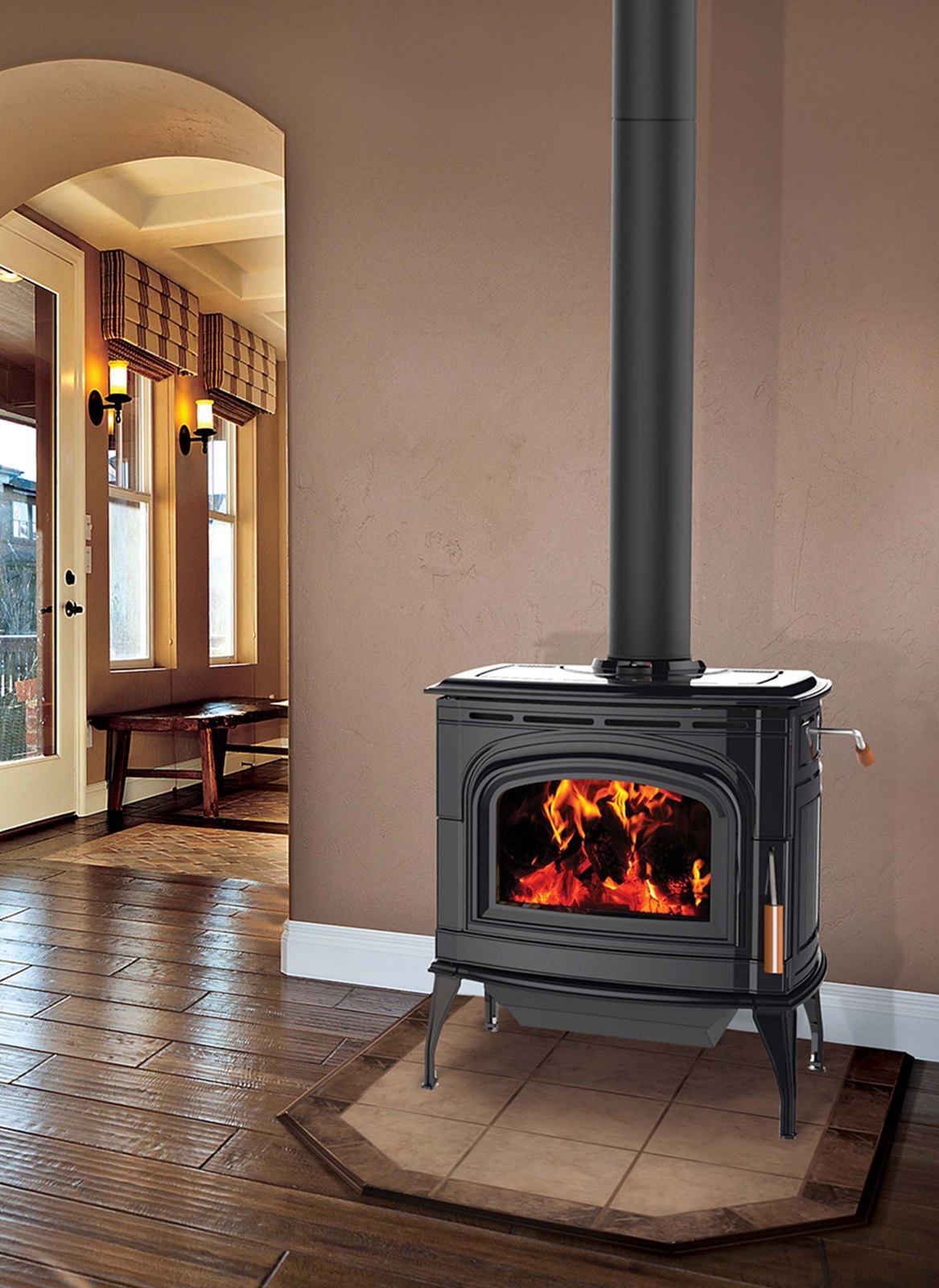

Floor protection (hearth pad)

32" wide × 40⅛" deep

Flue collar

6"

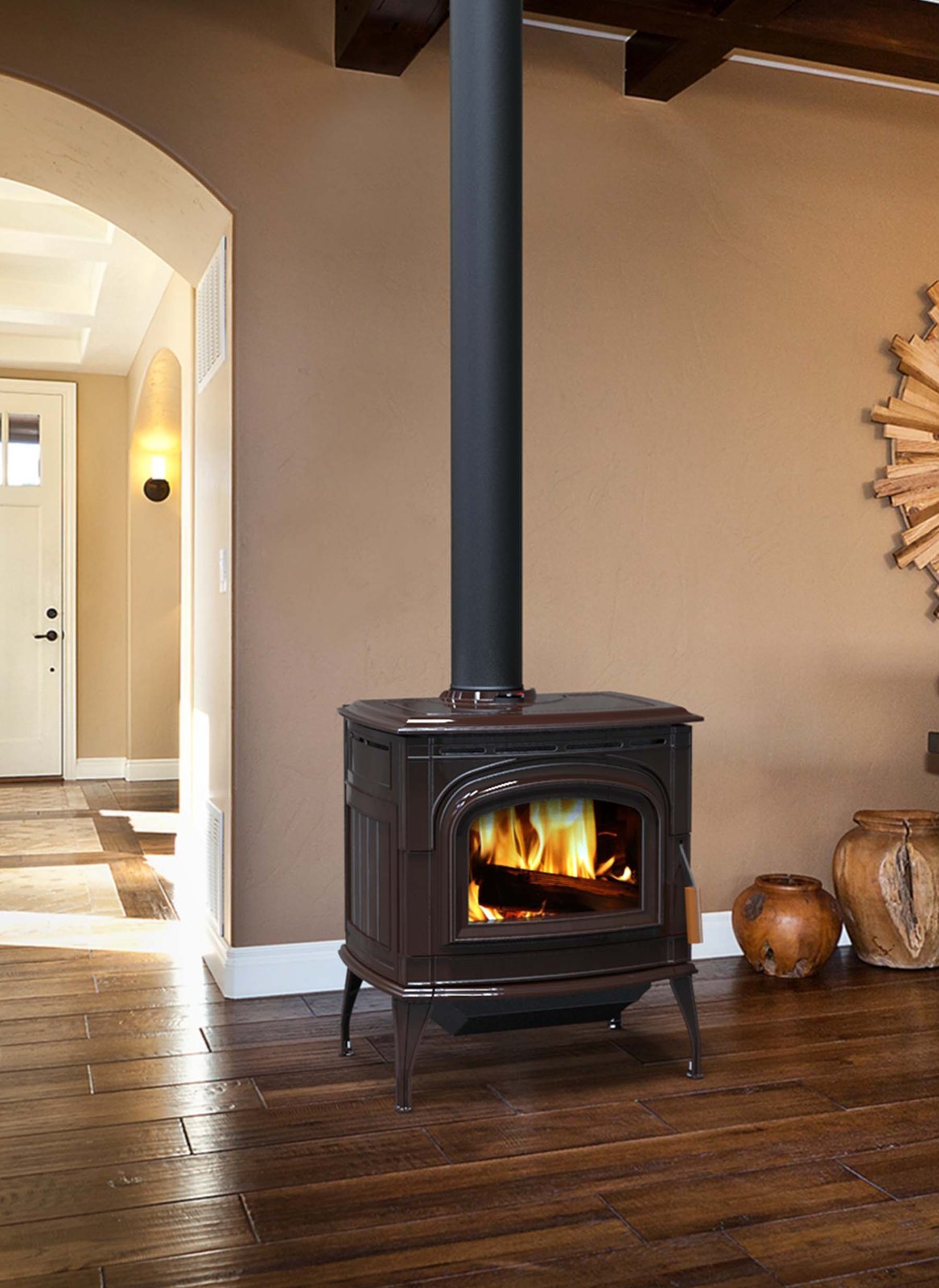

Clearance to walls

6½" behind (flat wall) · 12¾" beside · 2⅝" from each wall in a corner — with double-wall pipe

Floor protection

16" in front of the door, 8" each side

Heat output

32,776 BTU/hr (turns down to 11,370)

Heating area

900–1,500 sq ft (manufacturer's rating)

Log length

16–18" (firebox depth, brick to brick → brick to glass; firebox 17" wide)

Firebox size

1.86 cu ft

Burn time

up to 20 hours

From the manufacturer's documentation (page 8). We confirm every measurement on the site visit before anything is ordered.

Documents

• 📄 Brochure
• 📄 Appliance Dimensions (Spec Sheet)
• 📄 Specifications (manual excerpt) (Spec Sheet)
• 📄 Owner's & Installation Manual
