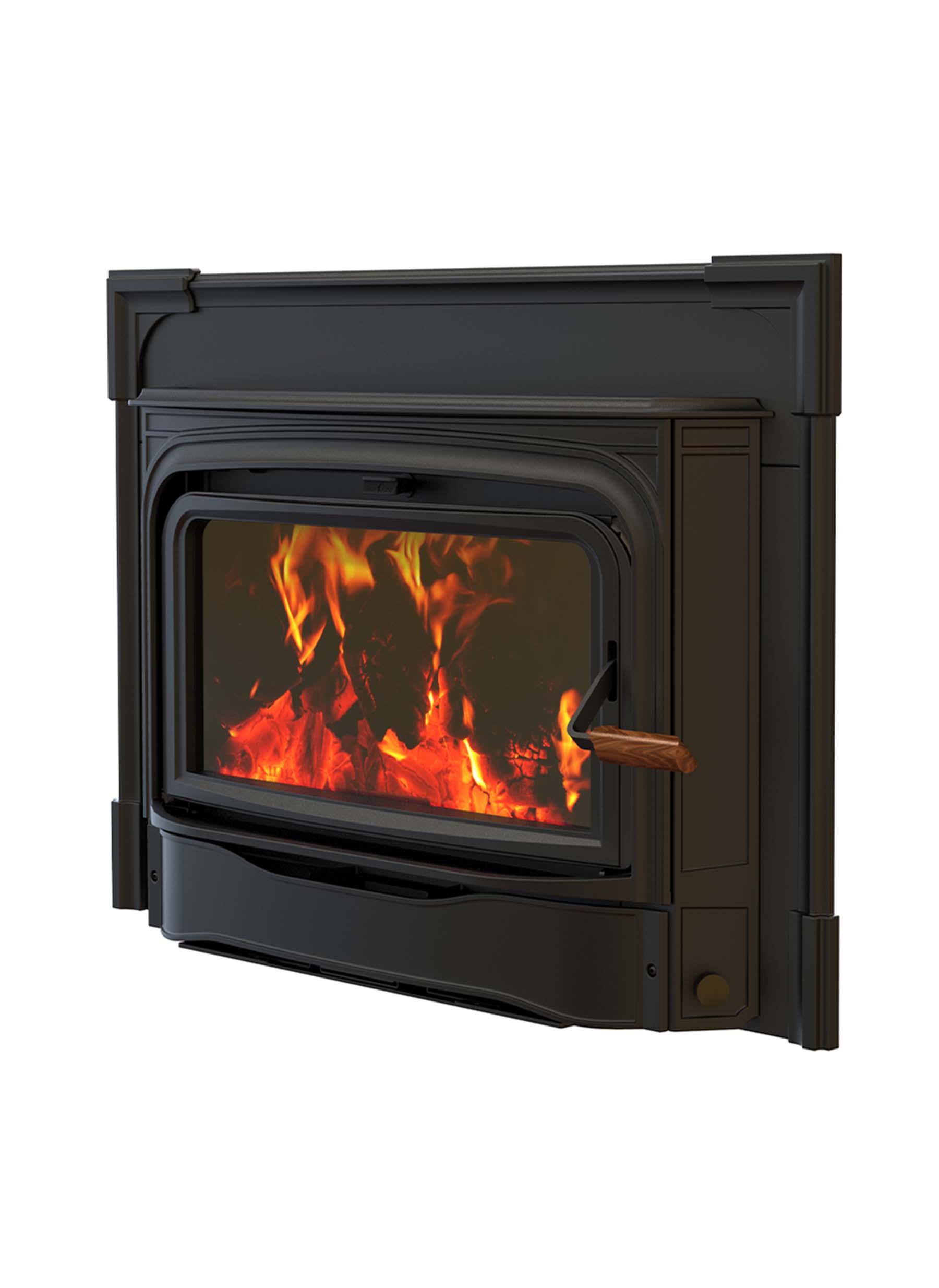

Ashford 25 Insert

About the Ashford 25 Insert

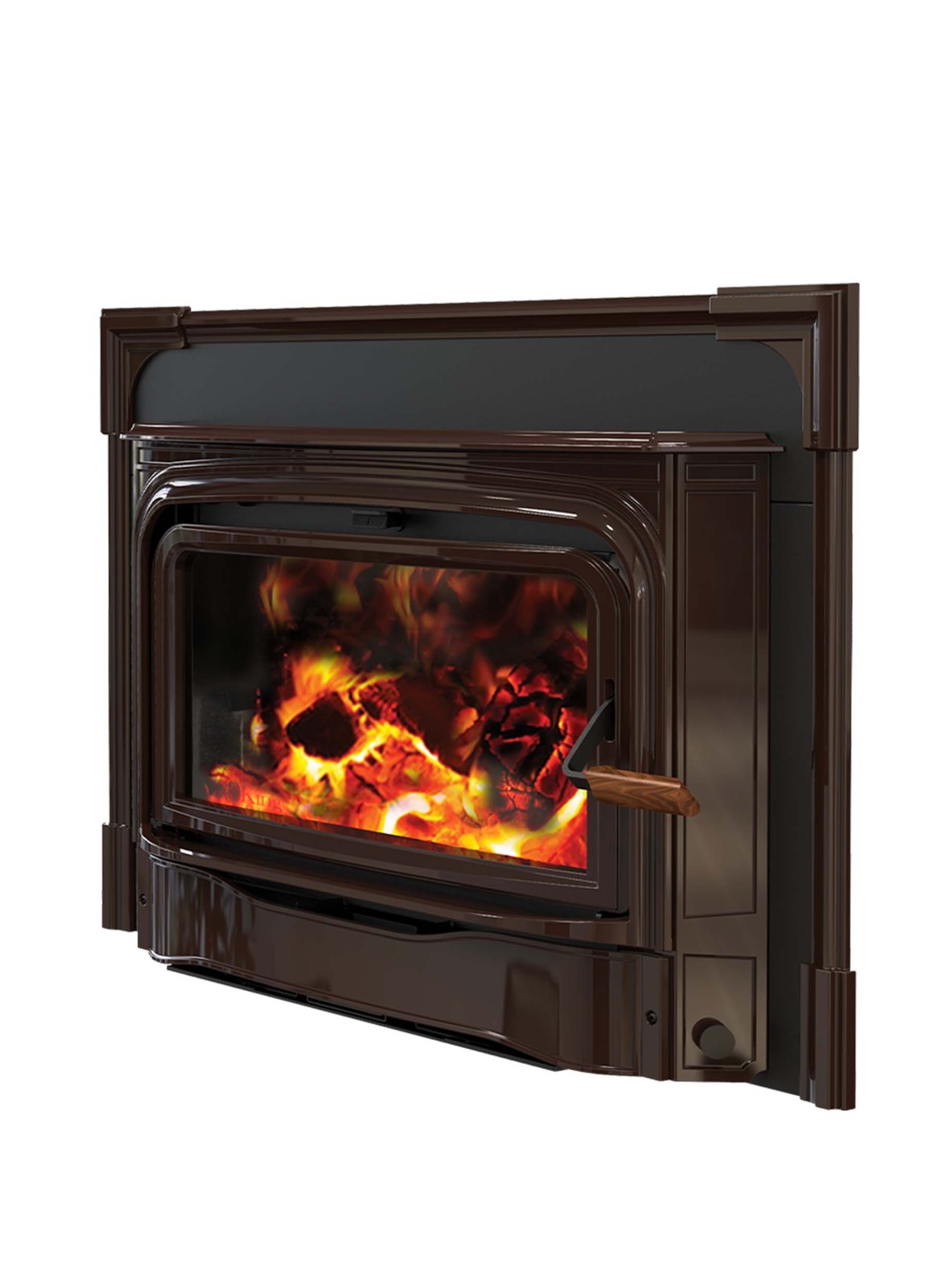

The Ashford 25 is a medium sized fireplace insert. At 2.16 cu. ft., the tapered firebox is 22.75” wide in the front and 18” wide in the rear and can deliver warmth for up to 25 hours on low. The Ashford 25 is very clean and efficient and can heat from 400 – 1,600 sq. ft. The door features a large, 24″ x 11″, wide-screen glass viewing area with a nickel plated and handmade olive-wood door handle. Attention to detail is evident from the layered surround panel to the unique control system that allows you to select the heat you want, and is offered in Metallic Black paint, Cast Gray paint or Chestnut Wood enamel finishes.

Will it fit?

Minimum fireplace opening

29" × 22" × 19" (W × H × D)

Insert body

27⅞" × 22⅜" × 18" (W × H × D)

Chimney

6 in flue collar; Blaze King recommends min 15 ft vertical chimney

Liner / vent

6"

Heat output

25,389 BTU/hr (turns down to 8,474)

Heating area

400–1,600 sq ft (manufacturer's rating)

Log length

16–18" (firebox depth, brick to brick → brick to glass; firebox 20½" wide)

Firebox size

2.06 cu ft

Burn time

up to 25 hours

From the manufacturer's documentation (page 8). We confirm every measurement on the site visit before anything is ordered.

Documents

• 📄 Brochure
• 📄 Appliance Dimensions (Spec Sheet)
• 📄 Specifications (manual excerpt) (Spec Sheet)
• 📄 Owner's & Installation Manual
