Callaway 40

About the Callaway 40

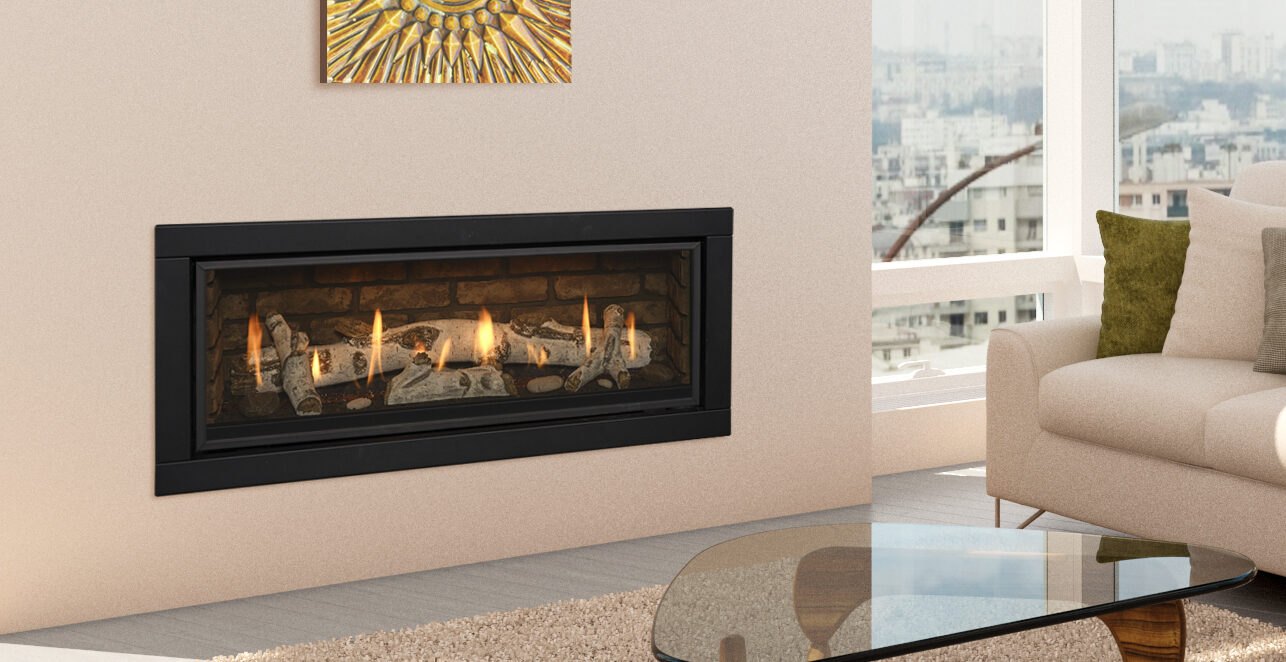

Kozy Heat Fireplaces’ smallest Callaway linear fireplace comes with many options for Heat Distribution.

Our smallest Callaway linear fireplace comes with many options for Heat Distribution. The Callaway 40 with an optional Komfort Zone Kit or a vented cavity. The Komfort Zone Kit & vented cavity gives you the ability to hang your TV safely above your fireplace and bring combustibles right up to the finishing edge.

Features

• Works when the power is out — a battery backup keeps the remote and ignition running; only the fan needs electricity
• Viewing Area: 40" x 13"
• 31,500 High/16,500 Low BTU/hr Input - NG
• 31,500 High/16,500 Low BTU/hr Input - LP
• Electronic Ignition (IPI)
• Engineer - Designed burner System
• Certified to ANSI Z21.88 Vented Gas Heater
• Ceramic Glass
• Inside fit Safety Screen Front Included

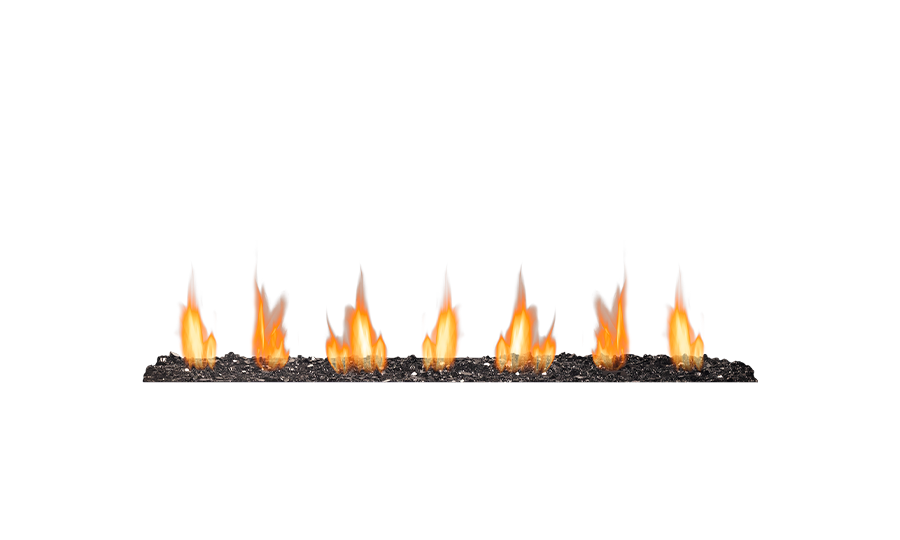

• Burner Media Options Reflective Midnight Crushed Glass
• Reflective Copper CrushedGlass
• Lava Rock
• Media Options Traditional Logs
• Birch Logs
• Beach Accent Kit

Height 39-1/4" | Width 49-1/2" | Depth 18-15/16" | Weight 280 lbs

Will it fit?

Framing (rough opening)

57" × 45½" × 22" (W × H × D)

Unit size

49½" × 39¼" × 22" (W × H × D)

Vent pipe

5" × 8"

Heat output

31,500 BTU/hr (turns down to 16,500)

Heating area

~1,600 sq ft (our estimate from the BTU rating; layout and insulation vary)

From the manufacturer's documentation (page 9). We confirm every measurement on the site visit before anything is ordered.

Documents

• 📄 English - Callaway Series Brochure
• 📄 English - Callaway 40 Manual
• 📄 English - Power Vent Manual #KPV
• 📄 Callaway 40 Log Set (Log Set Instructions)
• 📄 Vinyl Flooring and Vinyl Siding Addendum
• 📄 Callaway 40 BAK Kit (Document)
• 📄 Callaway 40 RAM Kit (Document)
