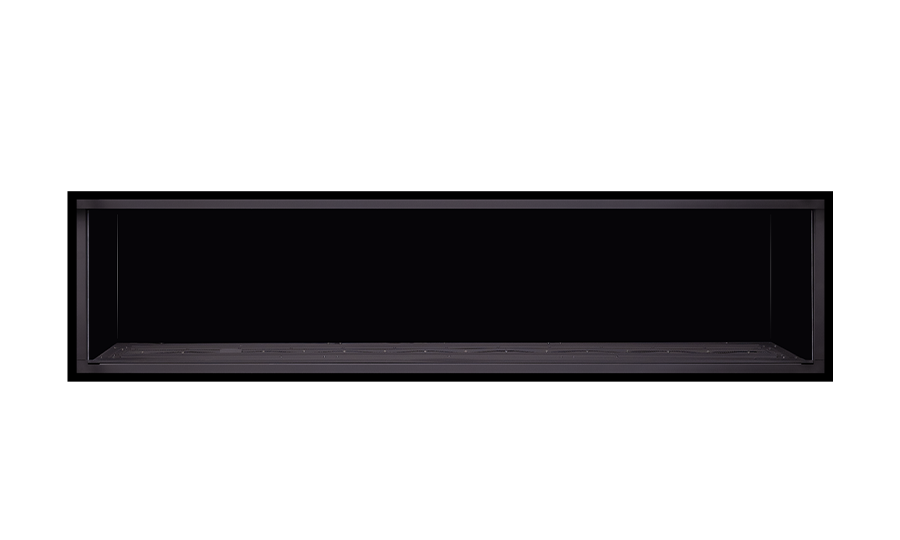

Callaway 72

About the Callaway 72

Linear Fireplace with many different styling options that make this fireplace customizable.

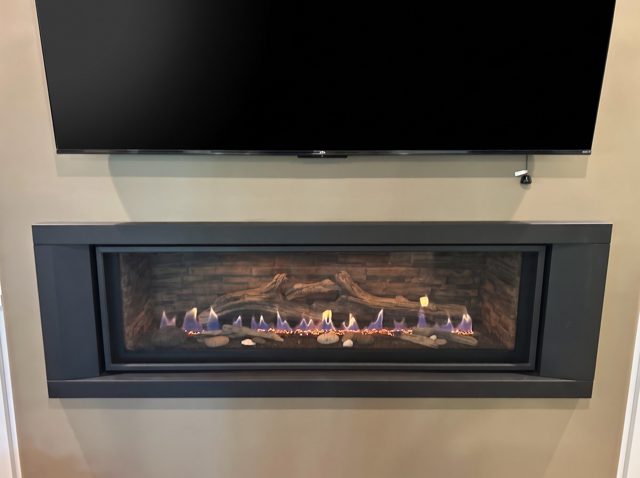

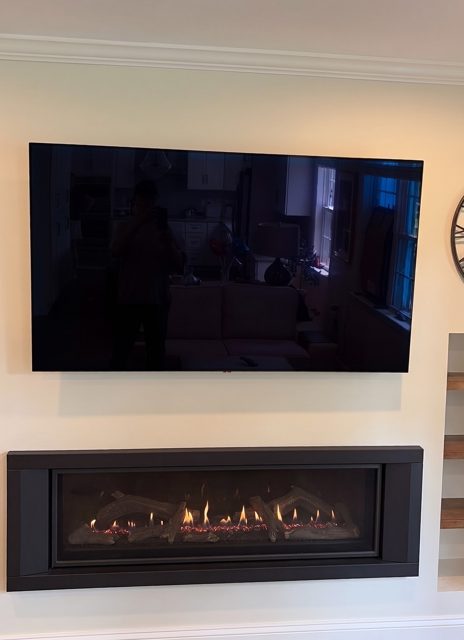

The Callaway 72 comes with many options for Heat Distribution. The Callaway 72 with an optional Komfort Zone Kit or a vented cavity. The Komfort Zone Kit & vented cavity gives you the ability to hang your TV safely above your fireplace and bring combustibles right up to the finishing edge.

Features

• Works when the power is out — a battery backup keeps the remote and ignition running; only the fan needs electricity
• Viewing Area: 72-7/8” x 15-3/4”
• 49,500 High/25,000 Low BTU/hr Input - NG
• 49,500 High/24,000 Low BTU/hr Input - LP
• Electronic Ignition - IPI
• Engineer - Designed burner System
• Certified to ANSI Z21.88 Vented Gas Heater
• Ceramic Glass
• Inside fit Safety Screen Front Included

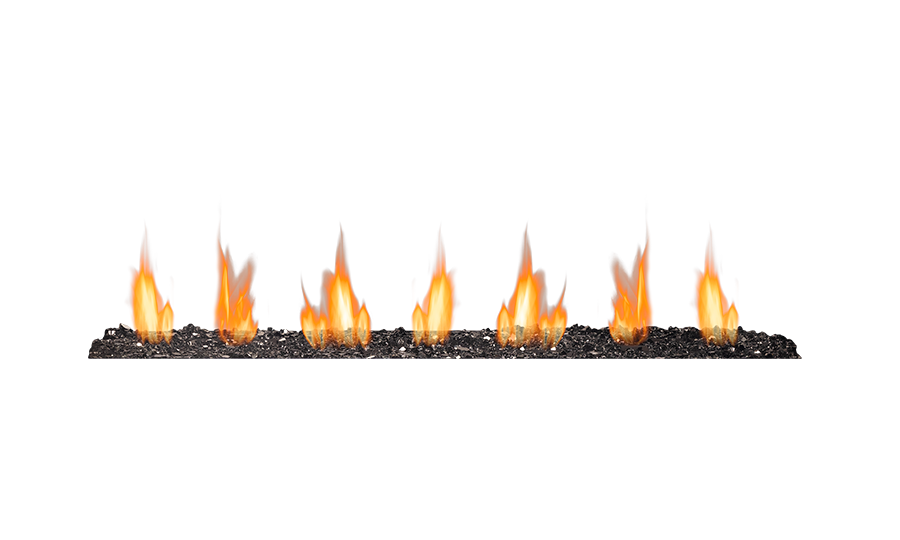

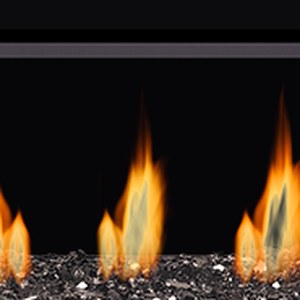

• Burner Media Options Reflective Midnight Crushed Glass
• Reflective Copper CrushedGlass

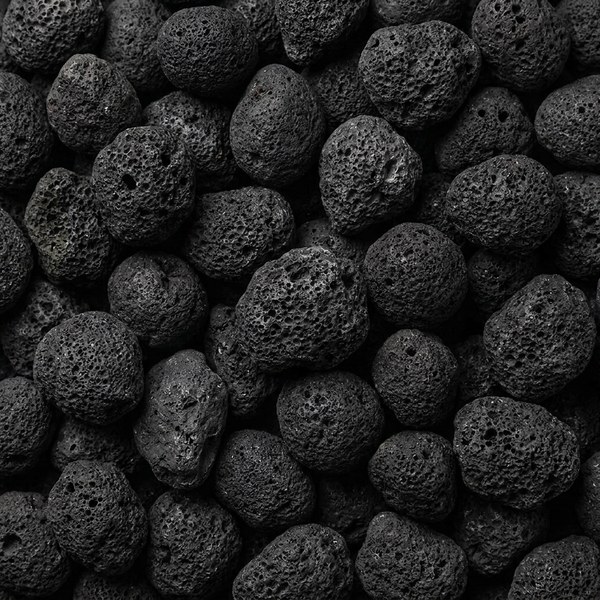

• Lava Rock
• Media Options Traditional Logs

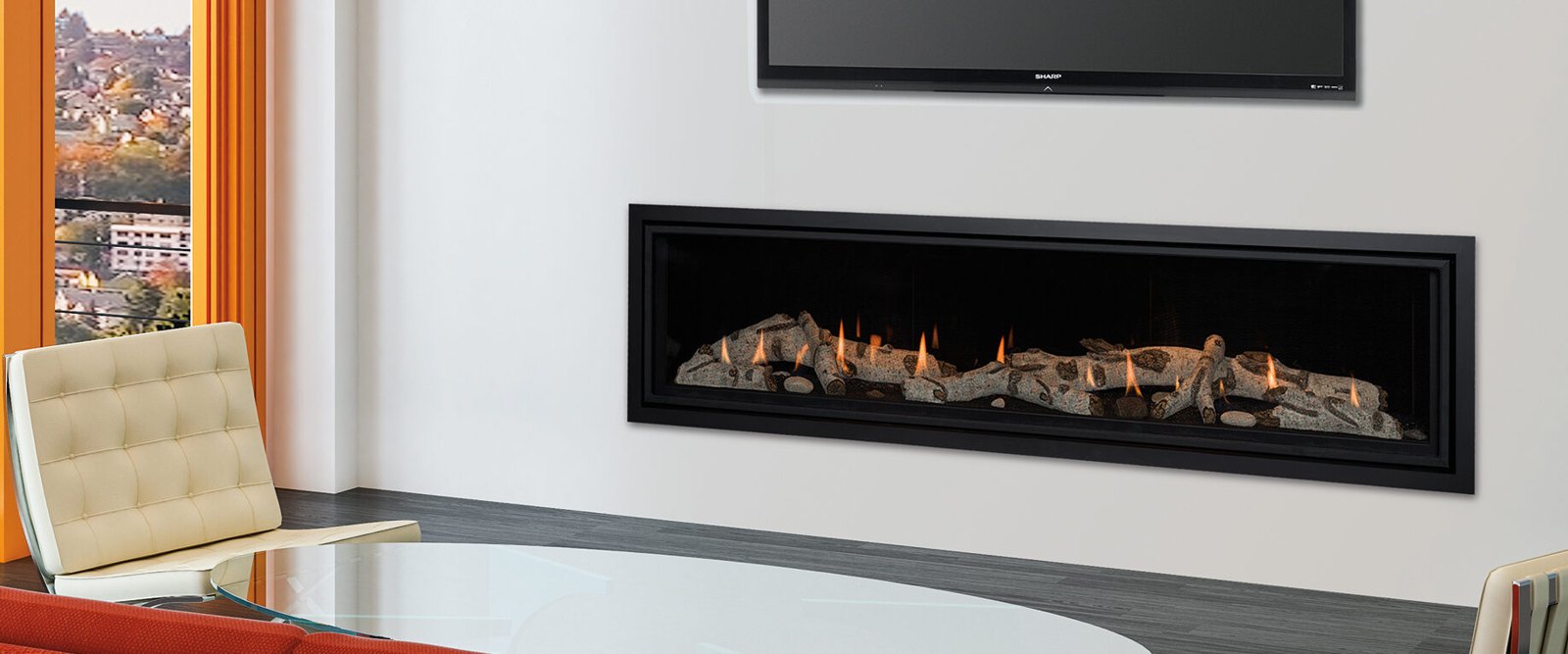

• Birch Logs

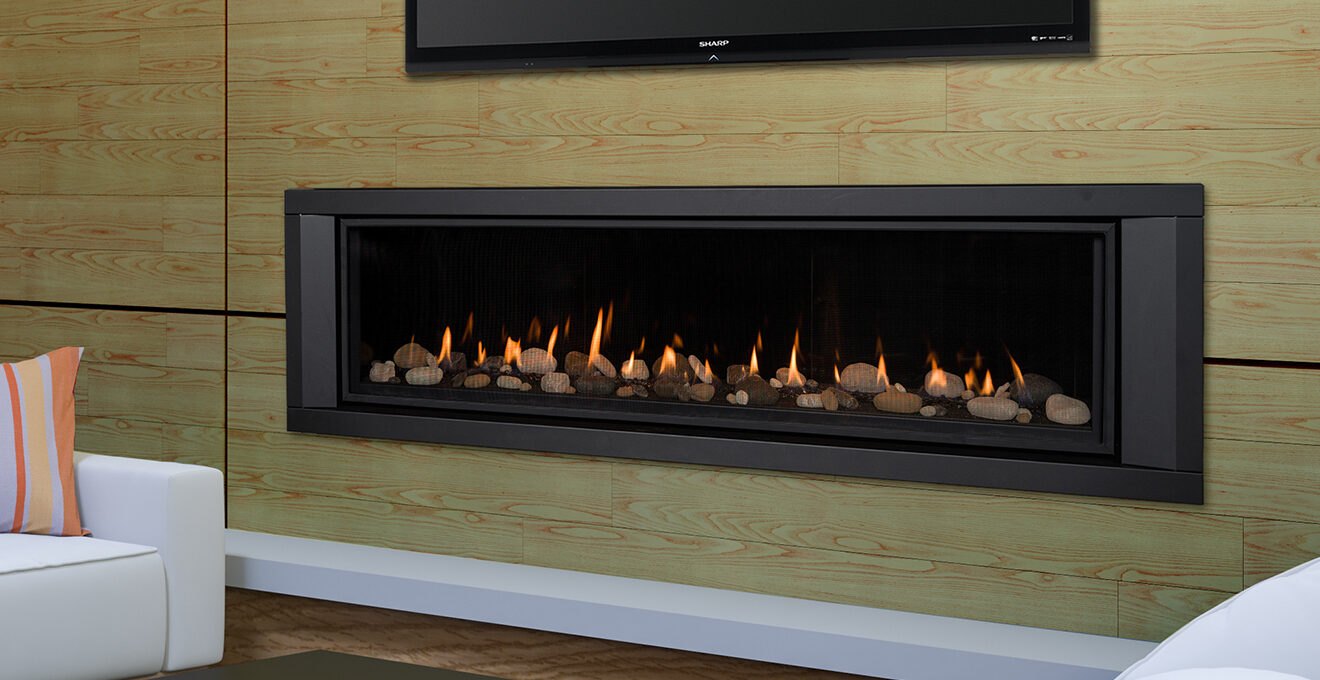

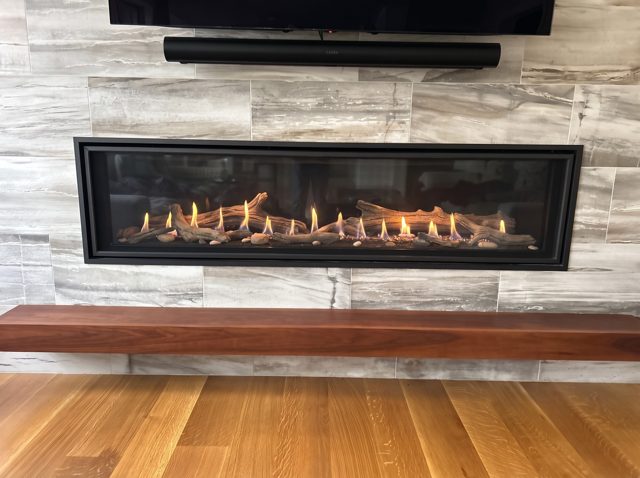

• Beach Accent Kit

Height 40-3/4" | Width 81-1/2" | Depth 18-15/16" | Weight 410 lbs

Will it fit?

Framing (rough opening)

86½" × 48⅝" × 22" (W × H × D)

Unit size

81½" × 40¾" × 22" (W × H × D)

Vent pipe

5" × 8"

Heat output

49,500 BTU/hr (turns down to 25,000)

Heating area

~2,500 sq ft (our estimate from the BTU rating; layout and insulation vary)

From the manufacturer's documentation (page 9). We confirm every measurement on the site visit before anything is ordered.

Documents

• 📄 English - Callaway Series Brochure
• 📄 English - Callaway 72 Manual
• 📄 English - Power Vent Manual #KPV
• 📄 Vinyl Flooring and Vinyl Siding Addendum
• 📄 English - Komfort Zone Kit #KZK-1510 (Document)
• 📄 Callaway 72 Log & Birch Log (Document)
• 📄 Callaway 72 Beach Accent Kit (Document)
• 📄 Callaway 72 RAM Kit (Document)
