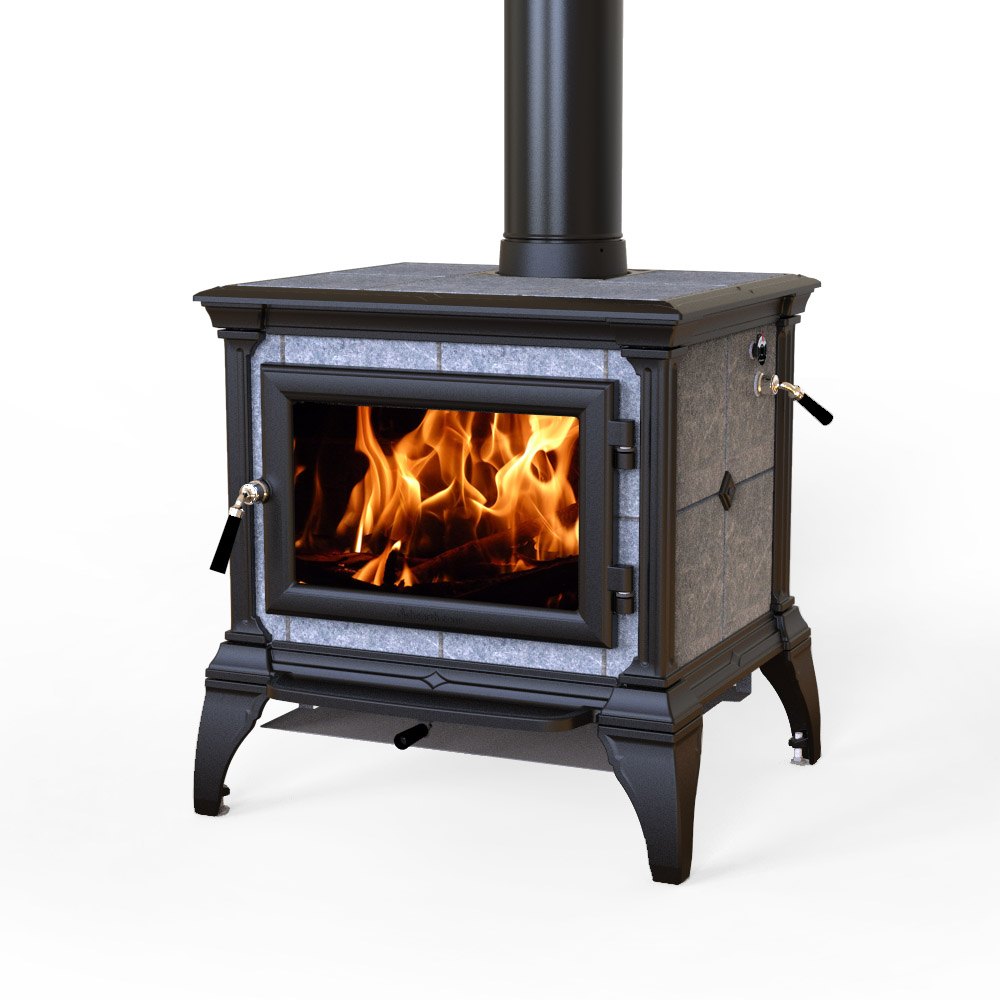

Castleton

About the Castleton

Clean and efficient with extra long burn times. The Castleton has all the essential features of a modern-day wood burning stove.

A 4-tube secondary combustion system with a fixed baffle ensures a clean burn before the catalyst performs the finishing touches. The square shape of the Castleton creates a 19″ wide by 17″ deep firebox. It is perfect for loading and arranging firewood. Turn your stove to high and stoke a big fire. Turn it all the way down to keep a fire burning overnight.

Will it fit?

Stove size

25½" × 27½" × 24" (W × H × D)

Floor protection (hearth pad)

31½" wide × 37" deep

Flue collar

6"

In front of a masonry fireplace

• Approved — rear vent: stands in front and elbows into the liner
• Fireplace opening taller than 22½" (top of the rear pipe)
• Mantel at least 60" above the hearth

Clearance to walls

• 8" behind (flat wall) · 17" beside · 8" from each wall in a corner — with double-wall pipe and the optional rear heat shield (Rear Heat Shield Kit 90-68300)
• 15" behind without it

Floor protection

16" in front of the door, 8" each side

From the manufacturer's documentation (page 7). We confirm every measurement on the site visit before anything is ordered.

Specifications

Heat output

45,000 BTU/hr

Heating area

up to 1,500 sq ft (manufacturer's rating)

Max log length

18"

Firebox size

1.9 cu ft

Burn time

Up to 20+ hrs

Documents

• 📄 Castleton 8031 Sales Sheet (specs & dimensions) (Spec Sheet)
• 📄 Castleton 8031 Owner's & Installation Manual
