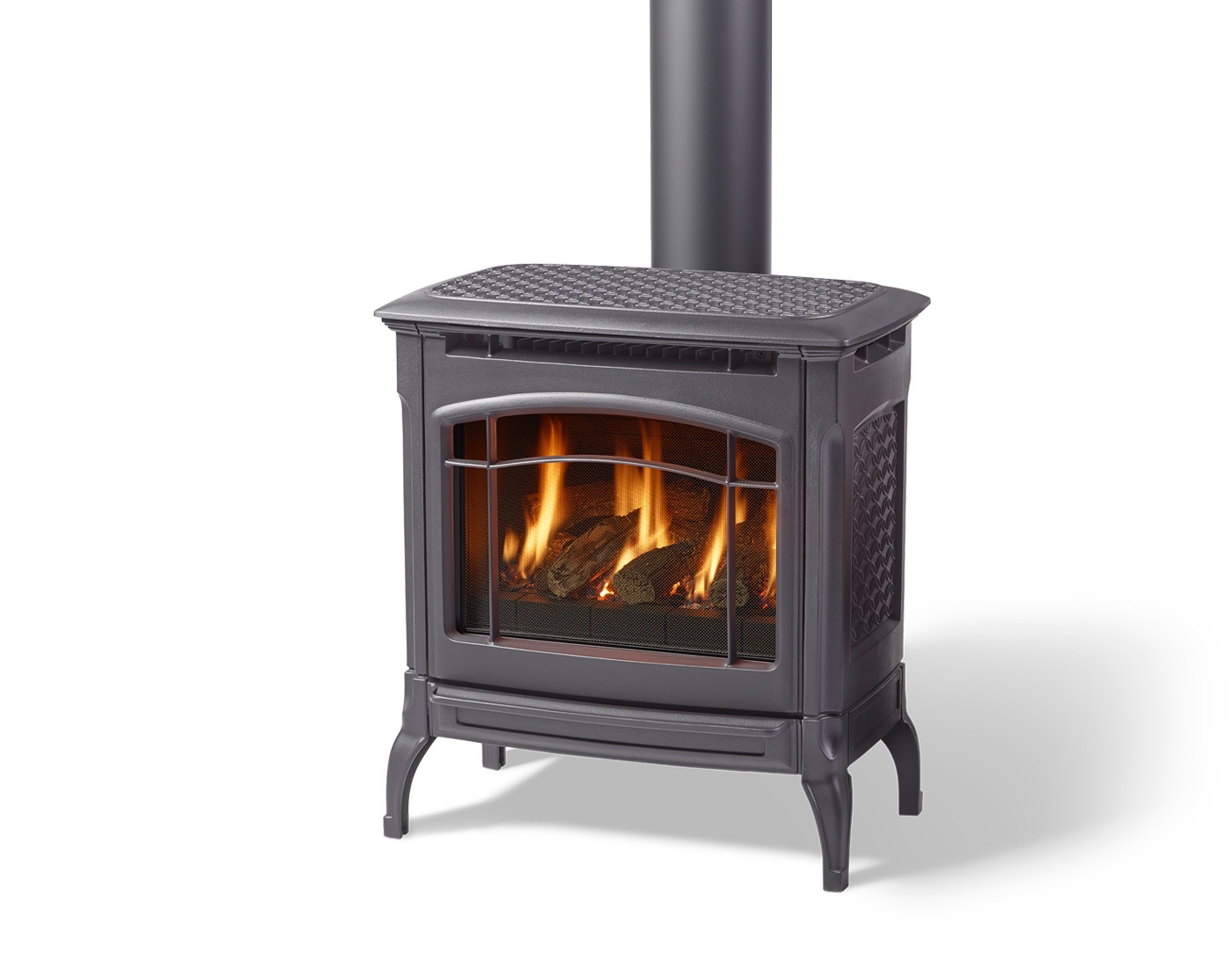

Champlain

About the Champlain

The Champlain will add a touch of classic style to your room.

The Champlain gas stove has been carefully designed to present a balanced, gently flickering fire on both low and high settings. Turn your stove on and off manually, or connect it to a standard wall thermostat to keep your home comfortable all the time. The Champlain includes a cast iron heat exchanger above the fire. Natural convective airflow moves air through the vents of the stove to warm your room.

Features

• Works when the power is out — the standing pilot needs no electricity; only the fan needs power

Will it fit?

Stove size

26½" × 28⅞" × 21⅜" (W × H × D)

Flue collar

4" × 6⅝"

In front of a masonry fireplace

• Approved — rear vent: stands in front and elbows into the liner
• Fireplace opening taller than 30¼" (top of the rear pipe)
• Mantel at least 45" above the hearth

Clearance to walls

3" behind (flat wall) · 2" beside · 4" from each wall in a corner

Floor protection

0" in front of the door, 0" each side

From the manufacturer's documentation (page 5). We confirm every measurement on the site visit before anything is ordered.

Specifications

Heat output

35,000 BTU/hr (turns down to 21,000)

Heating area

up to 1,800 sq ft (manufacturer's rating)

Documents

• 📄 Champlain III 8303 Owner's & Installation Manual
