Clydesdale

About the Clydesdale

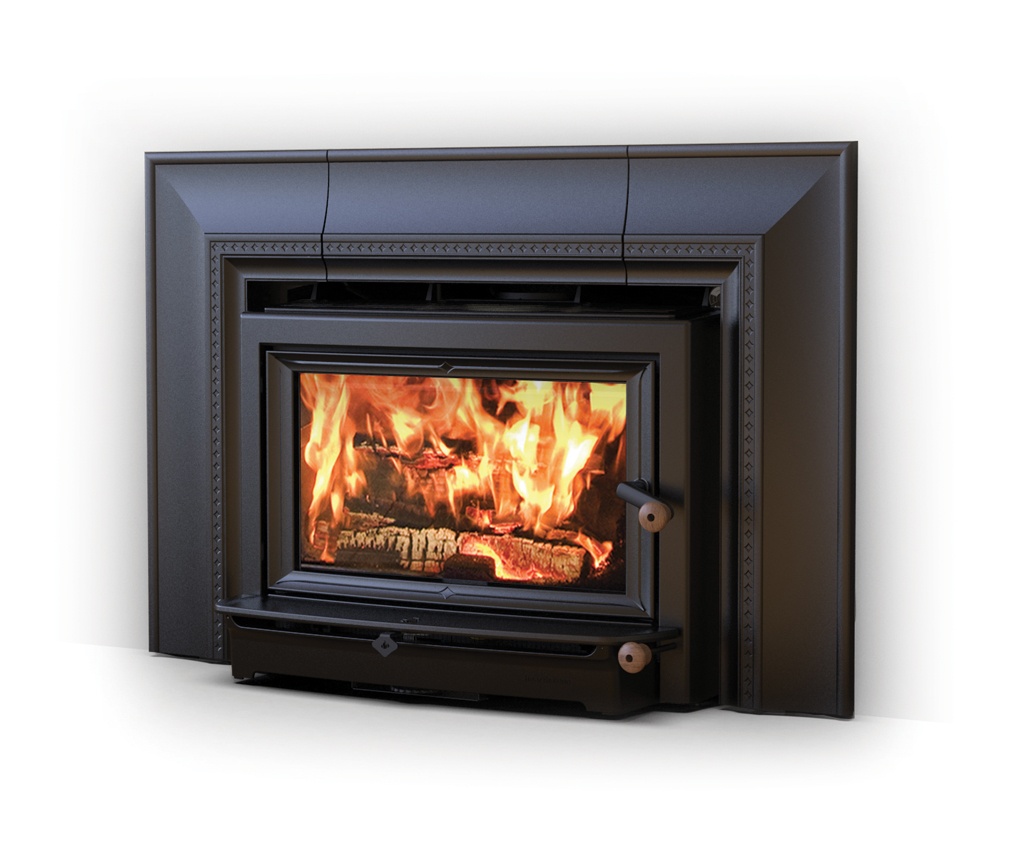

HearthStone’s classic fireplace insert. Full cast iron construction, soapstone lining, and TruHybrid™ technology make this insert top of its class.

Clean-burning, highly efficient, and easy to operate, the Clydesdale uses our TruHybrid™ technology. Engage the catalyst and turn your stove down for slow and efficient overnight burns. The Clydesdale’s large open window lets you see as much fire as possible. Enjoy the ambiance of a fireplace and the efficiency of HearthStone. Burn up to 24 inch logs in the soapstone lined firebox. Soapstone retains the maximum heat from your fire and radiates steady warmth as your insert burns.

Will it fit?

Minimum fireplace opening

32½" × 23¼" × 13" (W × H × D), 27" across the back

Insert body

31⅜" × 23⅛" × 24¹³⁄₁₆" (W × H × D)

Chimney

6-inch full-length stainless liner (listed, insulated per code) in a lined masonry chimney only; masonry flue 6 round or 8x8; max 30 ft. Not for factory-built fireplaces.

Liner / vent

6"

Heat output

60,000 BTU/hr

Heating area

up to 2,000 sq ft (manufacturer's rating)

Max log length

22"

Firebox size

2.4 cu ft

Burn time

24 hours (HeatLife™)

From the manufacturer's documentation (page 7). We confirm every measurement on the site visit before anything is ordered.

Documents

• 📄 Clydesdale 8492 Sales Sheet (specs & dimensions) (Spec Sheet)
• 📄 Clydesdale II 8492 Owner's & Installation Manual
