Hearthstone · TruHybrid Catalytic Wood Stove

Mansfield

In StockOn Display in Our Ephrata Showroom

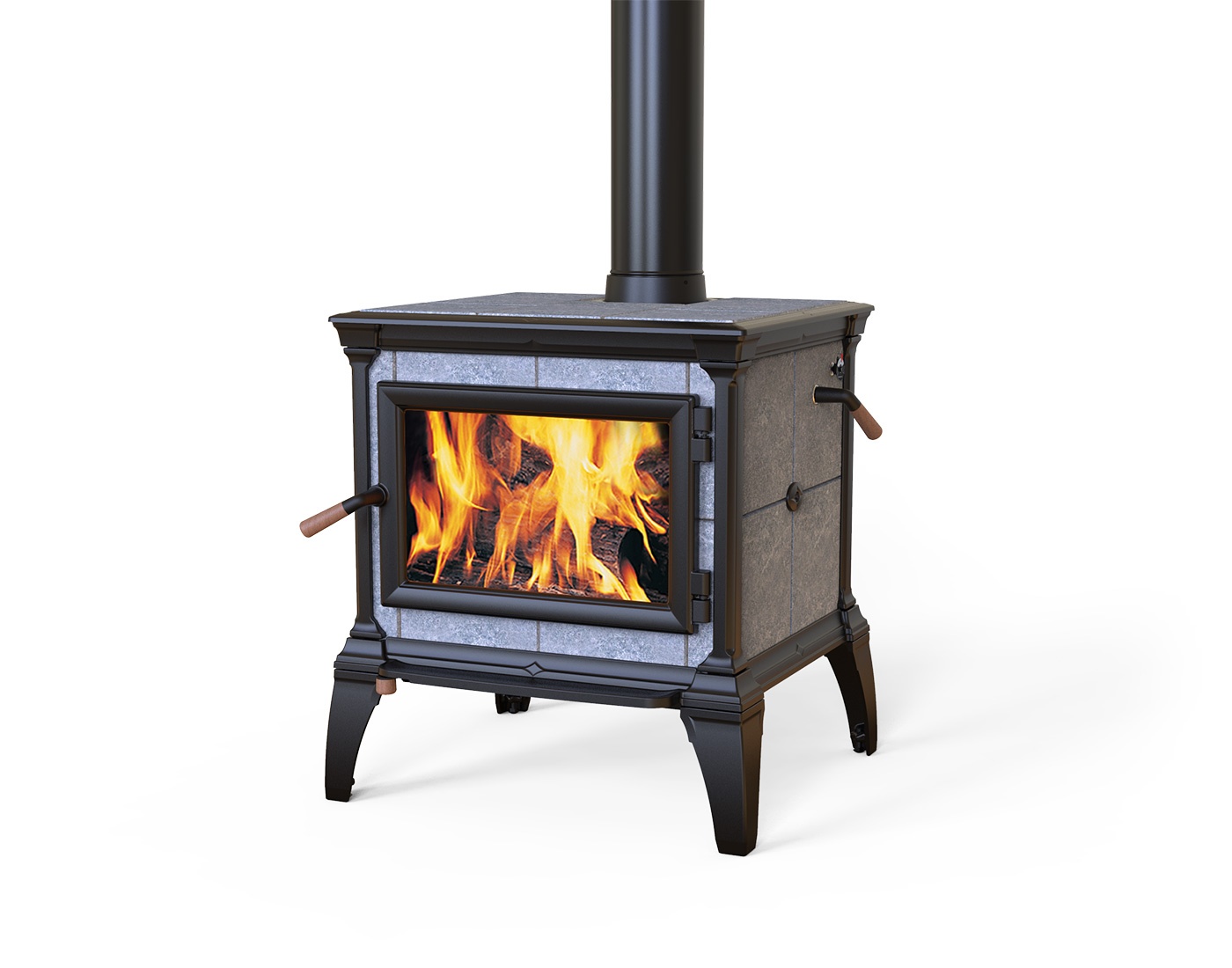

Hearthstone Mansfield
Views:
Product gallery:
Finish
Matte Black
Finish: Matte Black

About the Mansfield

Enjoy the heat from over 230lbs of soapstone. The Mansfield is our largest soapstone stove with TruHybrid™ technology.

The Mansfield burns cleanly and efficiently using primary, secondary, and tertiary combustion. Enjoy clean heat with our TruHybrid™ technology. Our largest soapstone stove has plenty of space for making big fires to heat your great room or your whole house! The Mansfield boasts a 21½” wide by 20½” deep firebox. Over 230lbs of soapstone are used to construct the Mansfield to offer you plenty of long-lasting comfortable heat.

Will it fit?

Stove size
28" × 32" × 27¼" (W × H × D)
Floor protection (hearth pad)
34" wide × 40" deep
Flue collar
6"
In front of a masonry fireplace
  • Approved — rear vent: stands in front and elbows into the liner
  • Fireplace opening taller than 26¾" (top of the rear pipe)
  • Mantel at least 68" above the hearth
Clearance to walls
  • 6" behind (flat wall) · 23" beside · 14" from each wall in a corner — with double-wall pipe and the optional rear heat shield (Rear Heat Shield Kit 90-68210)
  • 19" behind without it
Floor protection
16" in front of the door, 8" each side

From the manufacturer's documentation (page 7). We confirm every measurement on the site visit before anything is ordered.

Specifications

Heat output
80,000 BTU/hr
Heating area
up to 2,500 sq ft (manufacturer's rating)
Max log length
21"
Firebox size
3.2 cu ft
Burn time
Up to 30+ hrs

Documents

Finishrequired▾Selected Option: Matte Black

Optional Accessories▾

Your configuration: 1 item — itemized on your written quote.
Your chimneyInstalled price
Chimney is ready to useIncludes the stove, stove pipe to your chimney, Level 2 inspection, delivery & installation$6,800 – $8,350
Chimney needs a linerIncludes the stove, stainless liner kit (25 or 35 ft), stove pipe, Level 2 inspection, delivery & installation$10,150 – $12,450
No chimney yetIncludes the stove, new insulated chimney through the wall or roof, delivery & installation$13,700 – $15,050
Includes the stove, venting for your chimney situation, delivery and professional installation — priced from our live store system. Every install into an existing chimney includes a Level 2 inspection, and your written quote is tailored to your exact home.
Optional add-on, not included in the range above: a 5-Year Protection Plan — breakdowns and accidents covered, no deductibles. Its price is shown separately on your written quote.
