Mendota · Gas Insert

FV32i FullView

Name: Mendota FV32i FullView
Brand: Mendota

• BTUs: (NG) 31,000 - 10,500 (LP) 31,000 - 12,000

See it in a room:

Product gallery:

About the FV32i FullView

Discover the beauty of a Mendota Hearth gas fireplace for your home.

The FV32i is specifically designed to fit zero-clearance fireboxes, while still providing up to 30% more viewing area than comparably sized inserts. Its tapered back and small flue vents help it fit into tighter places. And with 78% efficiency rating, it’s one of the most efficient gas fireplace inserts.

Features

Works when the power is out — a battery backup keeps the remote and ignition running; only the fan needs electricity
2 stainless steel 304 burners, 14 gauge steel construction inner firebox walls, Seam welded inner firebox, Blowers, Optional Wi-Fi control
remote control w/ BTU output control & fan speed control, top accent light, rear burner shutoff control, electronic
ignition, Neo ceramic glass, air intake damper, P4 78% efficiency, shipping weight 175 lbs., IPI/CPI gas control system
AGA certified gas safety system, ANSI 21.88-2019 compliant.
Used with 3" x 3" co-linear vent kits.
BTU's (NG) 31,000 - 10,500 (LP) 31,000 - 12,000

Will it fit?

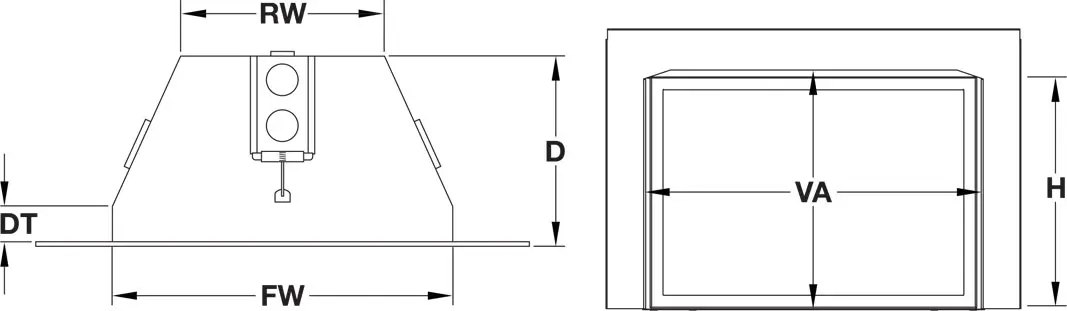

Minimum fireplace opening: 29⅞" × 20⅝" × 17⅝" (W × H × D), 18⅝" across the back
Insert body: 29¹³⁄₁₆" × 20⅜" × 17³⁄₁₆" (W × H × D)
Chimney: Co-linear 3" x 3" flex liners through the existing chimney; 10 ft minimum vent run, 50 ft maximum; 3x3 liners and cap required.
Liner / vent: 3" × 3"
Heat output: 31,000 BTU/hr (turns down to 10,500)
Heating area: ~1,600 sq ft (our estimate from the BTU rating; layout and insulation vary)

From the manufacturer's documentation (page 16). We confirm every measurement on the site visit before anything is ordered.

Documents

Linerrequired▾Selected Option: Flat Panel — Black

▸

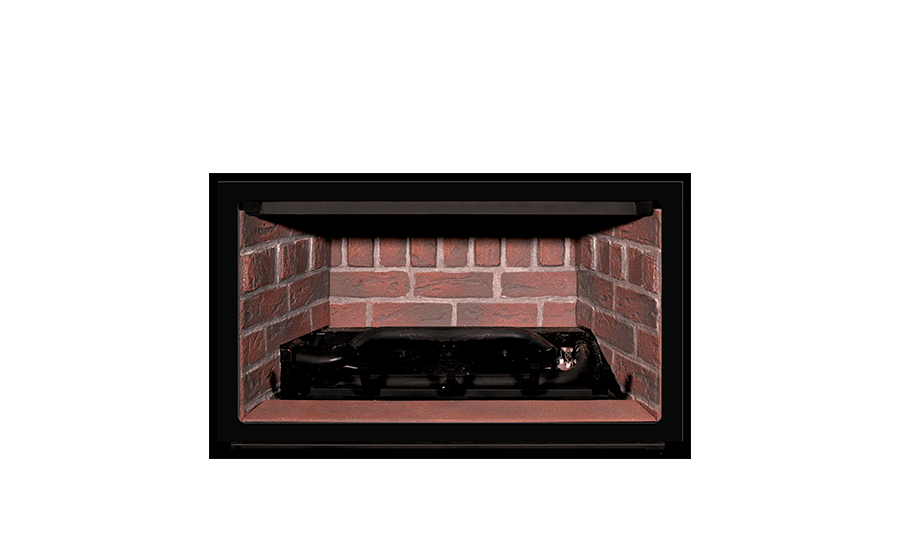

Porcelain Reflective

▸

Brick

▸

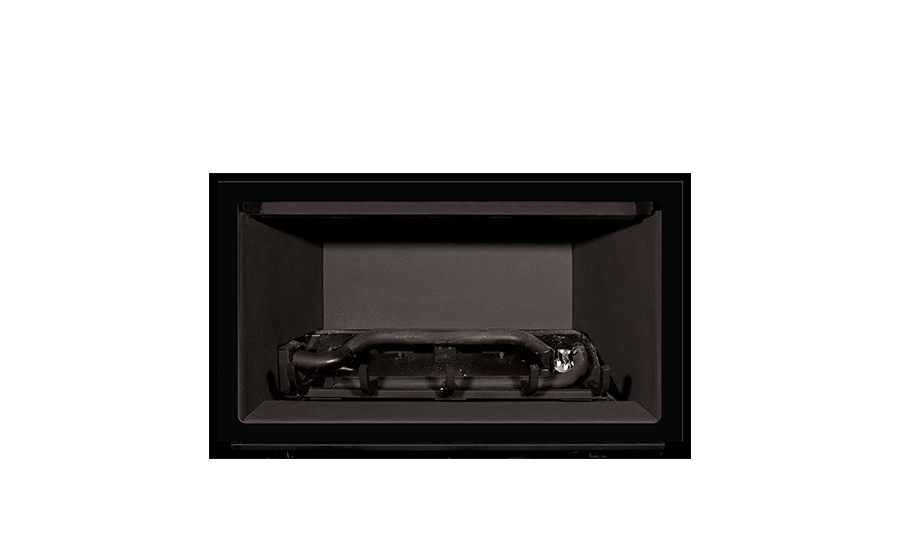

Flat Panel✓ selected

▸

HD Glass Reflective

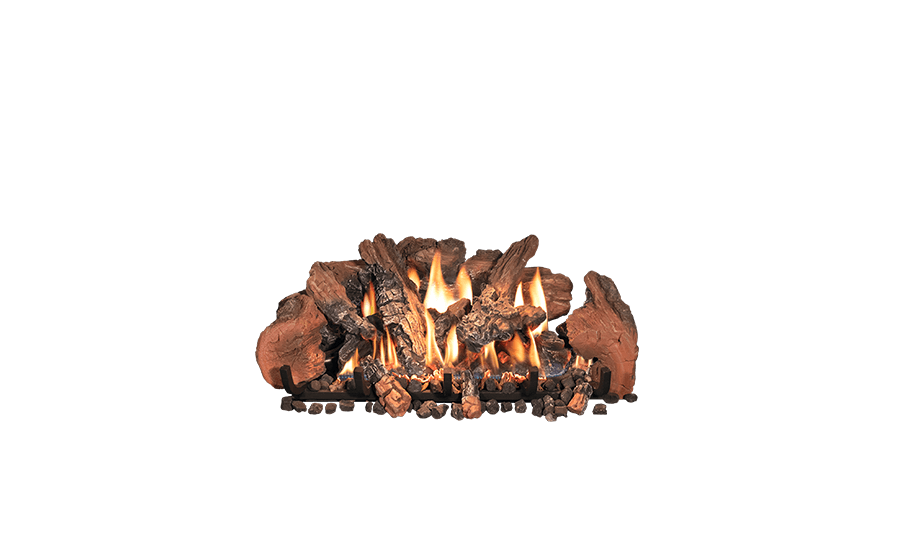

Log/Mediarequired▾Selected Option: Norway Spruce HD

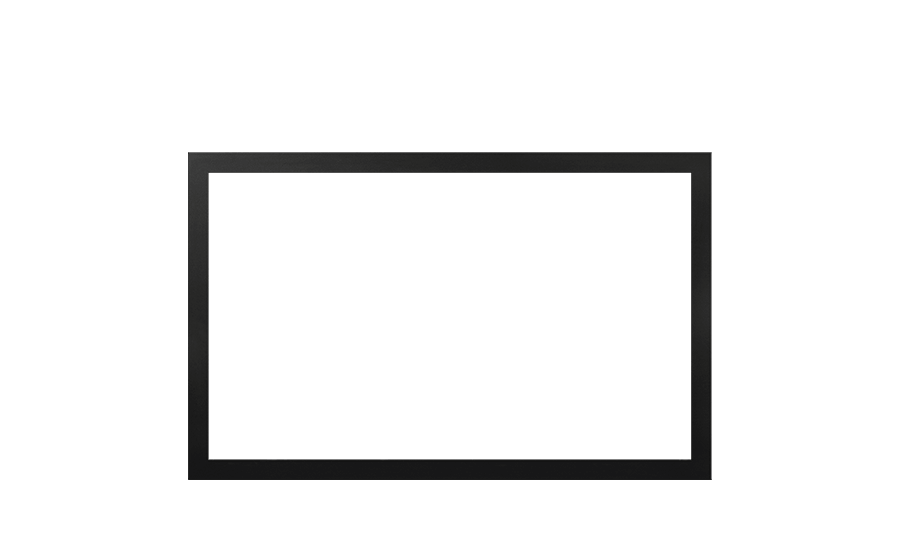

Frontrequired▾Selected Option: Narrow Grace — Black

Surround / Faceplaterequired▾Selected Option: Small - Black - (24" x 36")

Your configuration: 5 items — itemized on your written quote.

Mendota asks its dealers not to publish pricing online. Request your written quote and we'll email the complete installed pricing for this exact configuration.

Optional add-on, not included in the range above: a 5-Year Protection Plan — breakdowns and accidents covered, no deductibles. Its price is shown separately on your written quote.
