Mendota · Gas Insert

FV33i Timberline/Décor

Name: Mendota FV33i Timberline/Décor
Brand: Mendota

See it in a room:

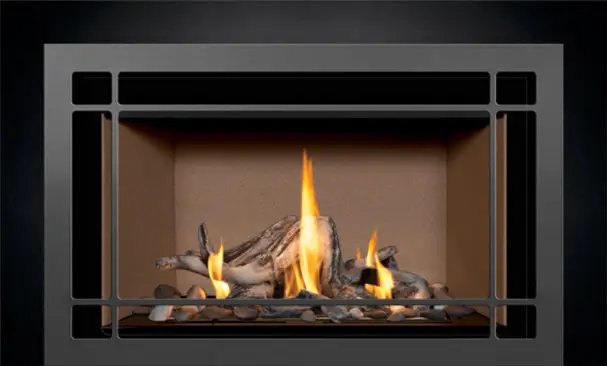

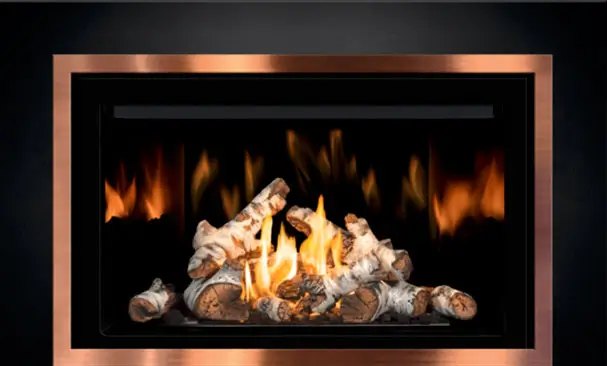

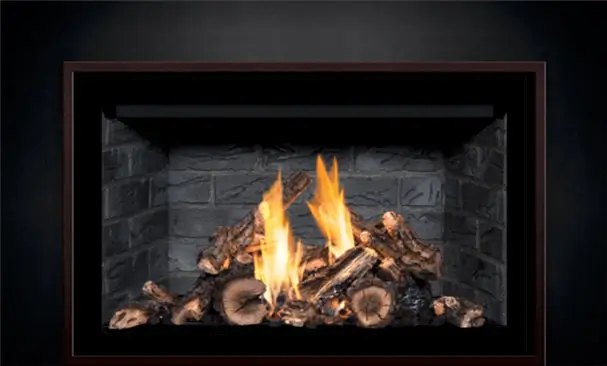

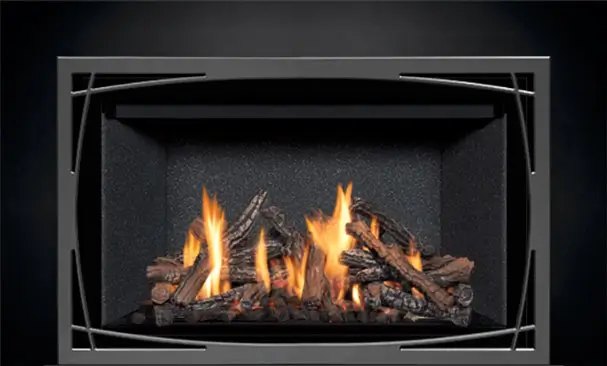

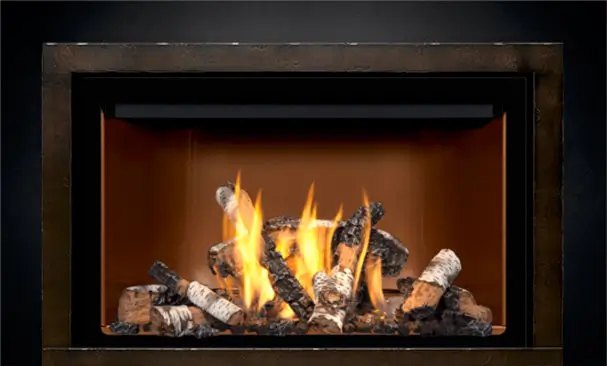

Product gallery:

About the FV33i Timberline/Décor

Discover the beauty of a Mendota Hearth gas fireplace for your home.

The FV33i Timberline gas fireplace insert has a viewing area that’s 30% larger than comparably sized insert designs, in a footprint that fits comfortably in smaller fireplace openings. Choose from five rugged, handcrafted log types such as oak or driftwood.

Features

Works when the power is out — a battery backup keeps the remote and ignition running; only the fan needs electricity
1 stainless steel 304 plaque burner, 14 gauge steel construction inner firebox walls, Seam welded inner firebox, Blowers, Optional Wi-Fi control
remote control w/ BTU output control & fan speed control, top accent light, electronic ignition, Neo ceramic glass, air
intake damper, P4 73.36 efficiency, shipping weight 175 lbs., IPI/CPI gas control system, AGA certified gas safety system
ANSI 21.88-2019 compliant. Used with 4" x 3" co-linear vent kits.
BTU's (NG) 25,000 - 13,500 (LP) 25,000 - 20,800

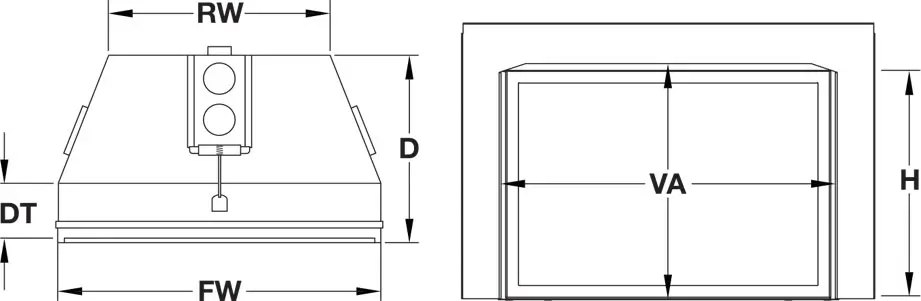

Will it fit?

Minimum fireplace opening: 29⅝" × 19" × 17⅝" (W × H × D), 23¼" across the back
Insert body: 29" × 19⅞" × 17½" (W × H × D)
Chimney: Co-linear 4" exhaust / 3" intake flex liners through the existing chimney
10 ft minimum vent run, 55 ft maximum
Approved vent cap required.
Liner / vent: 4" × 3"

From the manufacturer's documentation (page 17). We confirm every measurement on the site visit before anything is ordered.

Specifications

Heat output: (NG) 25,000 - 13,500 (LP) 25,000 - 20,800
Heating area: ~1,300 sq ft (our estimate from the BTU rating; layout and insulation vary)

Documents

Linerrequired▾Selected Option: Flat Panel — Black

▸

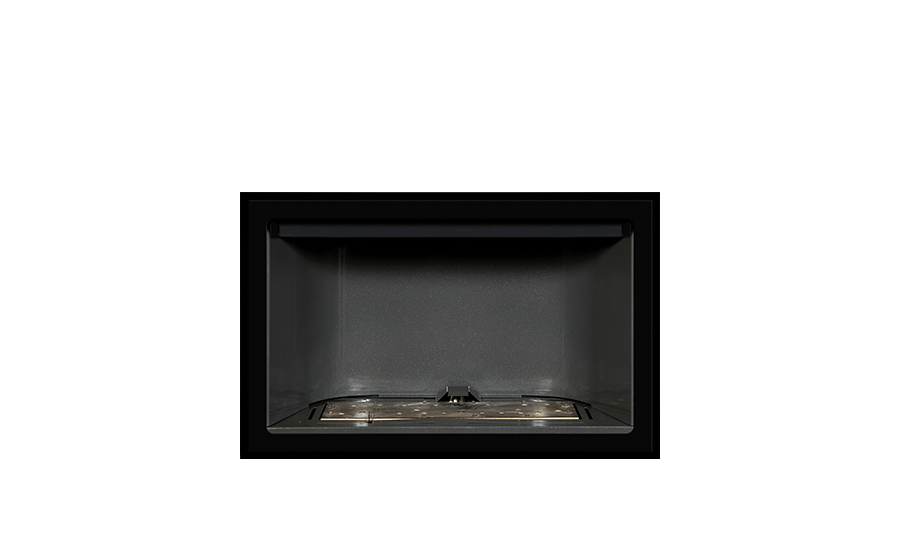

Porcelain Reflective

▸

Brick

▸

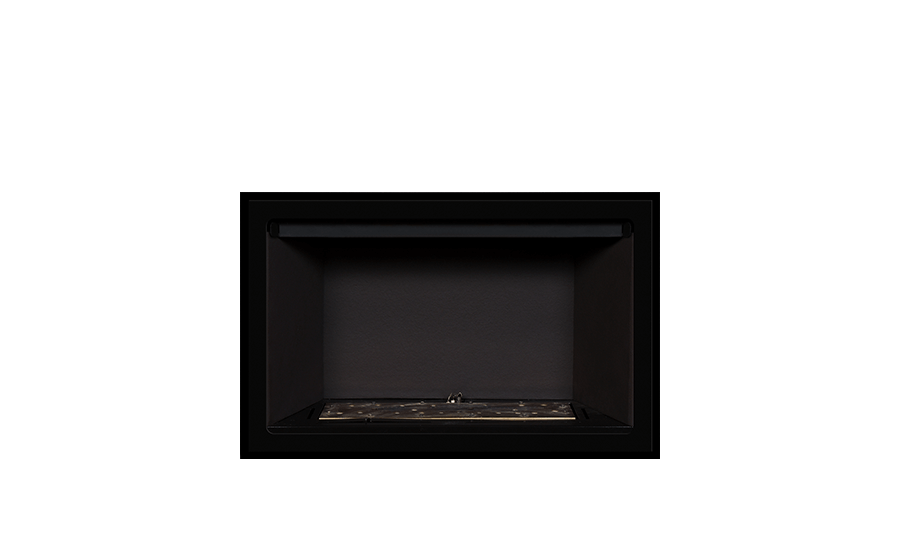

Flat Panel✓ selected

▸

HD Glass Reflective

Log/Mediarequired▾Selected Option: White Tumbled Marble

Frontrequired▾Selected Option: Narrow Grace — Black

Surround / Faceplaterequired▾Selected Option: Small - Black - (24" x 36")

Your configuration: 5 items — itemized on your written quote.

Mendota asks its dealers not to publish pricing online. Request your written quote and we'll email the complete installed pricing for this exact configuration.

Optional add-on, not included in the range above: a 5-Year Protection Plan — breakdowns and accidents covered, no deductibles. Its price is shown separately on your written quote.

Questions? Text us · Call (717) 733-4973

Built to order — get exact pricing

Choose Options

Protect it

Every written quote includes an optional 5-Year Protection Plan — mechanical breakdown, accidental damage, and power surge covered with no deductibles, unlimited covered repairs, and in-home service by our own technicians.

How the plan works →
