Mendota · Gas Insert

FV33i FireIn

Name: Mendota FV33i FireIn
Brand: Mendota

Burning on Display in Our Ephrata Showroom

See it in a room:

Product gallery:

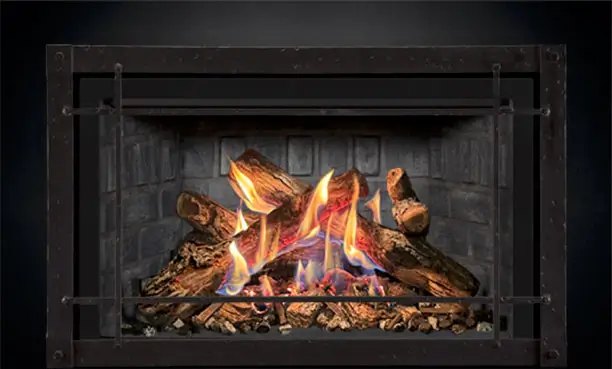

About the FV33i FireIn

Discover the beauty of a Mendota Hearth gas fireplace for your home.

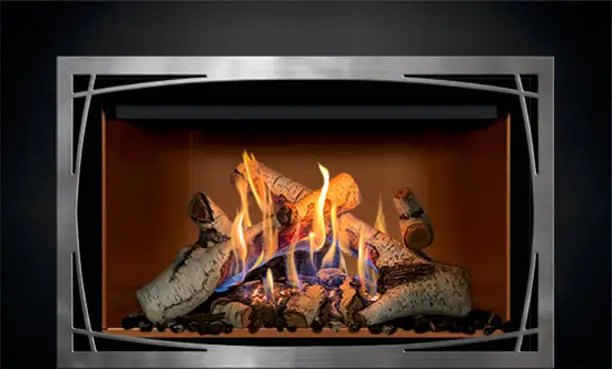

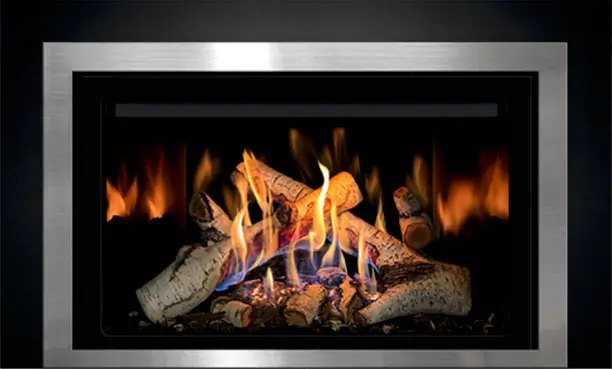

The FV33i FireIn™ gas fireplace insert features a burner that’s wrapped inside the birch or white oak logs. It creates a more realistic fire that burns around and through the log set. With a 30% larger viewing area than comparably sized insert designs, the flames are showcased in all their beauty.

Features

Works when the power is out — a battery backup keeps the remote and ignition running; only the fan needs electricity
Front ceramic plaque burner, 304 stainless steel log burners, 14 gauge steel construction inner firebox walls, Optional Wi-Fi control
Seam welded inner firebox, Blowers, remote control w/ BTU output control & fan speed control, top accent light
rear burner shutoff control, electronic ignition, Neo ceramic glass, air intake damper, P4 78% efficiency
shipping weight 175 lbs., IPI/CPI gas control system, AGA certified gas safety system, ANSI 21.88-2019 compliant.
Used with 3" x 3" co-linear vent kits.
BTU's (NG) 29,000 - 8,400 (LP) 29,000 - 9,100

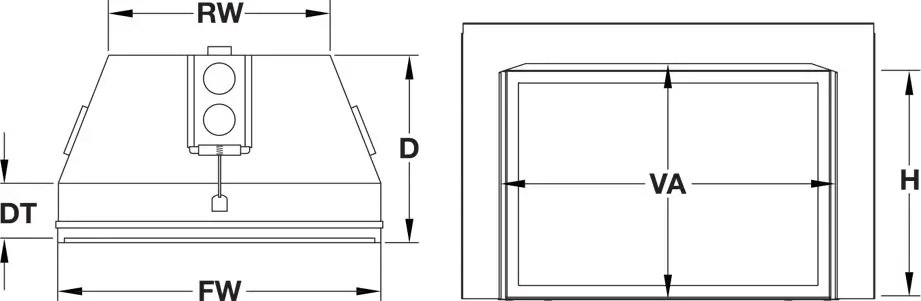

Will it fit?

Minimum fireplace opening: 29⅝" × 19" × 17⅝" (W × H × D), 20⅞" across the back
Insert body: 29⅝" × 18⅛" × — (W × H × D)
Chimney: Co-linear 3" x 3" flex liners through the existing chimney
10 ft minimum vent run, 50 ft maximum
3x3 liners and cap required.
Liner / vent: 3" × 3"

From the manufacturer's documentation (page 17). We confirm every measurement on the site visit before anything is ordered.

Specifications

Heat output: (NG) 29,000 - 8,400 (LP) 29,000 - 9,100
Heating area: ~1,500 sq ft (our estimate from the BTU rating; layout and insulation vary)

Documents

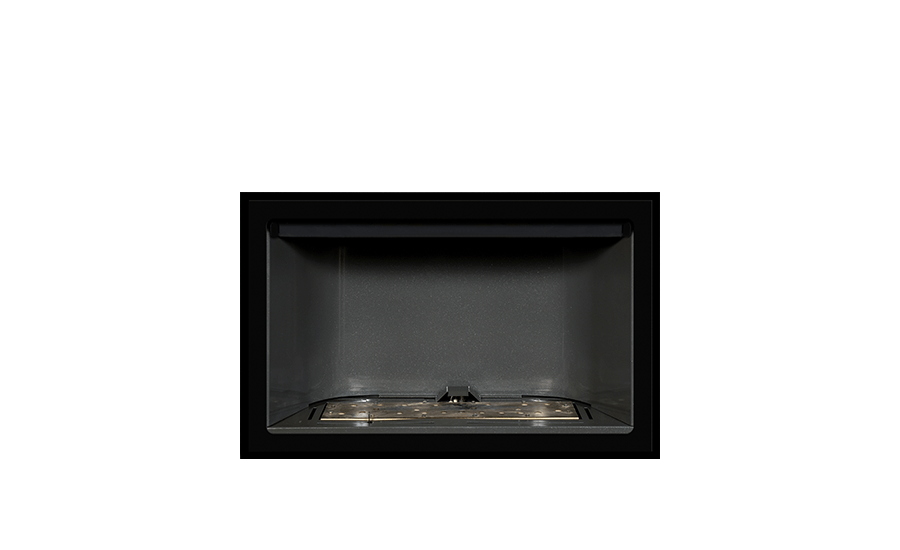

Linerrequired▾Selected Option: Flat Panel — Black

▸

Porcelain Reflective

▸

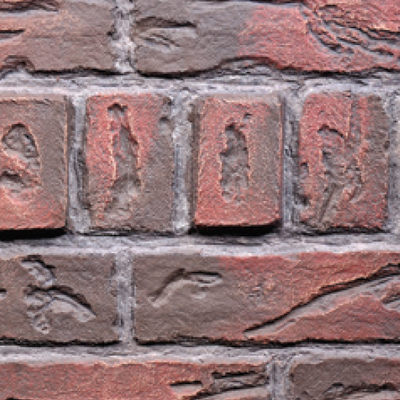

Brick

▸

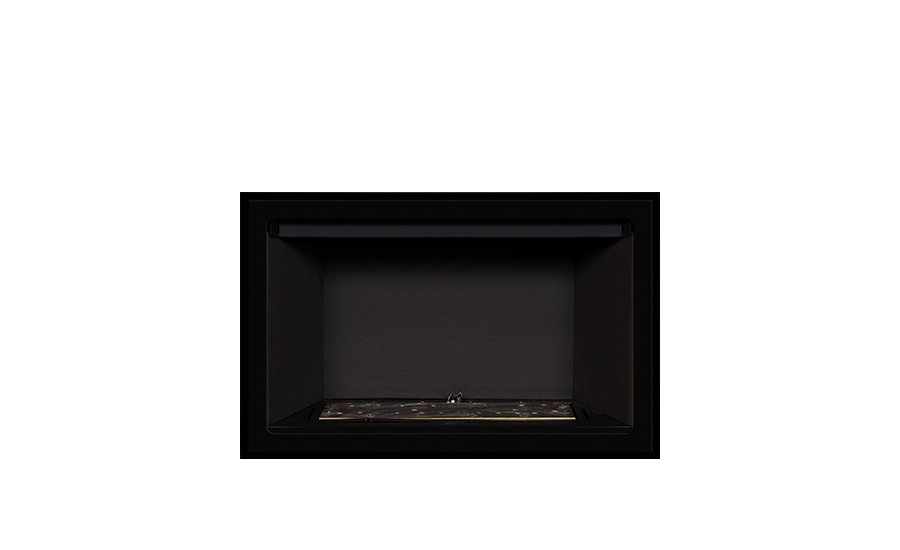

Flat Panel✓ selected

▸

HD Glass Reflective

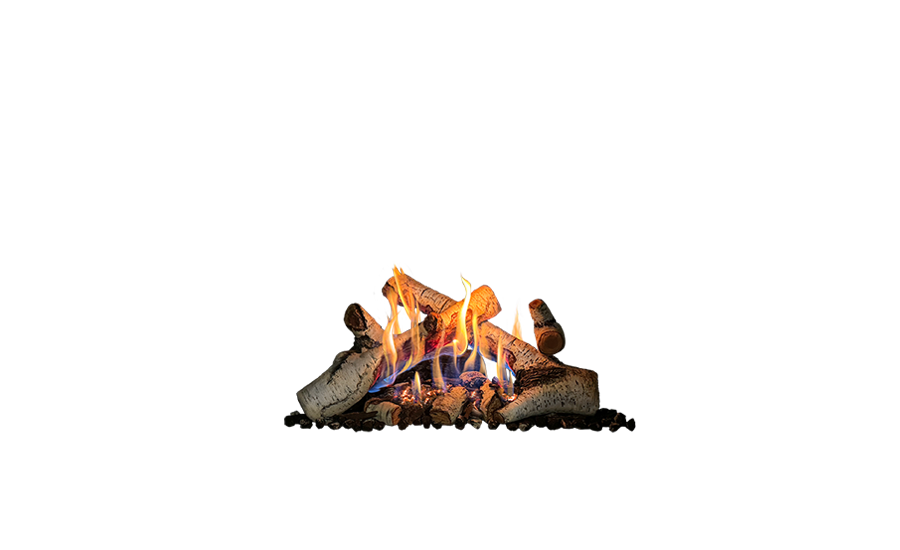

Log/Mediarequired▾Selected Option: FireIn Birch HD

Frontrequired▾Selected Option: Narrow Grace — Black

Surround / Faceplaterequired▾Selected Option: Small - Black - (24" x 36")

Your configuration: 5 items — itemized on your written quote.

Mendota asks its dealers not to publish pricing online. Request your written quote and we'll email the complete installed pricing for this exact configuration.

Optional add-on, not included in the range above: a 5-Year Protection Plan — breakdowns and accidents covered, no deductibles. Its price is shown separately on your written quote.

Questions? Text us · Call (717) 733-4973

Built to order — get exact pricing

Choose Options

Protect it

Every written quote includes an optional 5-Year Protection Plan — mechanical breakdown, accidental damage, and power surge covered with no deductibles, unlimited covered repairs, and in-home service by our own technicians.

How the plan works →

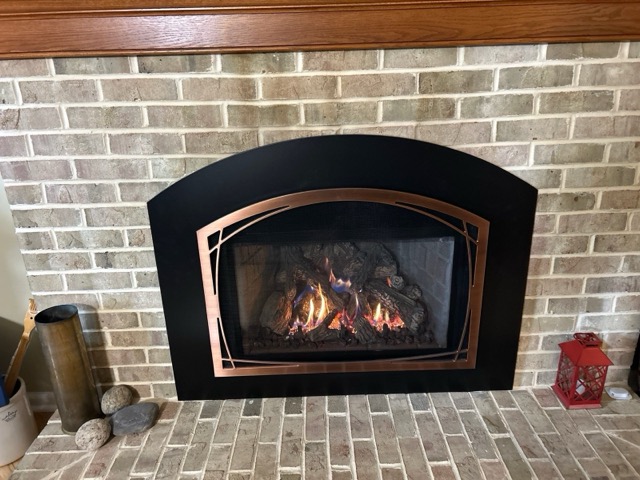

Real installs by Bowman’s
