Mendota · Gas Insert
FV33i FullView
• BTUs: (NG) 31,000 - 10,000 (LP) 31,000 - 13,000
See it in a room:

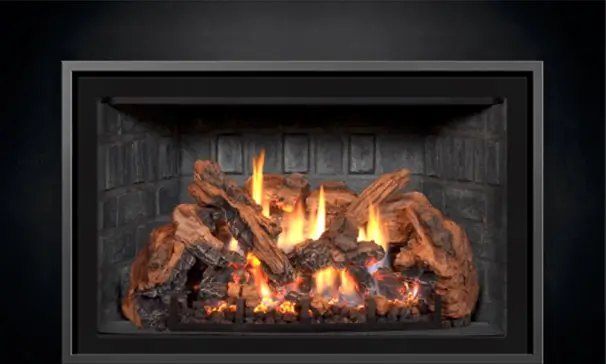

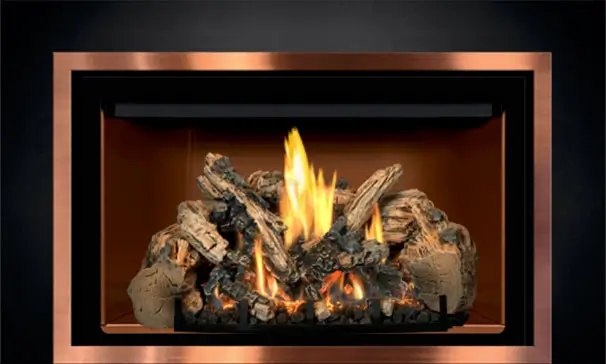

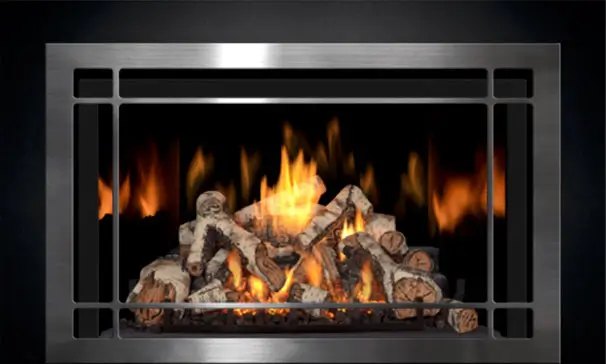

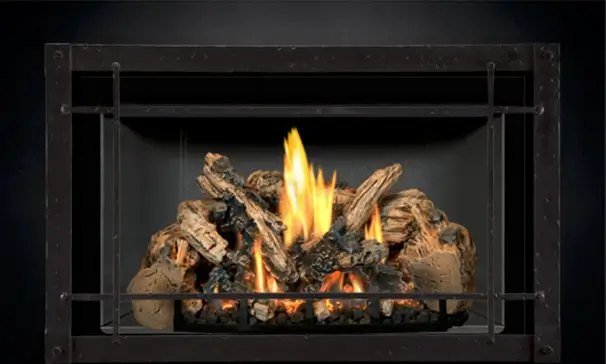

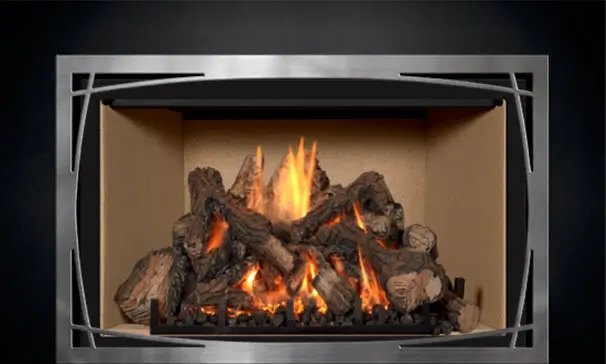

Product gallery:
About the FV33i FullView
Discover the beauty of a Mendota Hearth gas fireplace for your home.
Perfectly sized to fit smaller fireplace openings, the FV33i Traditional gas fireplace insert still provides a viewing area that’s 30% larger than comparably sized insert designs. The FV33i is fully customizable with your choice of fronts, liners and log sets to match your unique design sense.
Features
- Works when the power is out — a battery backup keeps the remote and ignition running; only the fan needs electricity
- 2 stainless steel 304 burners, 14 gauge steel construction inner firebox walls, Seam welded inner firebox, Blowers, Optional Wi-Fi control
- remote control w/ BTU output control & fan speed control, top accent light, rear burner shutoff control, electronic
- ignition, Neo ceramic glass, air intake damper, P4 70.28 efficiency, shipping weight 175 lbs., IPI/CPI gas control system
- AGA certified gas safety system, ANSI 21.88-2019 compliant. Used with 4" x 3" co-linear vent kits.
- BTU's (NG) 31,000 - 10,000 (LP) 31,000 - 13,000

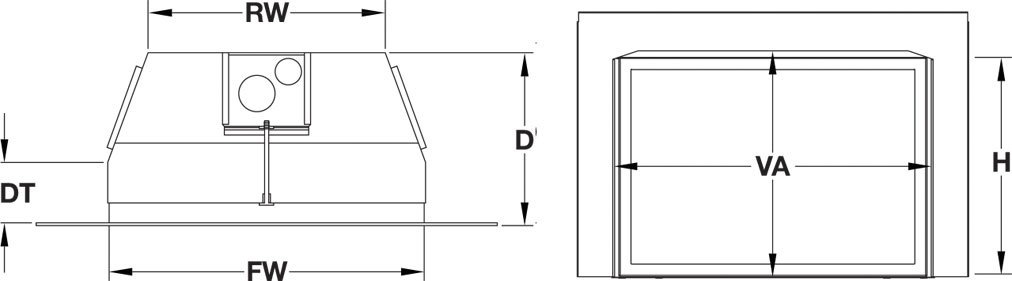

Will it fit?
- Minimum fireplace opening
- 29⅝" × 19" × 17⅝" (W × H × D), 23¼" across the back
- Insert body
- 29" × 19⅞" × 17½" (W × H × D)
- Chimney
- Co-linear 4" exhaust / 3" intake flex liners through the existing chimney; 10 ft minimum vent run, 55 ft maximum; approved vent cap required.
- Liner / vent
- 4" × 3"
- Heat output
- 31,000 BTU/hr (turns down to 10,000)
- Heating area
- ~1,600 sq ft (our estimate from the BTU rating; layout and insulation vary)
From the manufacturer's documentation (page 17). We confirm every measurement on the site visit before anything is ordered.
Documents
Fuel TypeNatural Gas▾

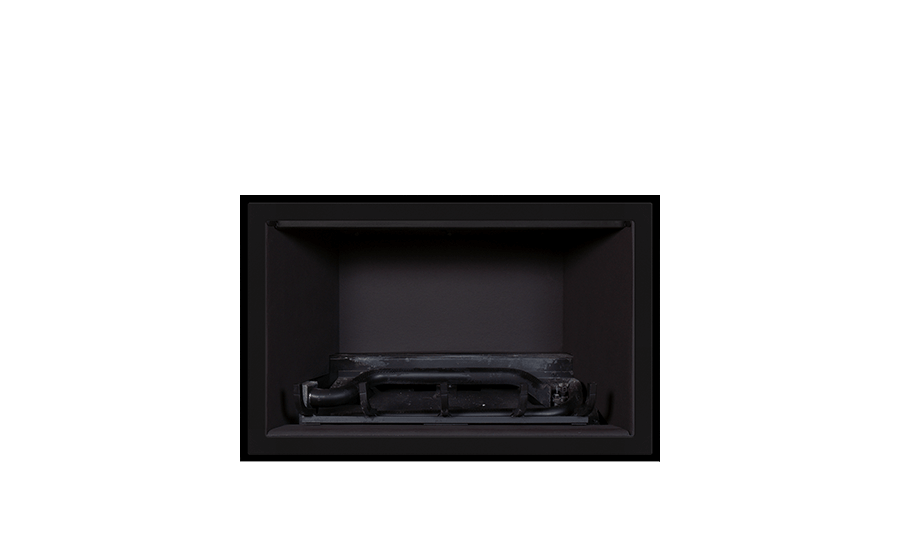

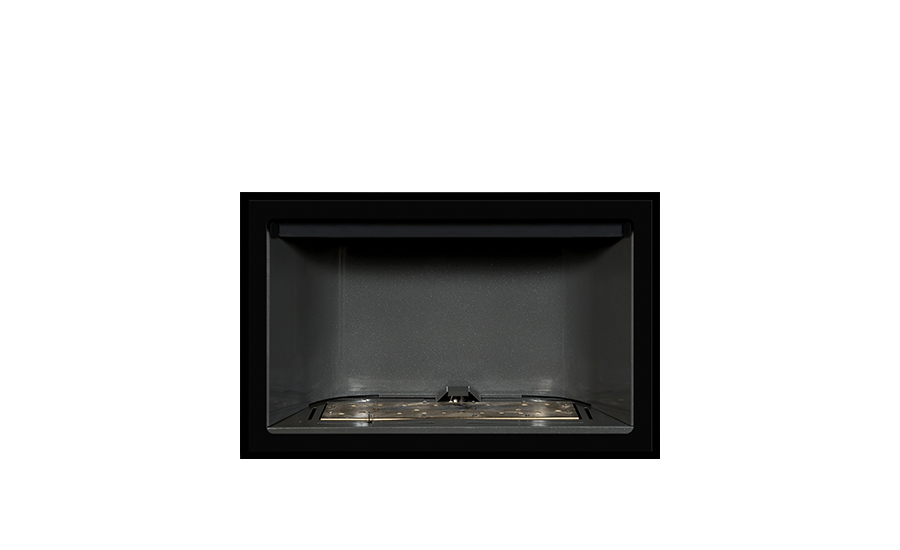

LinerFlat Panel — Blackrequired▾

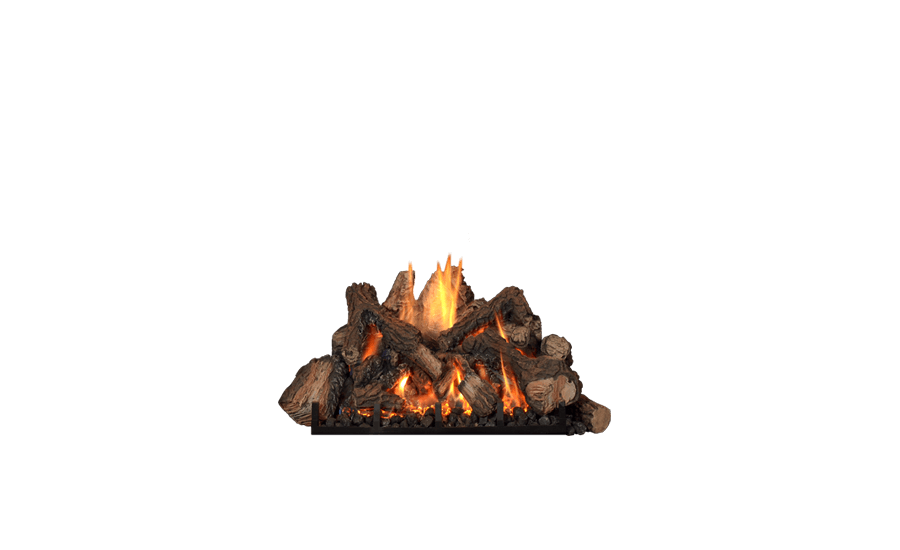

Log/MediaPremium Fiber Oakrequired▾
FrontNarrow Grace — Blackrequired▾
Surround / FaceplateSmall - Black - (24" x 36")required▾
AccentsNone▾
Optional Accessories▾
Your configuration: 5 items — itemized on your written quote.
Mendota asks its dealers not to publish pricing online. Request your written quote and we'll email the complete installed pricing for this exact configuration.
Optional add-on, not included in the range above: a 5-Year Protection Plan — breakdowns and accidents covered, no deductibles. Its price is shown separately on your written quote.
Questions? Text us · Call (717) 733-4973
Built to order — get exact pricing
Protect it
Every written quote includes an optional 5-Year Protection Plan — mechanical breakdown, accidental damage, and power surge covered with no deductibles, unlimited covered repairs, and in-home service by our own technicians.
