FV41 Arch

About the FV41 Arch

Discover the beauty of a Mendota Hearth gas fireplace for your home.

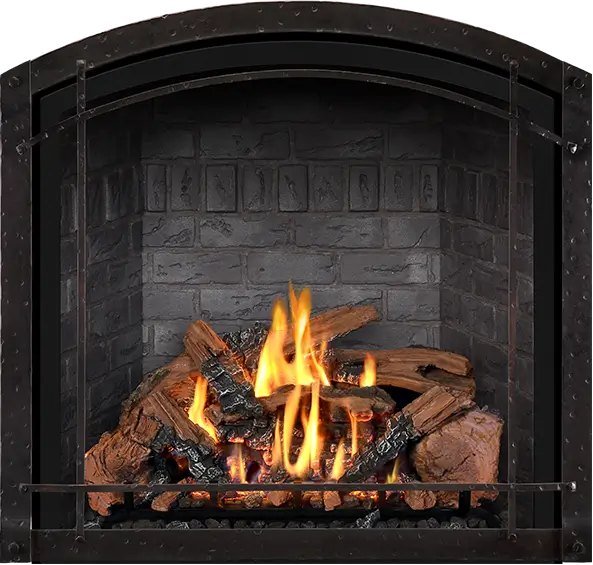

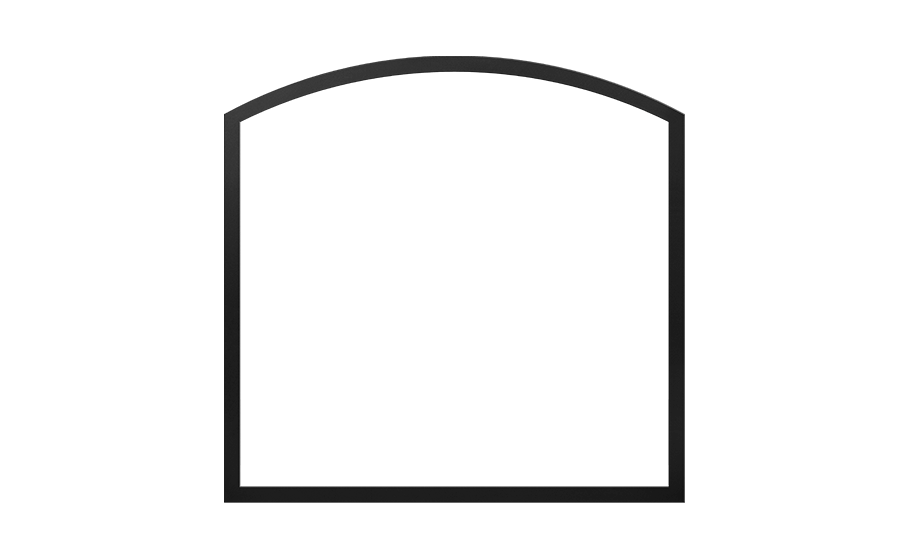

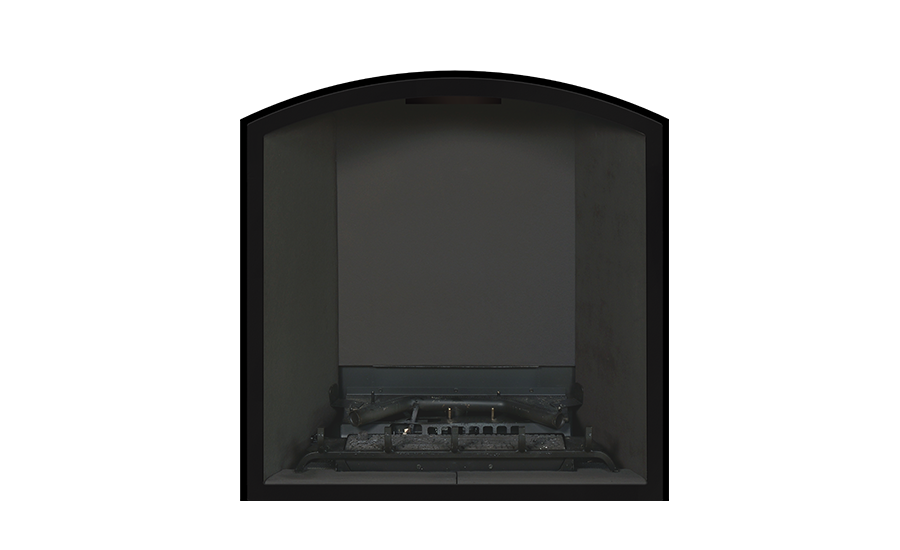

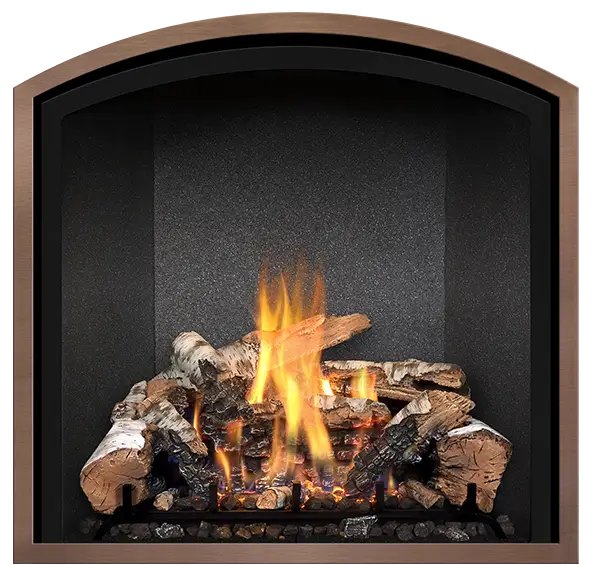

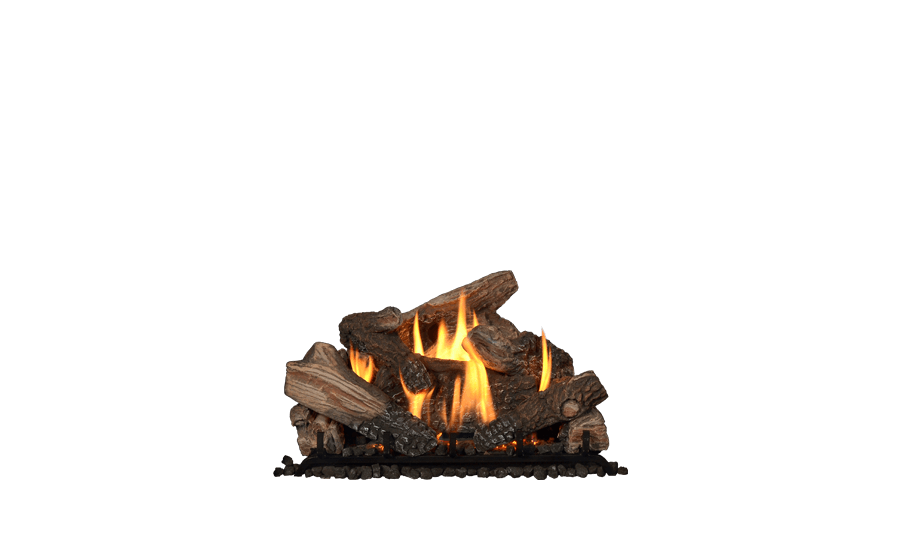

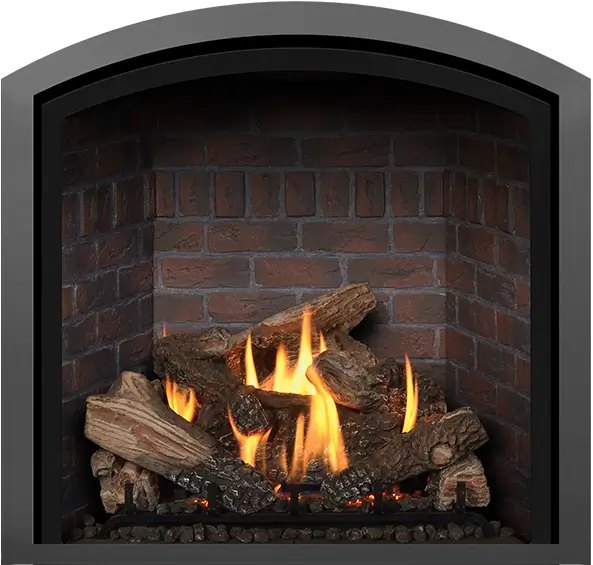

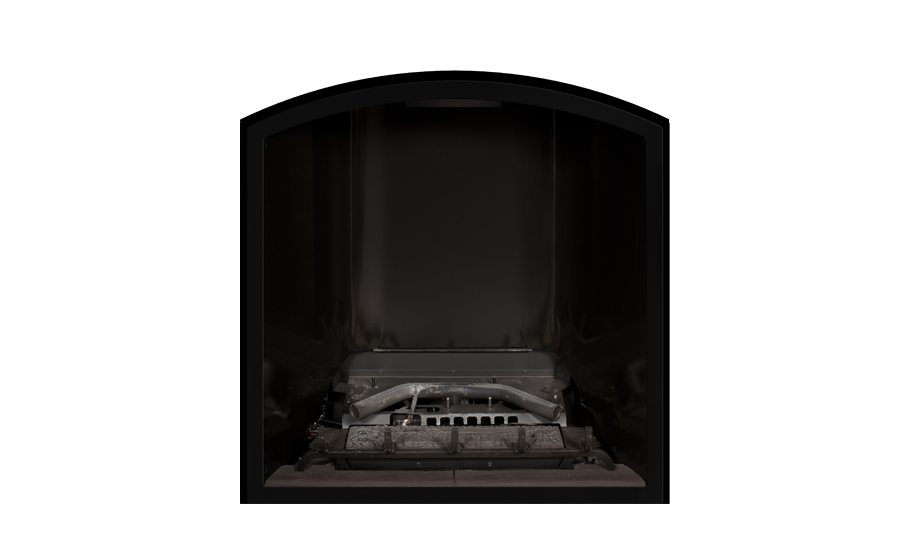

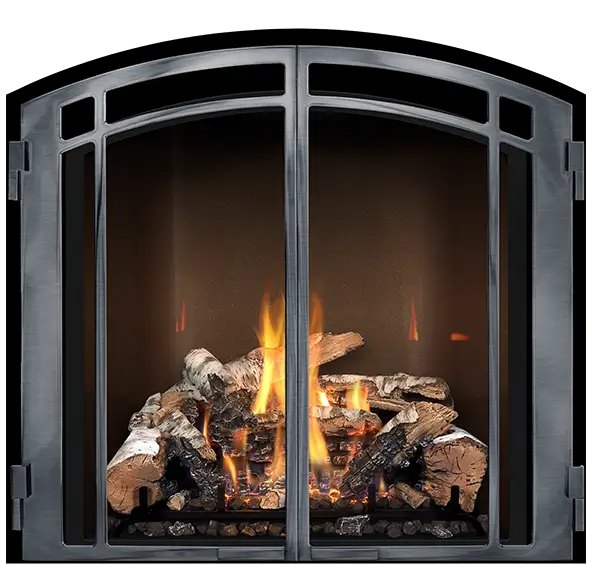

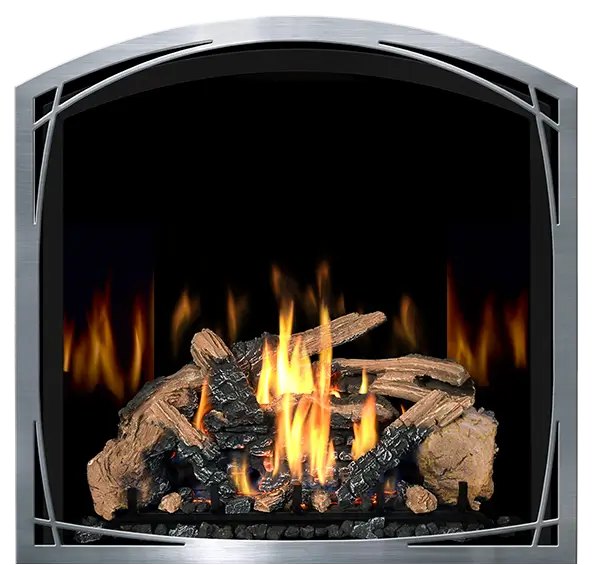

The FV41 Classic Arch gas fireplace in a comfortable size that suits almost any room. Satisfy your desire for style with a complete collection of fronts, doors and interior linings that fit your home’s style. Find inspiration below on how to customize your FV41 to your tastes. Those are some of the most popular styles, but that’s just a starting point.

Features

• Works when the power is out — a battery backup keeps the remote and ignition running; only the fan needs electricity
• Front ceramic plaque burner, 304 stainless steel rear burner, 14 gauge steel construction inner firebox walls, Optional Wi-Fi control
• Seam welded inner firebox, Blowers, remote control w/ BTU output control & fan speed control, top accent light, rear burner
• shutoff control, electronic ignition, Neo ceramic glass, Exhaust damper, P4 76.19 efficiency, shipping weight 350 lbs., uses
• 5 x 8 Direct Vent Pipe, IPI/CPI gas control system, AGA certified gas safety system, ANSI 21.88-2019 compliant
• BTU's: 40,000 - 11,622 (NG) 40,000 - 15,152 (LP)

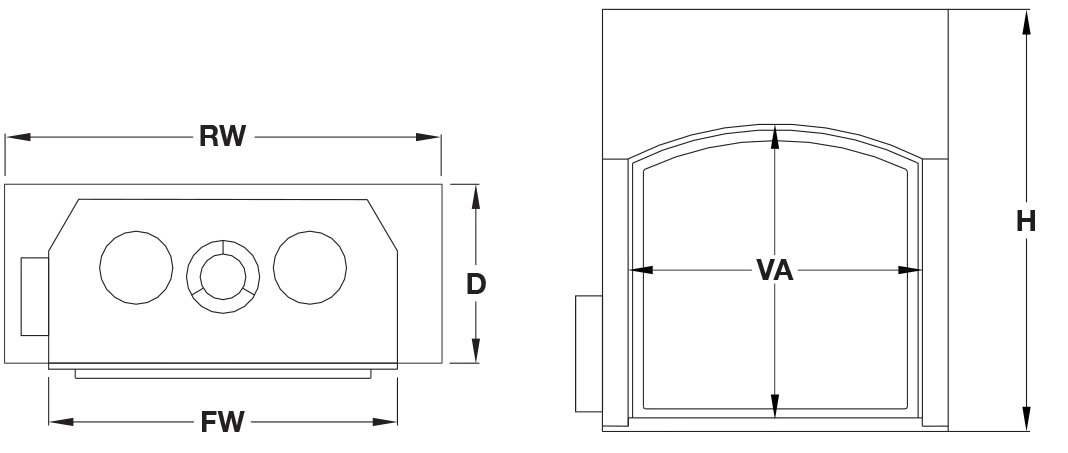

Will it fit?

Framing (rough opening)

45" × 50½" × 19½" (W × H × D)

Unit size

42⅛" × 46¹¹⁄₁₆" × 19³⁄₁₆" (W × H × D)

Vent pipe

5" × 8"

From the manufacturer's documentation (page 15). We confirm every measurement on the site visit before anything is ordered.

Specifications

Heat output

40,000 - 11,622 (NG) 40,000 - 15,152 (LP)

Heating area

~2,000 sq ft (our estimate from the BTU rating; layout and insulation vary)

Documents

• 📄 FV41 Arch Spec Sheet
• 📄 FV41 Arch Installation Manual
• 📄 FV41 Arch CAD Drawing
