ML48 Timberline/Décor
About the ML48 Timberline/Décor
Discover the beauty of a Mendota Hearth gas fireplace for your home.
Customize your ML48 to your tastes with the inspiration below. Those are some of the most popular combinations, but that’s just a starting point. You have a blank canvas to design yours. Almost unlimited combinations of fronts, liners and modern media are ready to be made into your Mendota gas fireplace. One you’ll cherish season after season.
Features
- Works when the power is out — a battery backup keeps the remote and ignition running; only the fan needs electricity
- 1 stainless steel 304 plaque burner, 14 gauge steel construction inner firebox walls, Seam welded inner firebox, Blowers, Optional Wi-Fi control
- remote control w/ BTU output control & fan speed control, top accent lights, electronic ignition, Neo ceramic glass
- Exhaust damper, P4 66% efficiency, shipping weight 400 lbs., uses 5 x 8 Direct Vent Pipe, IPI/CPI gas control system, AGA
- certified gas safety system, ANSI 21.88-2019 compliant
- BTU's (NG) 41,000 - 27,900 (LP) 41,000 - 33,400
Will it fit?
- Framing (rough opening)
- 62" × 44½" × 19½" (W × H × D)
- Unit size
- 52¾" × 44" × — (W × H × D)
- Vent pipe
- 5" × 8"
- Heat output
- 41,000 BTU/hr (turns down to 27,900)
- Heating area
- ~2,100 sq ft (our estimate from the BTU rating; layout and insulation vary)
From the manufacturer's documentation (page 15). We confirm every measurement on the site visit before anything is ordered.
Documents
Fuel TypeNatural Gas▾

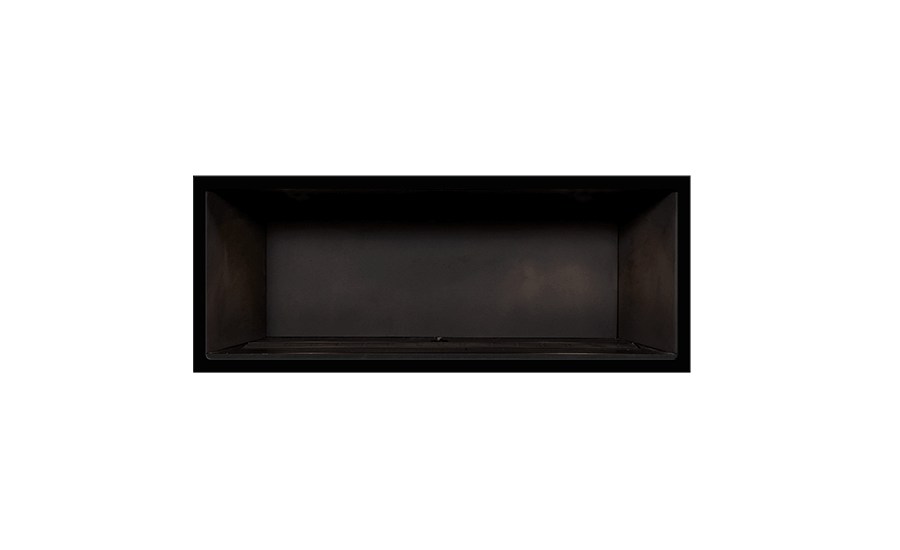

LinerFlat Panel — Blackrequired▾

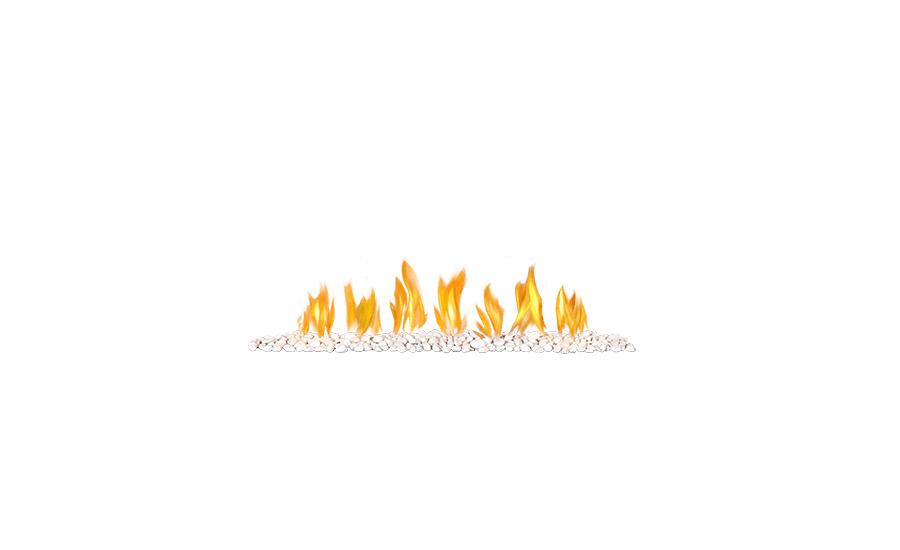

Log/MediaWhite Tumbled Marblerequired▾
FrontNarrow Grace — Blackrequired▾
AccentsNone▾
Front Guide Kitrequired with front▾
Venting▾
Optional Accessories▾
Protect it
Every written quote includes an optional 5-Year Protection Plan — mechanical breakdown, accidental damage, and power surge covered with no deductibles, unlimited covered repairs, and in-home service by our own technicians.
How the plan works →
