Mendota · Direct Vent Gas Fireplace
ML54 Timberline/Décor
• BTUs: (NG) 41,000 - 27,500 (LP) 41,000 - 33,000• Venting: 5x8" rigid
See it in a room:
Product gallery:
About the ML54 Timberline/Décor
Discover the beauty of a Mendota Hearth gas fireplace for your home.

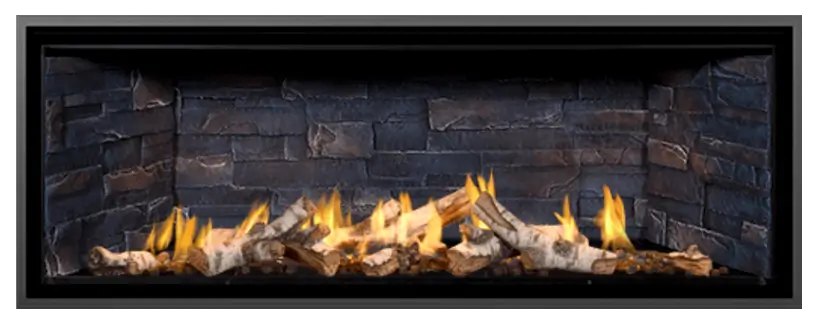

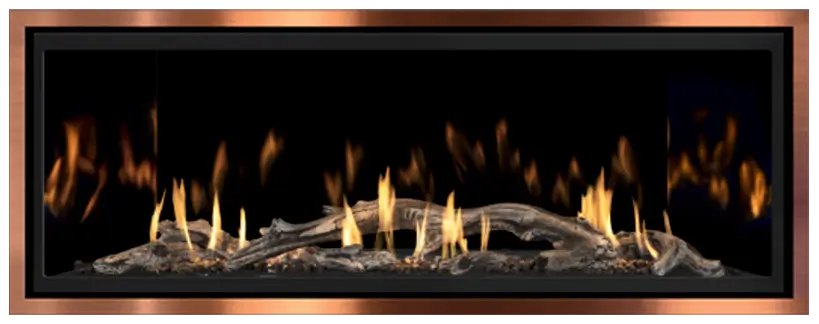

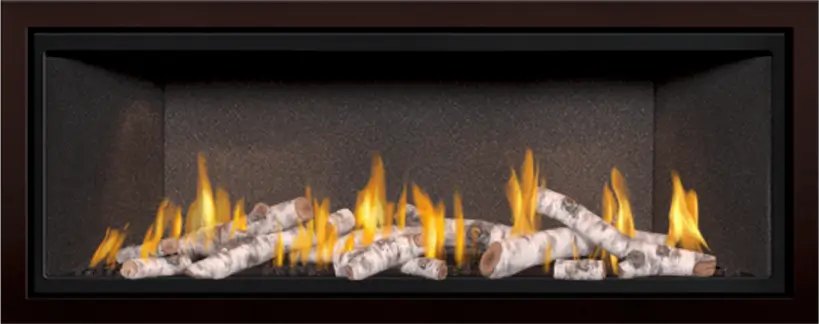

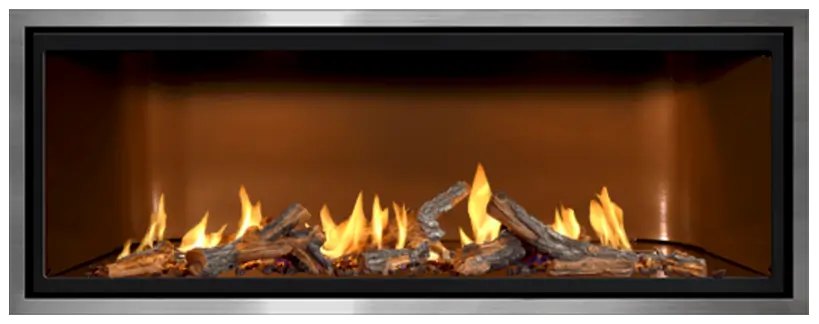

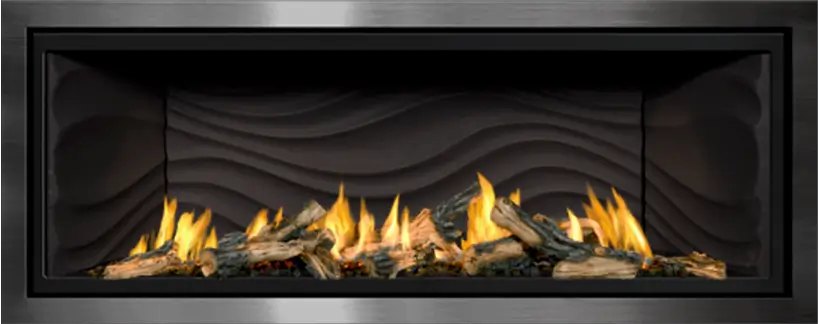

Your ML54 will make a statement with its large viewing area. How will you design yours? A variety of metal fronts, liners for every style and log sets that bring the fire to life. Below are some popular combinations, but that’s just inspiration for you to truly customize your Mendota ML54 gas fireplace just how you want it.
Features
- Works when the power is out — a battery backup keeps the remote and ignition running; only the fan needs electricity
- 1 stainless steel 304 plaque burner, 14 gauge steel construction inner firebox walls, Seam welded inner firebox, Blowers, Optional Wi-Fi control
- remote control w/ BTU output control & fan speed control, top accent lights, electronic ignition, Neo ceramic glass
- Exhaust damper, P4 70% efficiency, shipping weight 380 lbs., uses 5 x 8 Direct Vent Pipe, IPI gas control system, AGA
- certified gas safety system, ANSI 21.88-2019 compliant
- BTU's (NG) 41,000 - 27,500 (LP) 41,000 - 33,000
Will it fit?
- Framing (rough opening)
- 69" × 44½" × 19½" (W × H × D)
- Unit size
- 60" × 43⅞" × — (W × H × D)
- Vent pipe
- 5" × 8"
- Heat output
- 41,000 BTU/hr (turns down to 27,500)
- Heating area
- ~2,100 sq ft (our estimate from the BTU rating; layout and insulation vary)
From the manufacturer's documentation (page 15). We confirm every measurement on the site visit before anything is ordered.
Documents
Fuel TypeNatural Gas▾

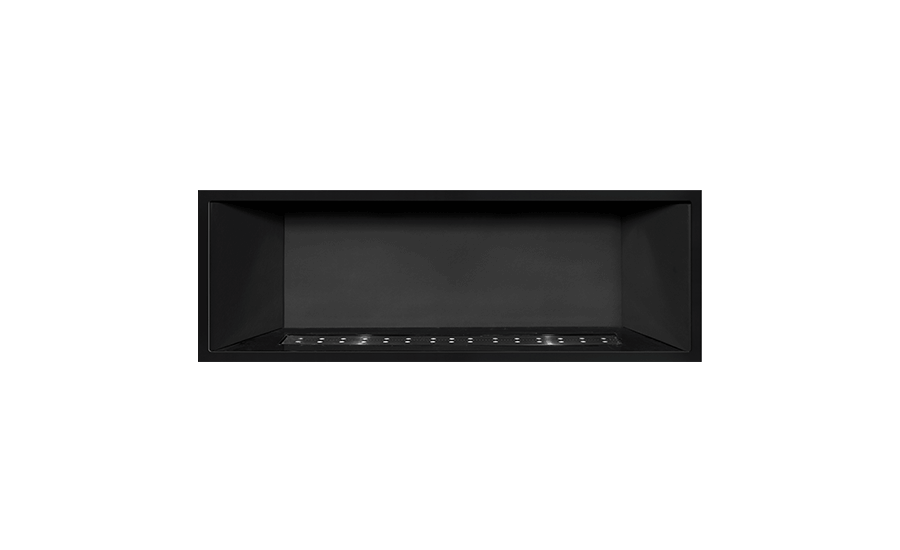

LinerFlat Panel — Blackrequired▾

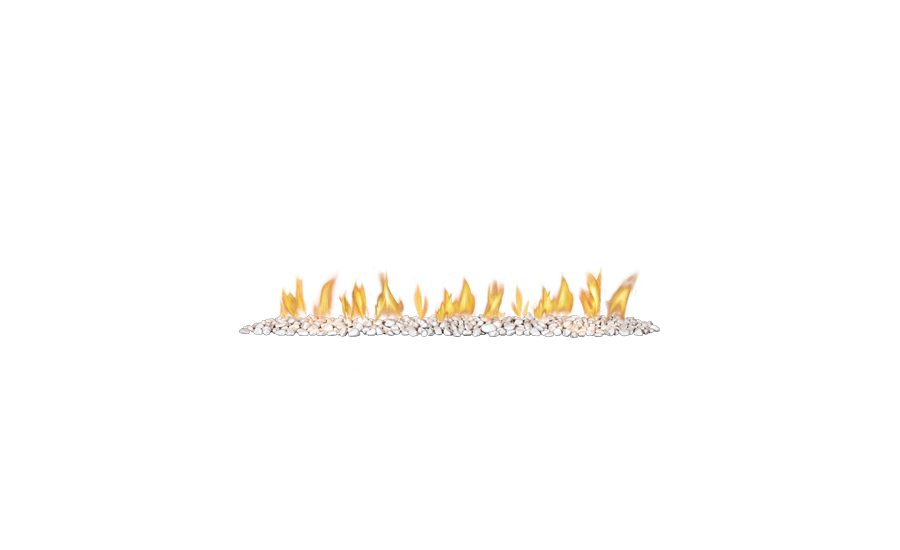

Log/MediaWhite Tumbled Marblerequired▾
FrontNarrow Grace — Blackrequired▾
AccentsNone▾
Front Guide Kitrequired with front▾
Venting▾
Optional Accessories▾
Your configuration: 5 items — itemized on your written quote.
Mendota asks its dealers not to publish pricing online. Request your written quote and we'll email the complete installed pricing for this exact configuration.
Optional add-on, not included in the range above: a 5-Year Protection Plan — breakdowns and accidents covered, no deductibles. Its price is shown separately on your written quote.
