ML72 Timberline/Décor
About the ML72 Timberline/Décor
Discover the beauty of a Mendota Hearth gas fireplace for your home.

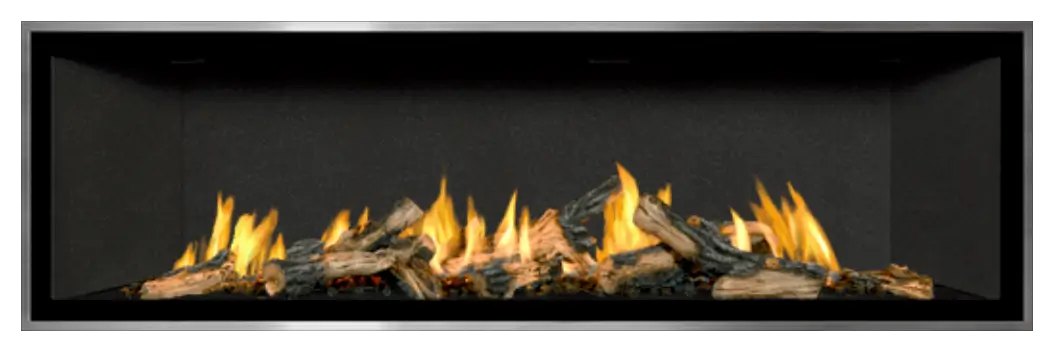

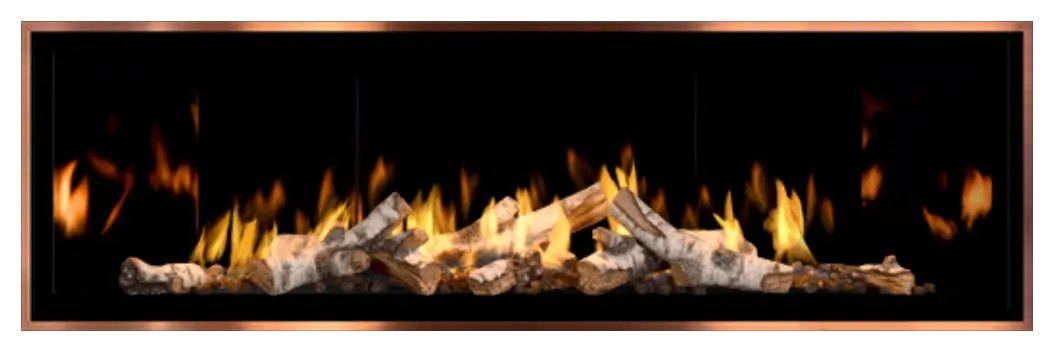

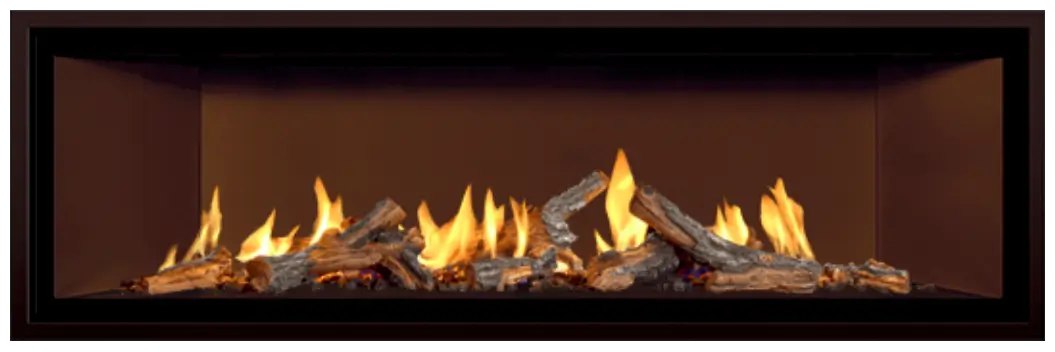

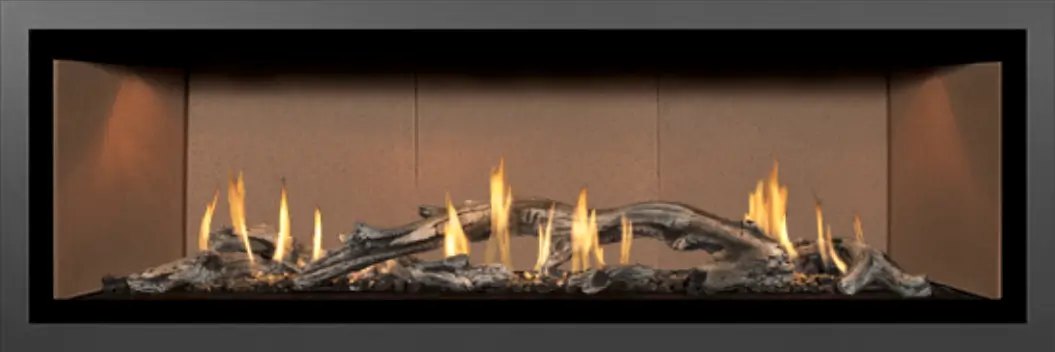

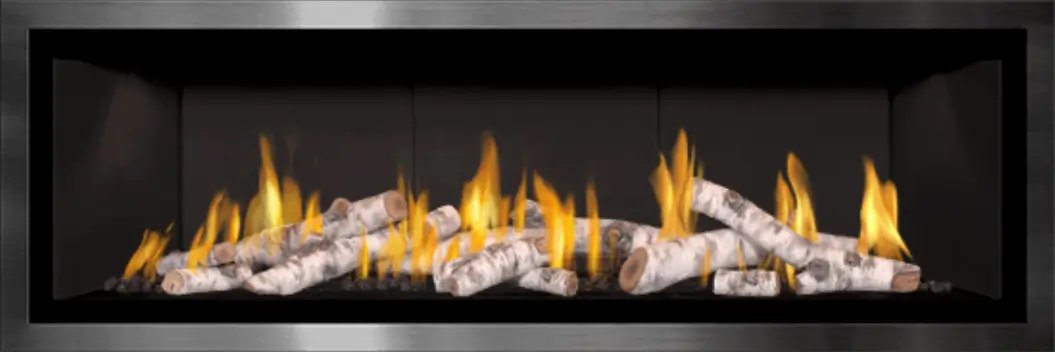

A fireplace with epic proportions. The ML72 creates a view like no other. As Mendota’s largest fireplace, the ML72 Linear gas fireplace has a colossal width that lets the realistic log sets make a huge statement in even the largest rooms. Frame yours with the perfect front and surround the flames with a liner that shows off your style in a big, bold way.
Features
- 1 stainless steel 304 plaque burner, 14 gauge steel construction inner firebox walls, Seam welded inner firebox, Blowers, Optional Wi-Fi control
- remote control w/ BTU output control, rear burner shutoff, fan speed control, top accent lights, electronic ignition, Neo ceramic glass
- Exhaust damper, P4 81% efficiency, shipping weight 560 lbs., uses 5 x 8 Direct Vent Pipe, IPI gas control system, AGA
- certified gas safety system, ANSI 21.50-2017 compliant
- BTU's (NG) 60,000 - 27,000 (LP) 60,000 - 31,000
Will it fit?
- Framing (rough opening)
- 86" × 46½" × 19½" (W × H × D)
- Unit size
- 77" × 45⅞" × — (W × H × D)
- Vent pipe
- 5" × 8"
- Heat output
- 60,000 BTU/hr (turns down to 27,000)
- Heating area
- ~3,000 sq ft (our estimate from the BTU rating; layout and insulation vary)
From the manufacturer's documentation (page 15). We confirm every measurement on the site visit before anything is ordered.
Documents
Fuel TypeNatural Gas▾

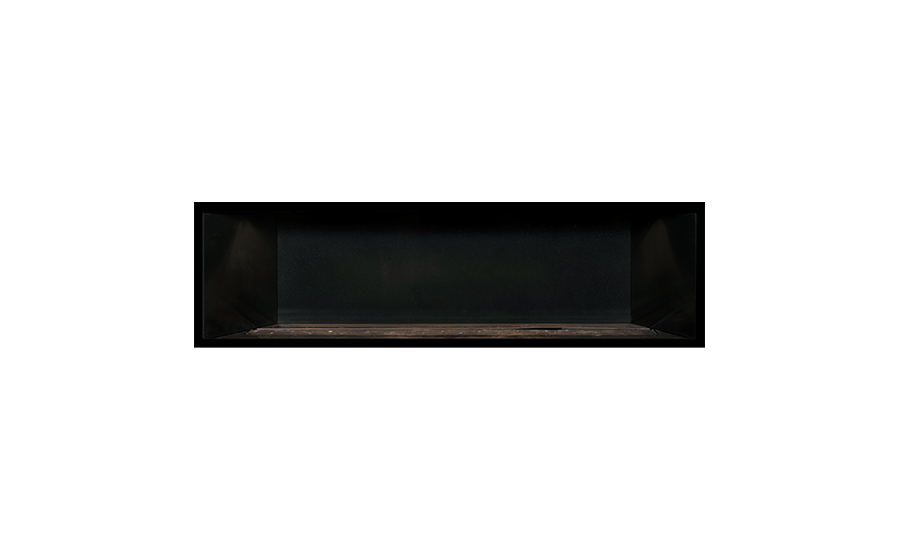

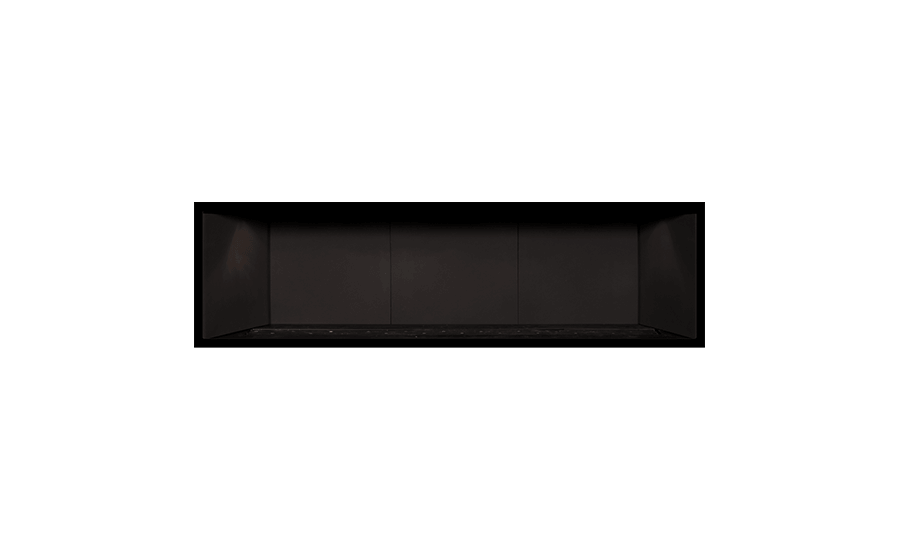

LinerFlat Panel — Blackrequired▾

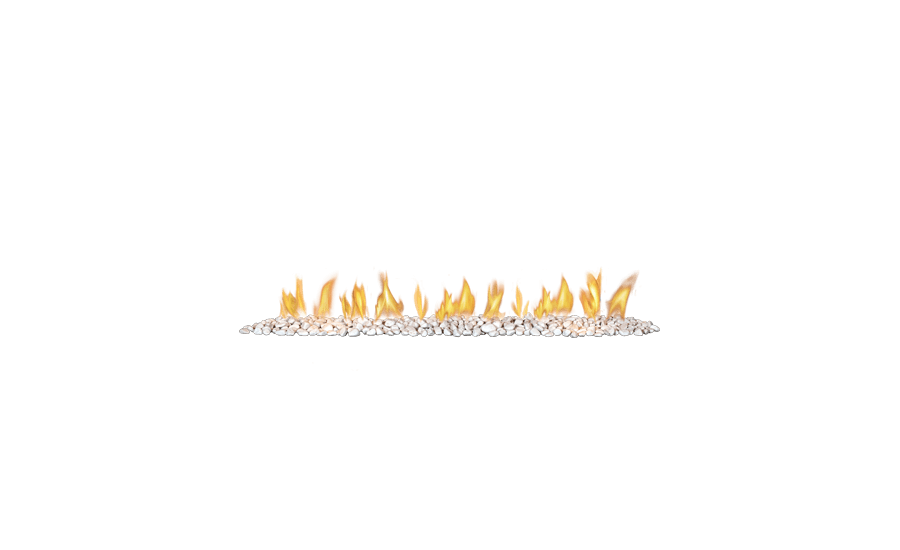

Log/MediaWhite Tumbled Marblerequired▾
FrontNarrow Grace — Blackrequired▾
AccentsNone▾
Front Guide Kitrequired with front▾
Venting▾
Optional Accessories▾
Protect it
Every written quote includes an optional 5-Year Protection Plan — mechanical breakdown, accidental damage, and power surge covered with no deductibles, unlimited covered repairs, and in-home service by our own technicians.
How the plan works →
