Nordik 48DV

About the Nordik 48DV

The Evolution of Fire Kozy Heat’s revolutionary EVO Elevated Burners create a stunningly realistic fire. Until now, fireplaces have created flames using two-dimensional burners on the firebox floor. EVOs elevated burners project flame form along and around the perimeter of the fireplace’s two signature logs,...

Features

• Works when the power is out — a battery backup keeps the remote and ignition running; only the fan needs electricity
• Viewing Area: 44-1/2 x 35-3/8
• 48,000 BTU/hr Input NG
• 48,000 BTU/hr Input
• Electronic Ignition Pilot System
• Ceramic Glass
• Fan Kit
• Standard Ember Light Kit
• Standard Top Light Kit
• Certified to ANSI Z21.88 Vented Gas Heater

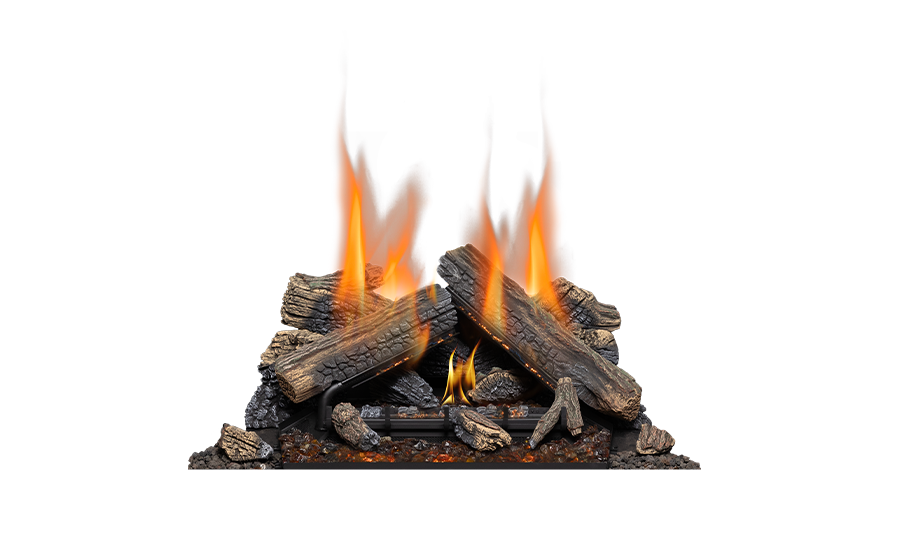

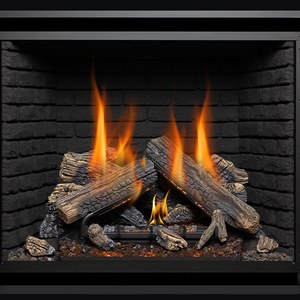

• Traditional or Birch log set (Sold separately – one required for installation)

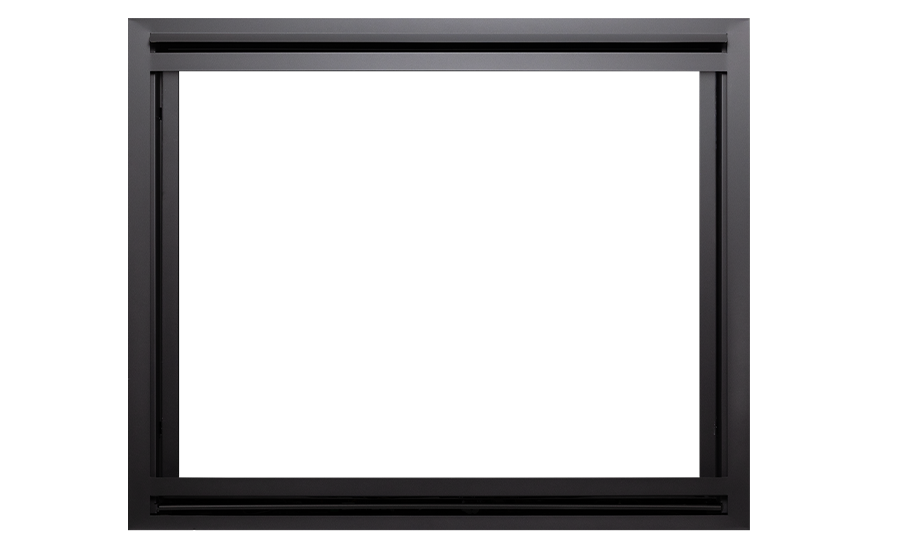

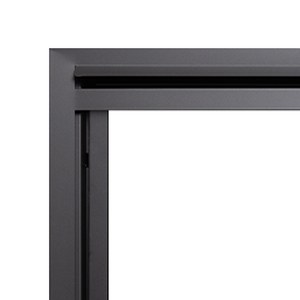

• Screen Front
• Black Brick Refractory
• Chicago Brick Refractory
• Ledgestone Refractory

Will it fit?

Framing (rough opening)

48¾" × 49" × 21⅜" (W × H × D)

Unit size

47⅝" × 41" × 21⅜" (W × H × D)

Vent pipe

5" × 8"

From the manufacturer's documentation (page 16). We confirm every measurement on the site visit before anything is ordered.

Specifications

Heat output

48,000 BTU/hr (turns down to 32,000)

Heating area

~2,400 sq ft (our estimate from the BTU rating; layout and insulation vary)

Viewing area

44 1/2" x 35 3/8"

Weight

315 lbs

Documents

• 📄 English - Nordik DV Brochure
• 📄 English - Nordik 48 Manual
• 📄 English - Power Vent Manual #KPV
• 📄 English - NK48-500 Traditional Log Set Instructions (Manual)
• 📄 English - NK48-B501 Birch Log Set Instructions (Manual)
• 📄 Vinyl Flooring and Vinyl Siding Addendum
• 📄 English - Komfort Zone Kit (Document)
