Nordik 48TL

About the Nordik 48TL

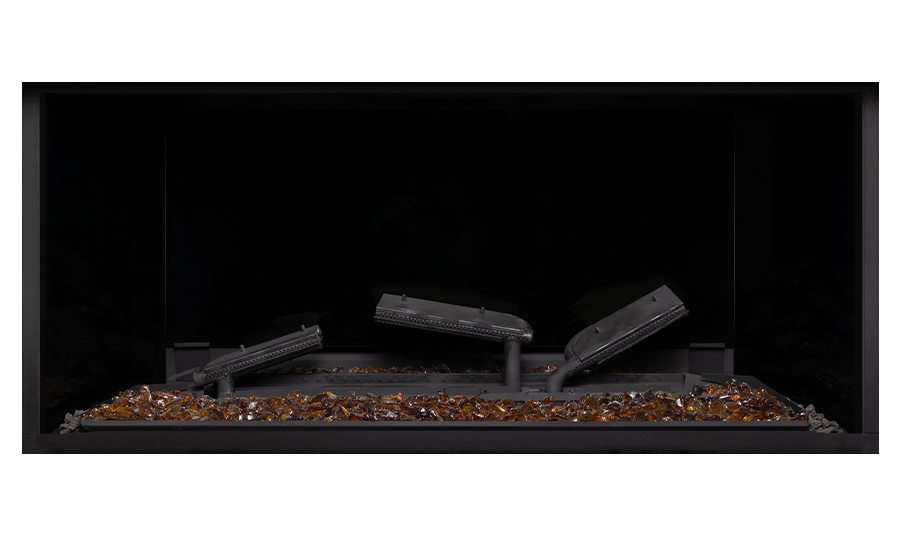

The Evolution of Fire Kozy Heat’s revolutionary EVO Elevated Burners create a stunningly realistic fire. Until now, fireplaces have created flames using two-dimensional burners on the firebox floor. Introducing the tall linear Nordik Series!

Viewing Area: 48" x 20" 51,000 BTU/hr Input NG 51,000 BTU/hr Input Electronic Ignition Pilot System Ceramic Glass Fan Kit Optional Standard Ember Light Kit Standard Top Light Kit Certified to ANSI Z21.88 Vented Gas Heater Efficiencies Steady State NG/LP | 72.86% /74.47% AFUE % NG/LP | 71.62% / 72.07% Efficiencies Glossary: P.4 Efficiency (EnerGuide) is an annual fireplace efficiency rating. Steady State Efficiency measures how efficiently your fireplace converts fuel to heat once it is warmed up and operating at a steady temperature. Annual Fuel Utilization Efficiency (AFUE) is a measurement of the fireplace’s ability to convert fuel to heat over a longer period of time, including cycling on and off time period. Required Design Features Traditional or Birch log set (Sold separately – one required for installation) Screen Front For options and pictures, look at the Nordik brochure under the Manuals & Brochures tab.

Features

• Works when the power is out — a battery backup keeps the remote and ignition running; only the fan needs electricity

Height 46-1/8" | Width 57-1/2" | Depth 19-1/2" | Weight 335 lbs

Will it fit?

Framing (rough opening)

65½" × 57" × 19½" (W × H × D)

Unit size

57½" × 46⅛" × 19½" (W × H × D)

Vent pipe

5" × 8"

Heat output

51,000 BTU/hr (turns down to 34,000)

Heating area

~2,600 sq ft (our estimate from the BTU rating; layout and insulation vary)

From the manufacturer's documentation (page 18). We confirm every measurement on the site visit before anything is ordered.

Documents

• 📄 English - Nordik TL Brochure
• 📄 English - Nordik 48TL Manual
• 📄 English - Power Vent #KPV Manual
• 📄 NK48TL-B501 Birch Log Set Instructions - Rev. 1 - English[100] (Manual)
• 📄 NK48TL-500 Traditional Log Set Instructions - Rev. 1 - English[68] (Manual)
• 📄 Vinyl Flooring and Vinyl Siding Addendum
• 📄 Komfort Zone Kit (#KZK-062) (Document)
