Springfield 36

About the Springfield 36

The Springfield 36 is a Stunning Direct Vent Gas Fireplace. It can be placed anywhere in the home, with flexible venting connecting it to the outside world. Read more!

The Springfield 36 is a Stunning Direct Vent Gas Fireplace The Springfield 36 benefits from a wide range of design options. This enables customization to meet your exact specifications. Because it’s a direct vent model, it can be placed almost anywhere in the home; with flexible venting connecting it to the outside world, air is allowed to flow around the fire bin when necessary. A Traditional Gas Fireplace that Offers Excellent Energy-Efficiency Energy-efficiency is always an important consideration when selecting a suitable heating appliance. Not only does better efficiency mean lower bills, saving fuel is also environmentally important. The Springfield 36 is rated at 73.52%/72.94% AFUE. It also performs at 35,000 BTU/hr input when using natural gas and 35,000 BTU/hr input for LP. Its high efficiency is defined as 79.55% for natural gas and 78.43% for LP gas. Overall, the Springfield 36 makes a cost-effective and economical addition to any home./p> Range of Exceptional Design Features on Our Gas Fireplace The model can be tailored to meet a wide range of specifications. One of the real design advantages of this choice is the front screen – available with a standard arched or optional rectangular format, it is generously proportioned for maximum viewing pleasure. Control is achieved through a Komfort Kontrol remote that can be minutely adjusted to give the exact temperature required.

Features

• Works when the power is out — a battery backup keeps the remote and ignition running; only the fan needs electricity

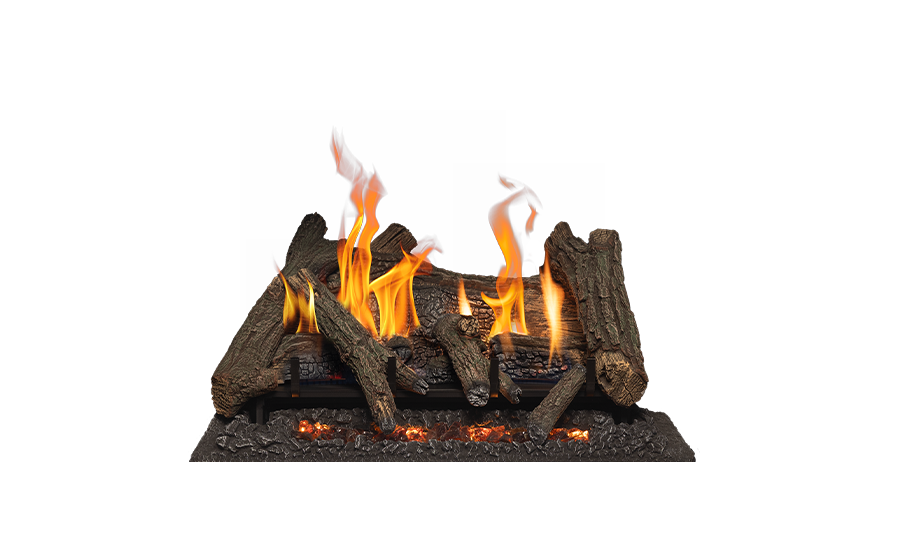

• Log Set
• Viewing Area: 21 5/8” x 29 7/16”
• 35,000 BTU/hr Input –NG
• 35,000 BTU/hr Input –LP
• Electronic Ignition (IPI)
• Ceramic Glass
• Fan Kit (2) 75CFM Blower
• Remote Control –Full Function
• High-Low Regulator
• Engineer-Designed burner system
• Light Kit

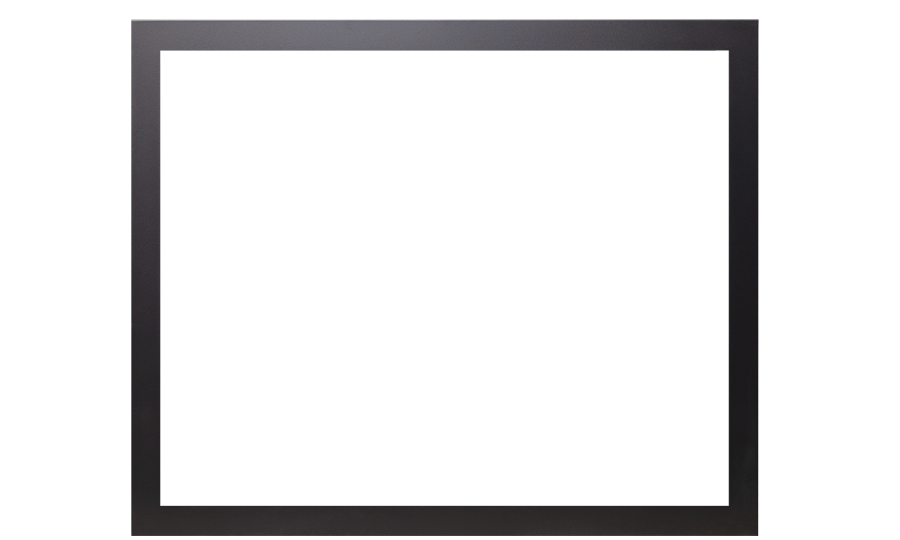

• Finish Trim Kit
• Certified to ANSI Z21.88 Vented Gas Heater
• Ember Bed Lighting

Height 30" | Width 36-3/4" | Depth 21" | Weight 210 lbs

Will it fit?

Framing (rough opening)

36¾" × 33½" × 21" (W × H × D)

Unit size

36¾" × 30" × 21" (W × H × D)

Vent pipe

5" × 8"

Heat output

35,000 BTU/hr (turns down to 18,000)

Heating area

~1,800 sq ft (our estimate from the BTU rating; layout and insulation vary)

From the manufacturer's documentation (page 9). We confirm every measurement on the site visit before anything is ordered.

Documents

• 📄 English - Springfield Brochure
• 📄 English - Springfield 36 Manual
• 📄 English - Power Vent Manual #KPV
• 📄 English - Springfield 36 Log Set (Manual)
• 📄 Vinyl Flooring and Vinyl Siding Addendum
