Bowman's Stove & Patio
Supreme · Contemporary Wood Insert

Fusion 18

• Heats: 500 - 1,800 sq ft• Max heat output: 60,000 BTU/hr (20 lb wood load)• Burn time: 4 - 8 hours• Firebox: 1.85 cu ft (EPA)• Log size: Up to 23" (18" recommended)• Emissions: 1.9 g/h — EPA certified• Glass: Ceramic glass, 19¼" × 11¼" viewing area• Blowers: Dual 55 CFM (110 CFM total) with variable speed control• Chimney: 5" liner (15-35 ft)

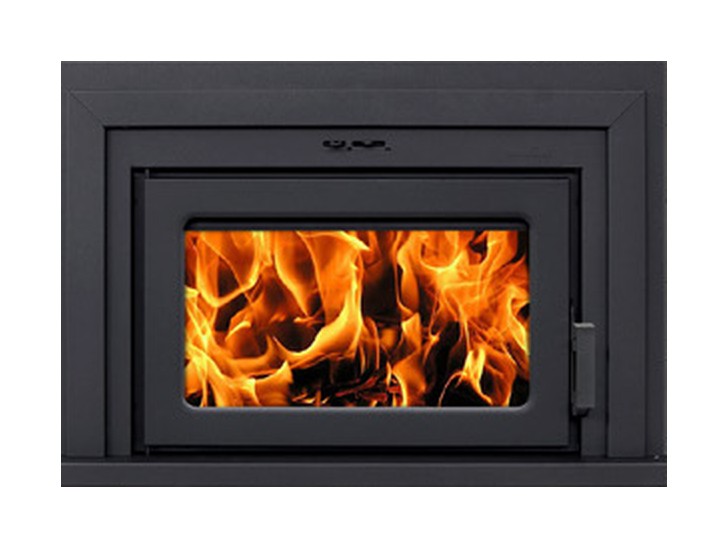

Supreme Fusion 18

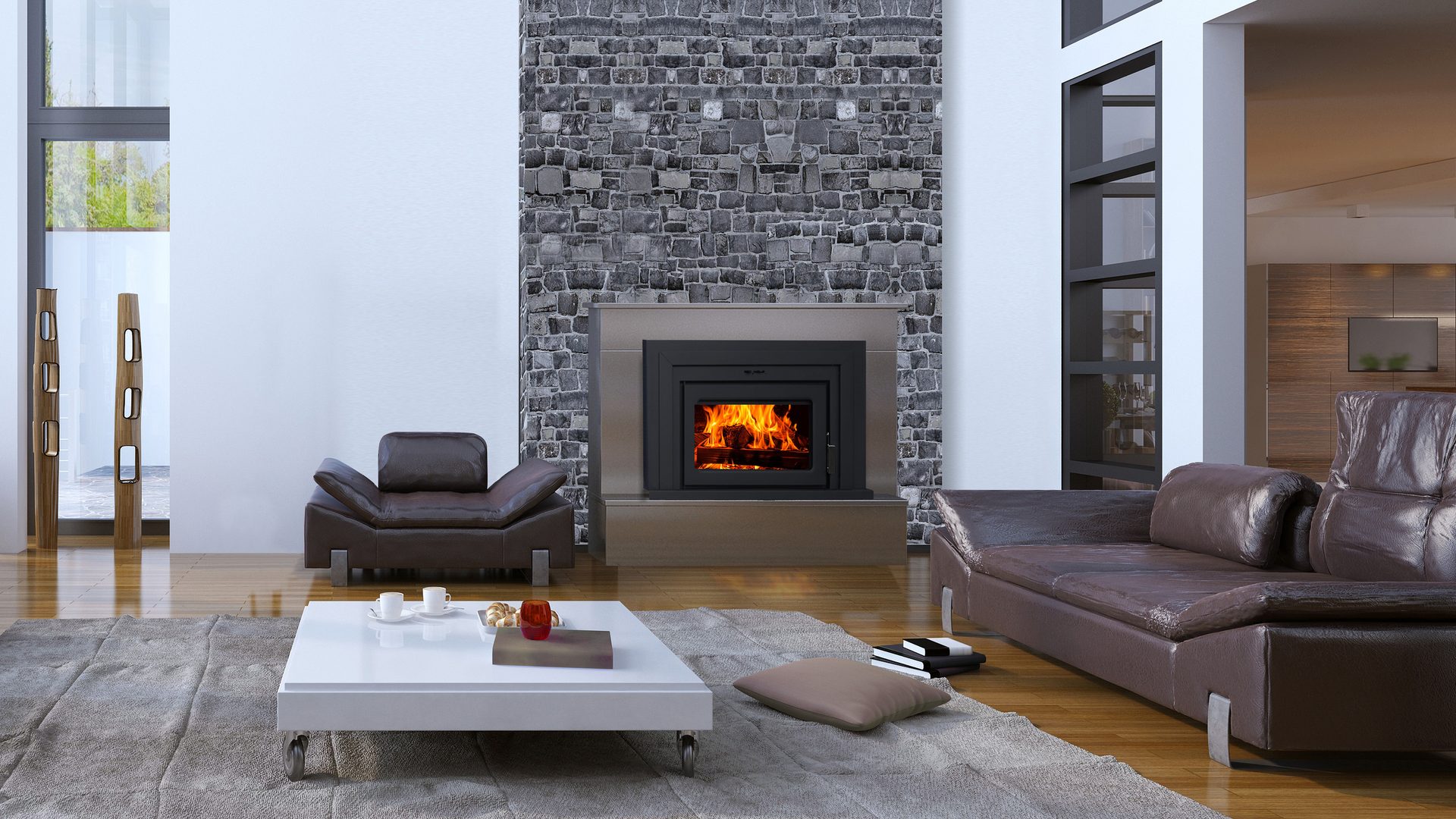

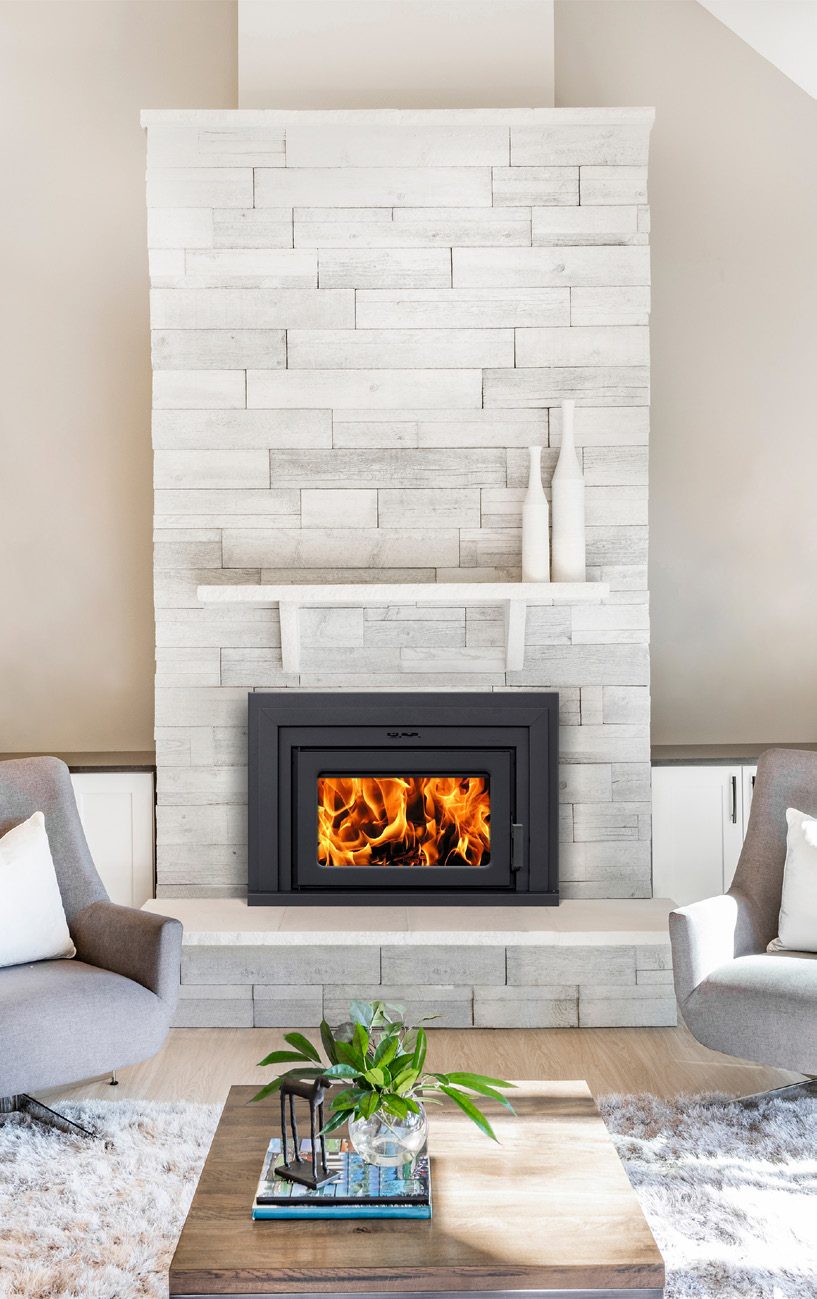

See it in a room:
Product gallery:
Surround (required): Surround 34" × 23" · Oversize Overlay: None

About the Fusion 18

The compact model of Supreme's Fusion series — the same patented technology and contemporary flush-mount style in a size for smaller masonry openings, with a generously proportioned firebox and up to 60,000 BTU/hr.

The Fusion 18 is the ideal wood-burning insert for blending the latest heating technology into a smaller existing fireplace. The compact model of the Fusion series still offers a generously proportioned 1.85 cu ft firebox and viewing panel — up to 60,000 BTU/hr for 4 to 8 hours per load, heating 500-1,800 sq ft. The same three patented technologies as its bigger brother underpin its operation: Automatic Air Control for consistent long-lasting fires, the circulating chamber that keeps heat in the room instead of the old chimney, and the perforated baffle that keeps the glass clear while stretching burn times. The hushed dual-fan system distributes the heat with ease, the optional built-in barbecue grill cooks over the embers year-round, and it installs on a 5" liner — perfect for narrow masonry chimneys. Want to see the Fusion up close? We have the larger Fusion 24 burning on display in our Ephrata showroom.

Features

  • Patented Automatic Air Control — set the burn rate and the insert automatically tapers ignition air to it
  • Patented circulating chamber keeps heat from escaping up the existing chimney
  • Dual heat-activated blowers (110 CFM total) with a variable speed control hidden on the surround
  • Perforated baffle design — unimpeded view of the fire with longer burn times
  • Flush-mount surround in Metallic Black complements any decor
  • Optional built-in barbecue grill attaches inside the firebox
  • Installs on a 5" liner — ideal for narrow masonry chimney openings

Insert 23"W (front) × 18¾"D — fits masonry openings from 28"W (front) × 21¾"H × 19"D; surrounds 34" × 23¼" or 36" × 24¼"

Will it fit?

Minimum fireplace opening
28" × 21¾" × 19" (W × H × D), 20" across the back
Insert body
23" × 21" × 18¾" (W × H × D)
Chimney
5" stainless-steel liner required (adaptor IN1110 included), 15 ft min / 35 ft max; masonry fireplaces with a continuous liner only
Liner / vent
5"
Heat output
60,000 BTU/hr (turns down to 10,958)
Heating area
500–1,800 sq ft (manufacturer's rating)
Max log length
18"
Firebox size
1.85 cu ft
Burn time
4 to 8 hrs

From the manufacturer's documentation (page 12). We confirm every measurement on the site visit before anything is ordered.

Documents

Surround (required)Surround 34" × 23"▾

Flush-mount surround in Metallic Black — pick the size that covers your opening.

Oversize OverlayNone▾

Optional Accessories▾

Your configuration: 2 items — itemized on your written quote.
Estimated Range installed$8,150 – $8,950
Includes professional installation and a typical venting run — priced from our live store system. Your written quote is tailored to your exact home; old-unit removal and unusual site work are added there if needed.
Optional add-on, not included in the range above: a 5-Year Protection Plan — breakdowns and accidents covered, no deductibles. Its price is shown separately on your written quote.
Questions? Text us · Call (717) 733-4973
Estimated installed
$8,150 – $8,950
Choose Options

Protect it

Every written quote includes an optional 5-Year Protection Plan — mechanical breakdown, accidental damage, and power surge covered with no deductibles, unlimited covered repairs, and in-home service by our own technicians.

How the plan works →
