Madrona Freestanding Stove

About the Madrona Freestanding Stove

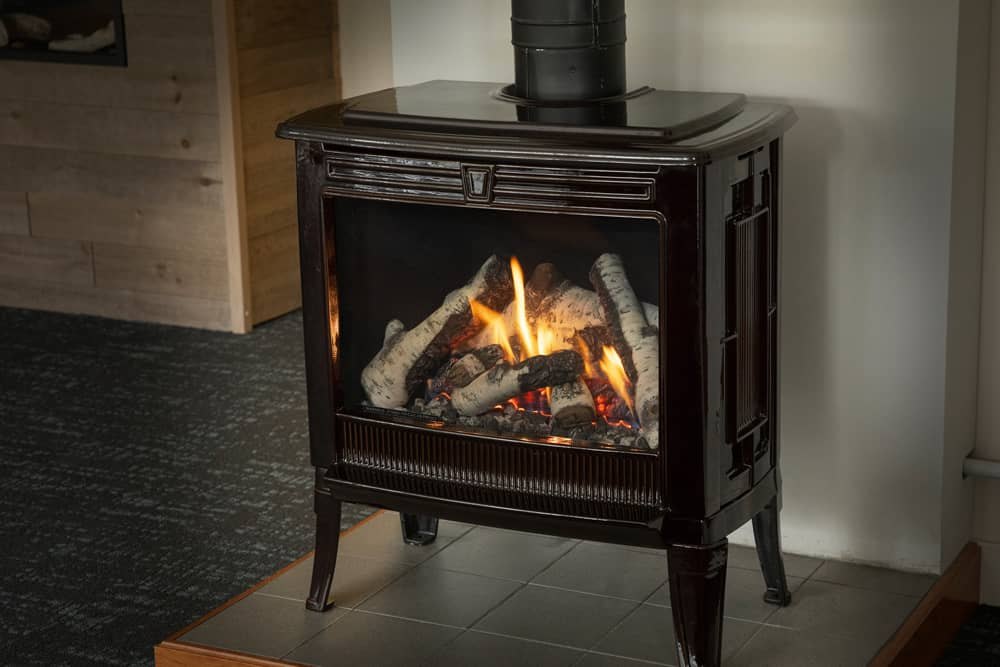

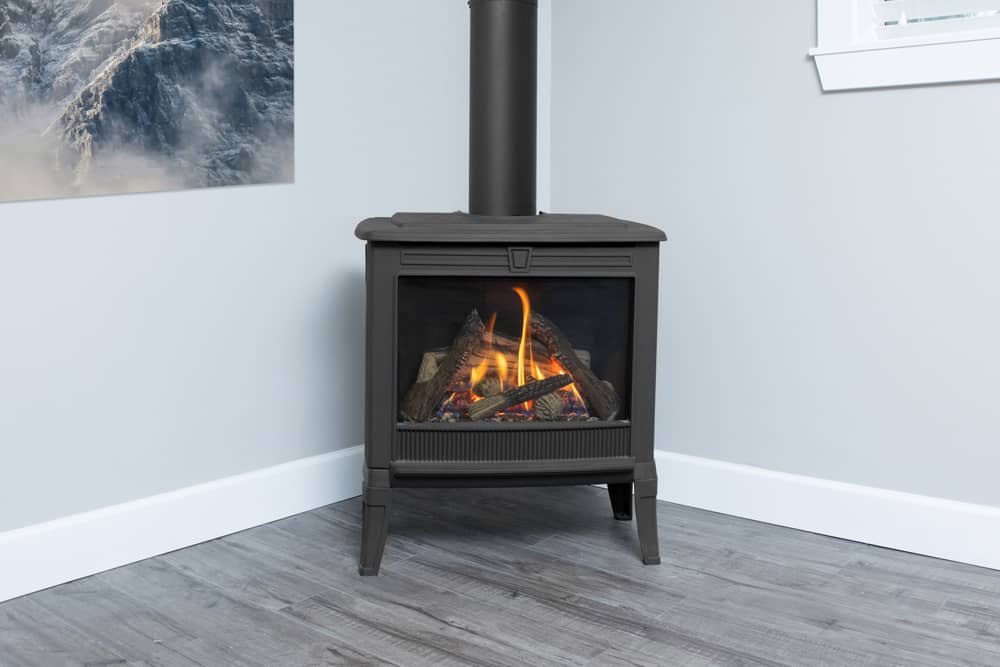

The Valor Madrona freestanding gas stove features cast iron styling, radiant heat and efficient performance – perfect for basements, corners and tight spaces.

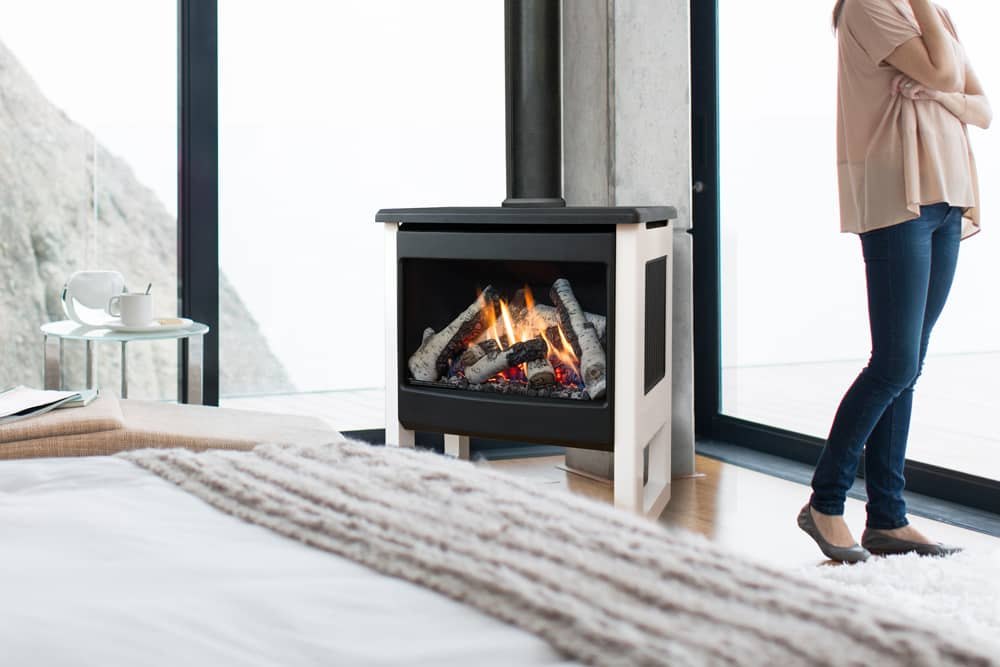

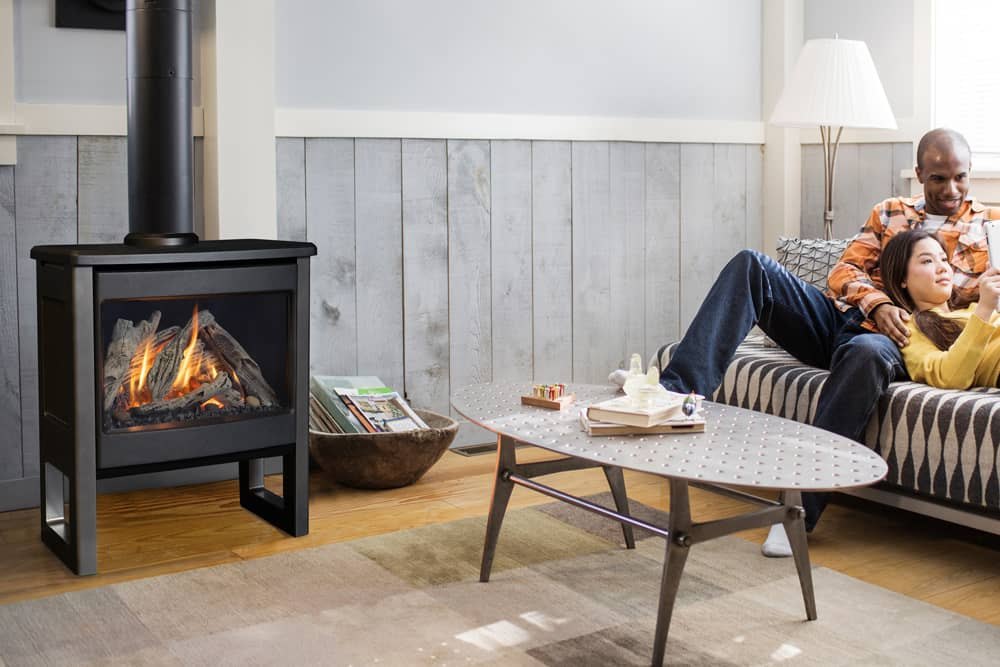

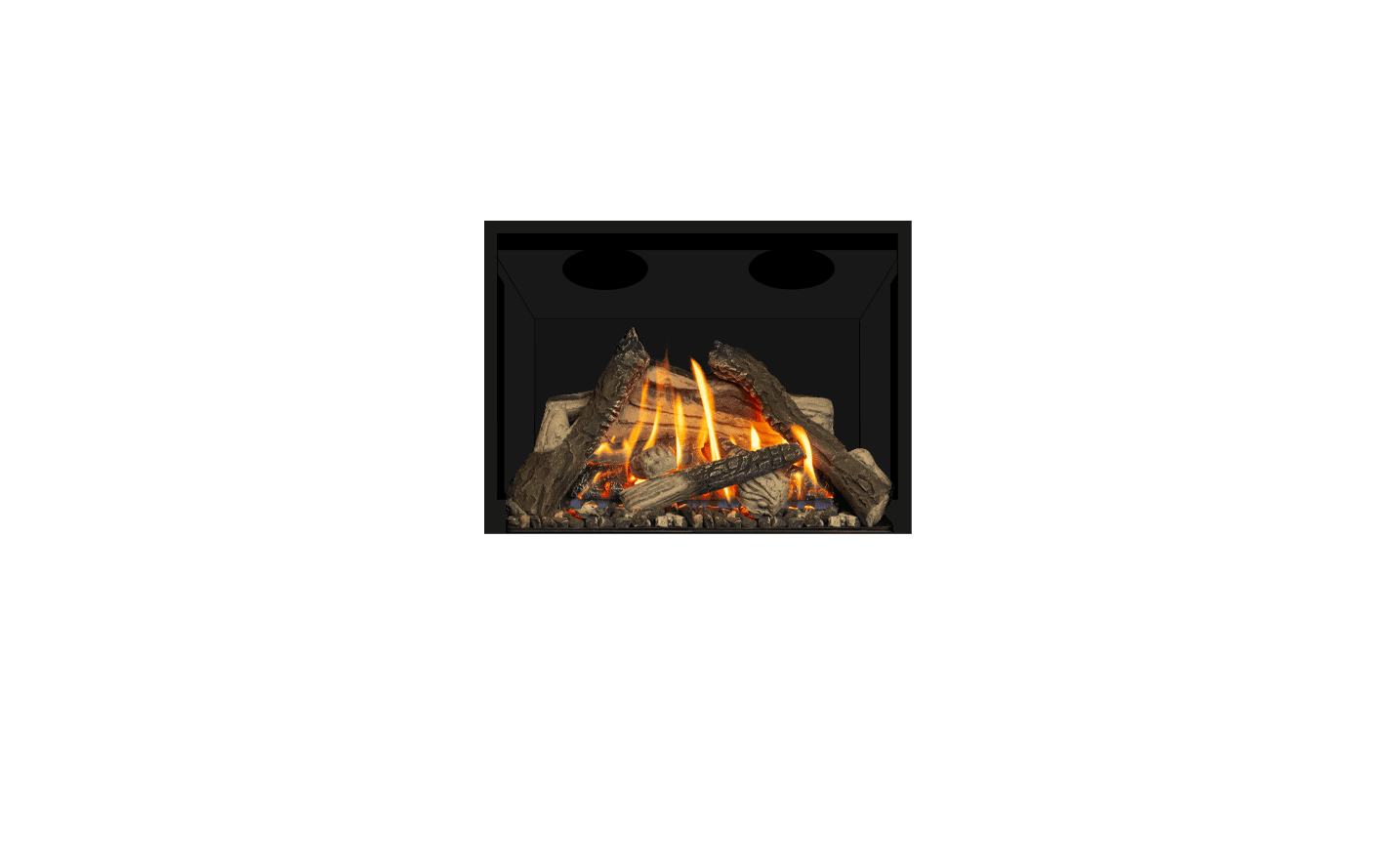

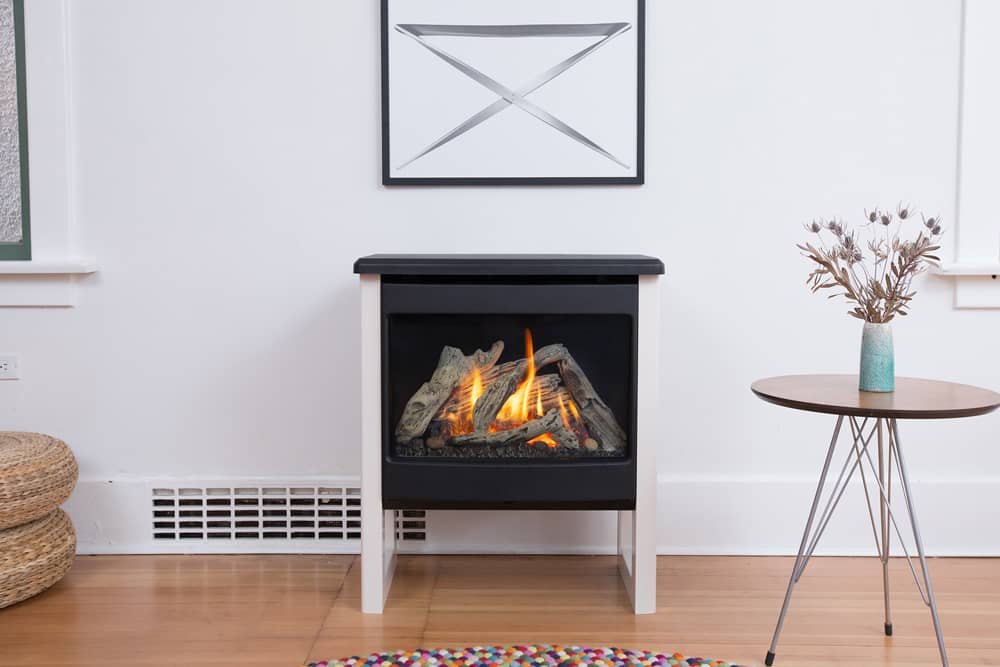

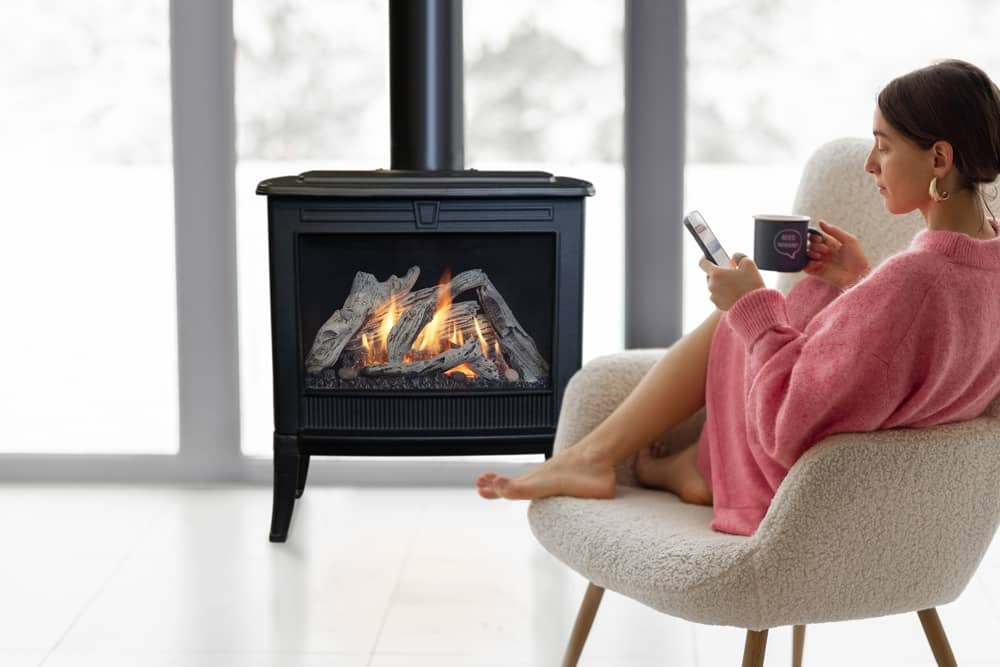

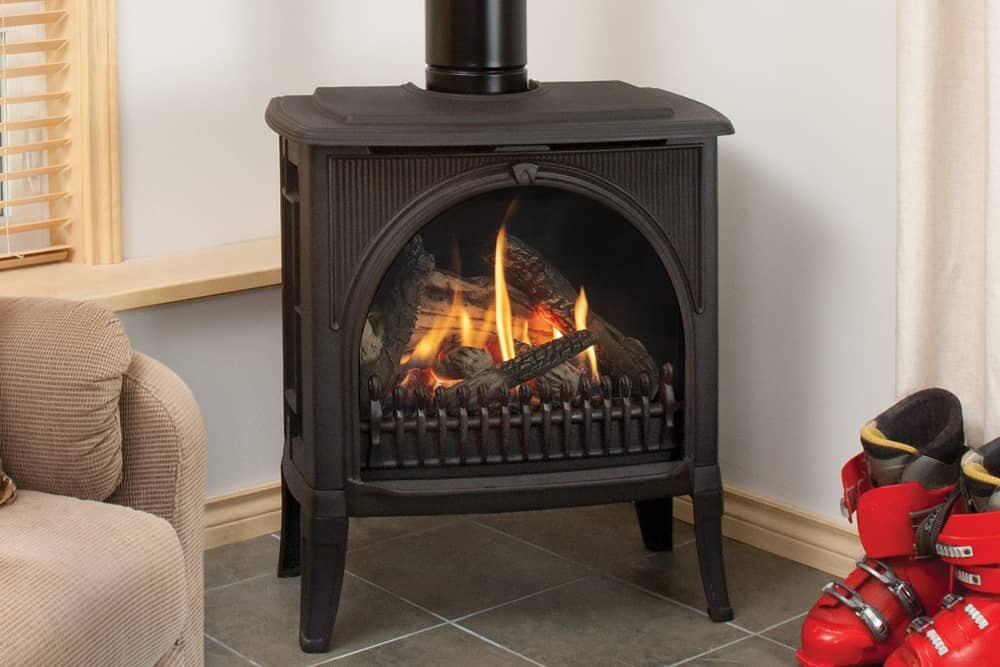

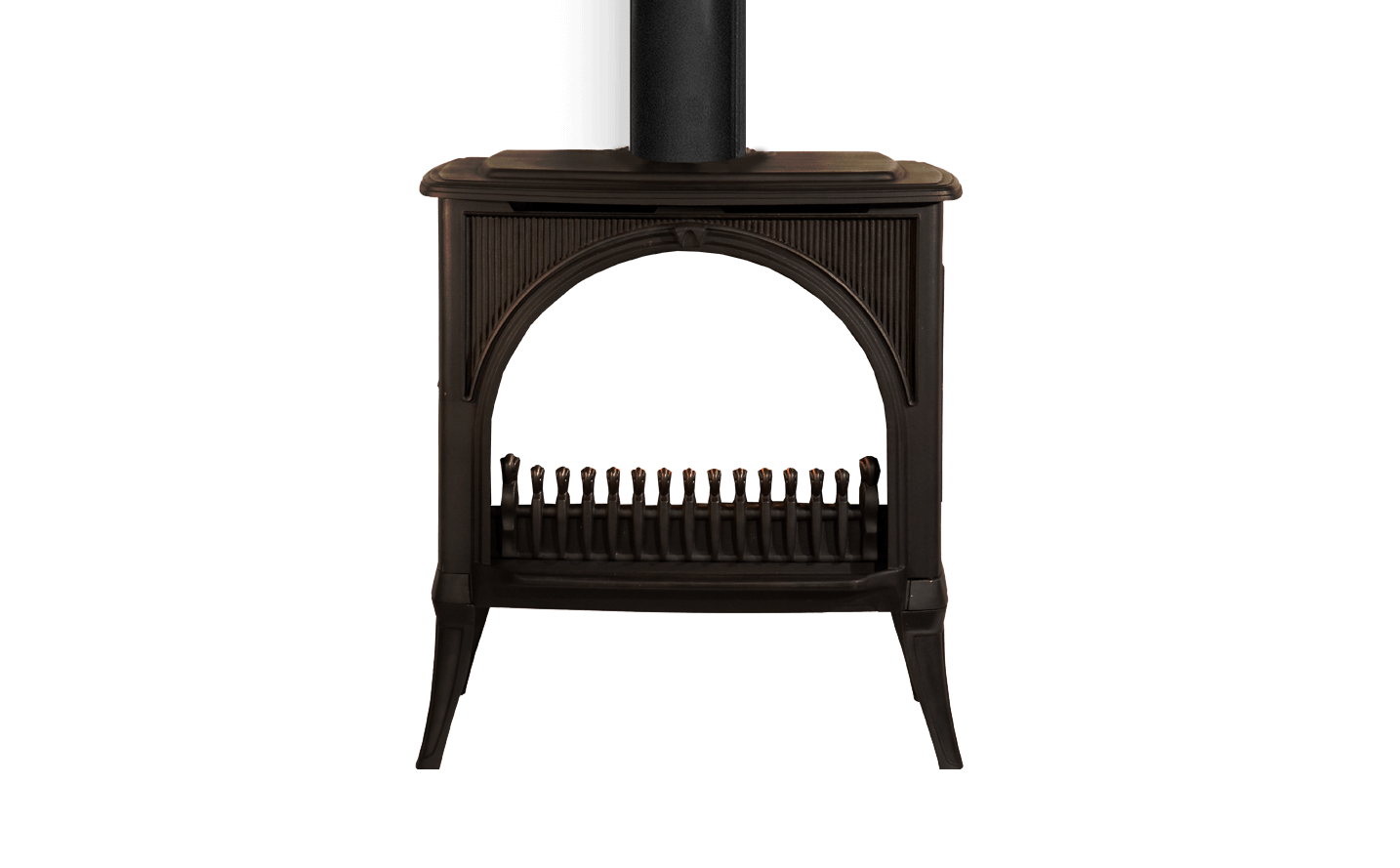

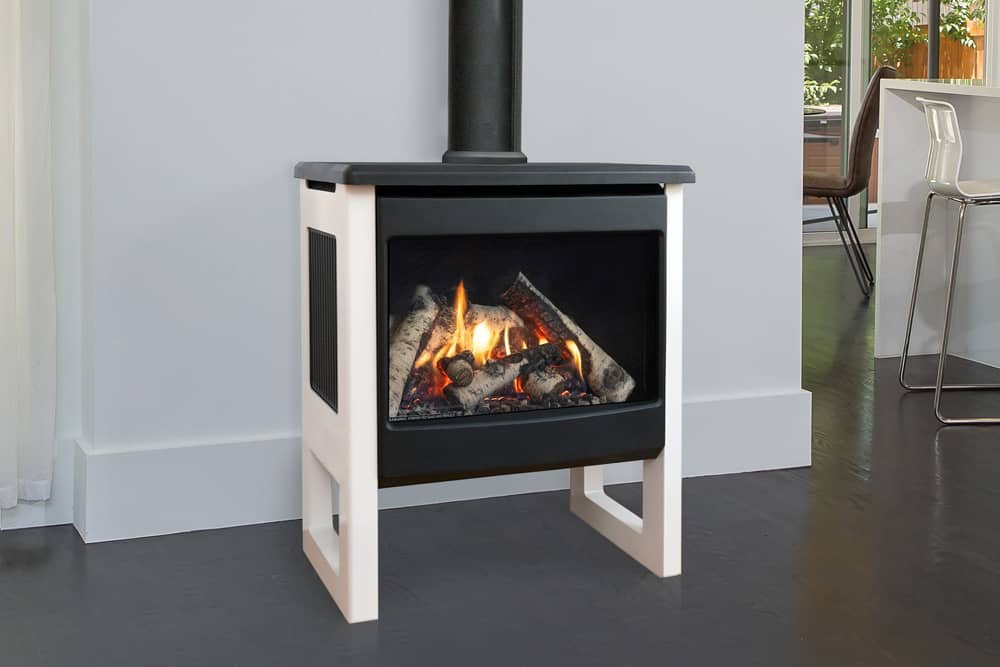

Available in arched, square, and modern styles, the Madrona projects warmth and ambiance in any living space. In addition to the clean lines and cast-iron craftsmanship, this functional unit provides energy-efficient, radiant heating throughout your home. The Madrona now offers a V-Class burner along with birch, driftwood, and traditional logs. Continuously warming objects in its path, its radiant heat will satisfy your comfort needs while using 25% less overall energy compared to forced air systems. The Valor Plus remote gives you full control of your fireplace. Select, adjust and program your desired temperature during waking hours, and set timers to turn off your fireplace after you go to bed.

Features

• Works when the power is out — a battery backup keeps the remote and ignition running; only the fan needs electricity
• Max Input (MF28VN): 26,000
• Min Input (MF28VN): 15,500
• Max Output (MF28VN): 19,362
• Max Input (MF28VP): 24,000
• Min Input (MF28VP): 15,200
• Max Output (MF28VP): 19,549
• Max Input (Gas Type): Natural Gas (NG) or Propane (LPG)
• Max Input (Square Front Viewing): 21 ¾" w x 13" h = 283"²
• Max Input (Arched Front Viewing): 20 ⅜" w x 13.5" h = 274"²
• Max Input (Modern Front Viewing): 21 ⅜" w x 13" h = 283"²

Size varies by casting

Will it fit?

Stove size

28½" × 30½" × 17⅞" (W × H × D)

Floor protection (hearth pad)

28" wide × 15" deep

Flue collar

4" × 6⅝"

Clearance to walls

2" behind (flat wall) · 2" beside · 2" from each wall in a corner

Floor protection

0" in front of the door, 0" each side

Heat output

26,000 BTU/hr (turns down to 15,500)

Heating area

~1,300 sq ft (our estimate from the BTU rating; layout and insulation vary)

From the manufacturer's documentation (page 1). We confirm every measurement on the site visit before anything is ordered.
