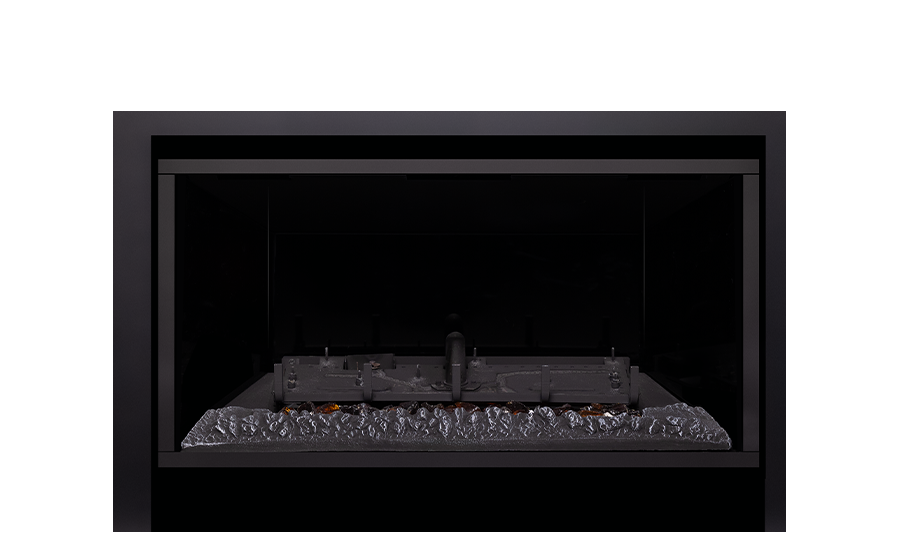

Chaska 29Millivolt · Millivolt (standing pilot)

About the Chaska 29 Millivolt

Millivolt (standing-pilot) model: no electricity required — keeps working in a power outage. Fan kit and remote or thermostat are NOT included; add them under Optional Accessories.

A compact direct-vent gas insert with plenty of warmth: the Chaska 29 Millivolt uses a standing pilot, comes with its fan kit, and keeps heating when the power goes out (only the fan needs electricity). Add the Skytech thermostat remote for hands-off control.

High Performing, Compact Gas Fireplace Insert. If you need a gas fireplace insert that will provide plenty of warmth without dominating your living space, the Chaska 29 Millivolt could be just what you're looking for. This is the standing-pilot (millivolt) version of the Chaska 29, and it comes with the fan kit included. Because the pilot and burner don't depend on household electricity, it keeps heating during a power outage — only the fan needs power. Its compact direct-vent design fits most existing wood fireplaces, and you can choose log or glass media, liner, screen front, and shroud to finish it. Pair it with the Skytech thermostat remote (offered as the default remote option) for set-and-forget comfort.

Features

• Works when the power is out — the standing pilot needs no electricity; only the fan needs power
• Millivolt standing-pilot ignition with fan kit included

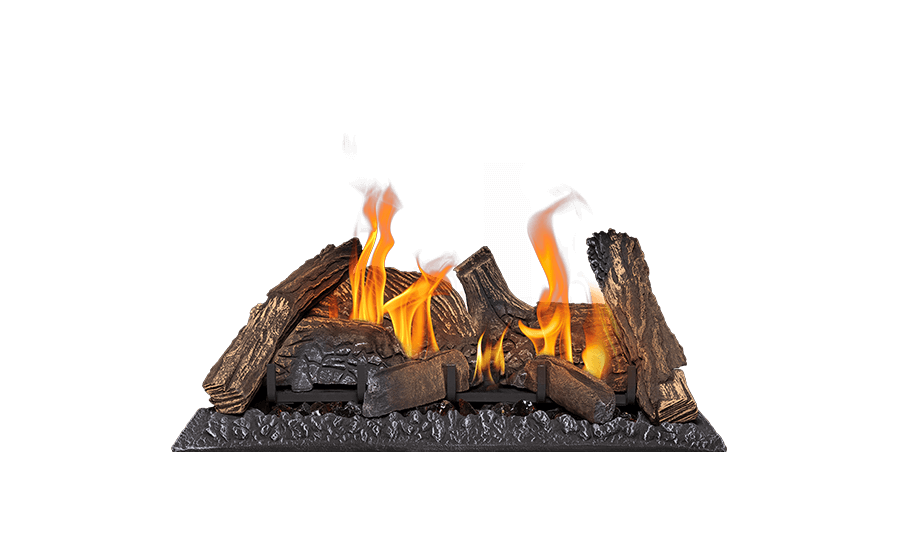

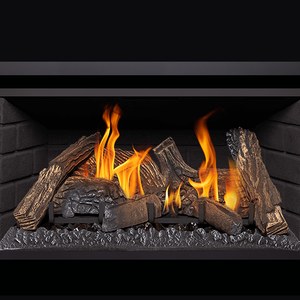

• Comes in Log or Glass media
• Viewing Area: 25-7/8" x 12-5/8"
• BTU (Log & Rock) 30,000 (Glass) 25,500 (MV) 28,500
• Electronic Ignition Pilot System
• Co-Linear Air Duct –Accepts 3” Combustion Air / 3” Exhaust
• Ceramic Glass
• Fan Kit
• Standard Ember Light Kit
• Certified to ANSI Z21.88 Vented Gas Heater
• Black Enamel Refractory Standard on Chaska 29 Glass only
• Ember Light Kit Standard on Chaska 29 Log only
• Accent Light Kit Standard on Chaska 29 Glass only
• Screen Front
• Glass Media Kit

Will it fit?

Minimum fireplace opening

29½" × 19¼" × 15" (W × H × D), 18⅞" across the back

Insert body

29½" × 19¼" × 14½" (W × H × D)

Chimney

• 6x8 in masonry or 7 in factory-built solid-fuel chimney minimum
• Height 10 ft min, 50 ft max

Liner / vent

3x3 co-linear

From the manufacturer's documentation (page 9). We confirm every measurement on the site visit before anything is ordered.

Specifications

Heat output

• 28,500 BTU/hr (turns down to 18,500)
• NG 28,500 / LP 29,000

Heating area

~1,400 sq ft (our estimate from the BTU rating; layout and insulation vary)

Viewing area

26 1/8" x 12 7/8"

Weight

115 lbs

Documents

• 📄 English- Gas Insert Brochure
• 📄 English - Chaska 29 Log Manual
• 📄 English- Chaska 29 Glass Manual
• 📄 English - Chaska 29 Millivolt Manual
• 📄 Chaska BAK Kit (Manual)
• 📄 Vinyl Flooring and Vinyl Siding Addendum
