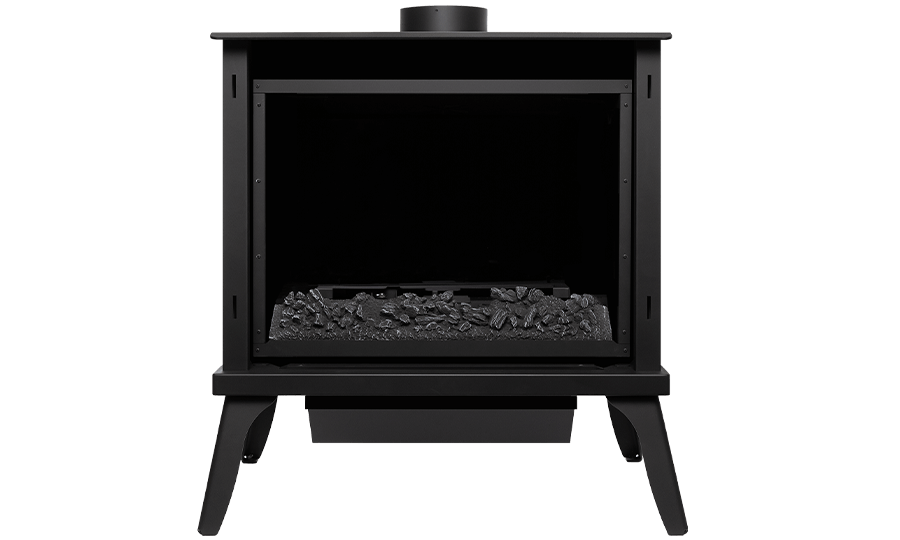

Lakefield XLIPI · Electronic ignition (IPI)

About the Lakefield XL

The Lakefield XL is Kozy Heat's fully equipped free-standing direct-vent gas stove: 40,000 BTU/hr with electronic (IPI) ignition, and the fan kit and thermostat remote come included. No chimney needed — it vents straight through a wall or roof, so it heats almost any room. (The separate Lakefield XL Millivolt is the standing-pilot version with the fan and remote as add-ons.)

The Lakefield XL is a free-standing direct-vent gas stove with serious output: rated at 40,000 BTU/hr on natural gas (39,000 on LP) at about 69% efficiency, it's low on fuel and high on heat. This is the IPI model, and it comes fully equipped — electronic intermittent-pilot ignition, the fan kit, and the thermostat remote control are all included, so there's nothing to add to get the complete stove. Because it's direct vent there's no chimney or existing fireplace required; it connects to the outside through its own venting, which opens up almost any room of the house, even in homes that weren't built for a gas appliance. Traditional legs and a screen front are standard, and the screen, refractory, and base can be customized for a range of looks. Limited lifetime warranty. Looking for the standing-pilot version that runs with no electricity at all? That's the separate Lakefield XL Millivolt, where the fan kit and remote are optional add-ons.

Features

• Works when the power is out — a battery backup keeps the remote and ignition running; only the fan needs electricity
• Fan kit and thermostat remote control included
• Electronic intermittent-pilot (IPI) ignition — no standing pilot
• Viewing Area: 16" x 22"
• 40,000 BTU/hr Input-NG
• 39,000 BTU/hr Input - LP
• Ceramic Glass
• Standard Traditional Legs

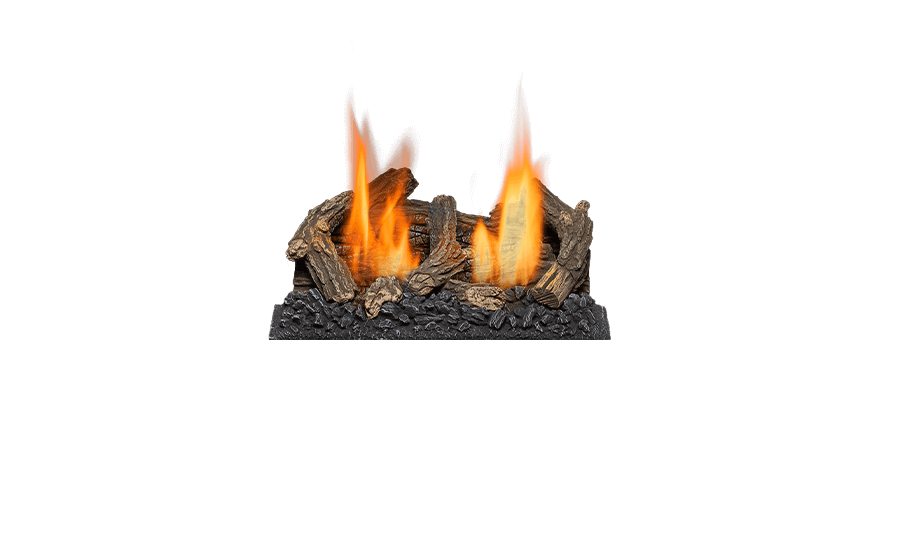

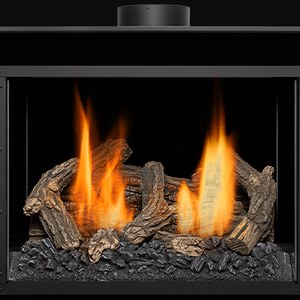

• Patented Burner & Log design
• Limited Lifetime Warranty
• Certified to ANSI Z21.88 Vented Gas Heater
• Traditional Legs

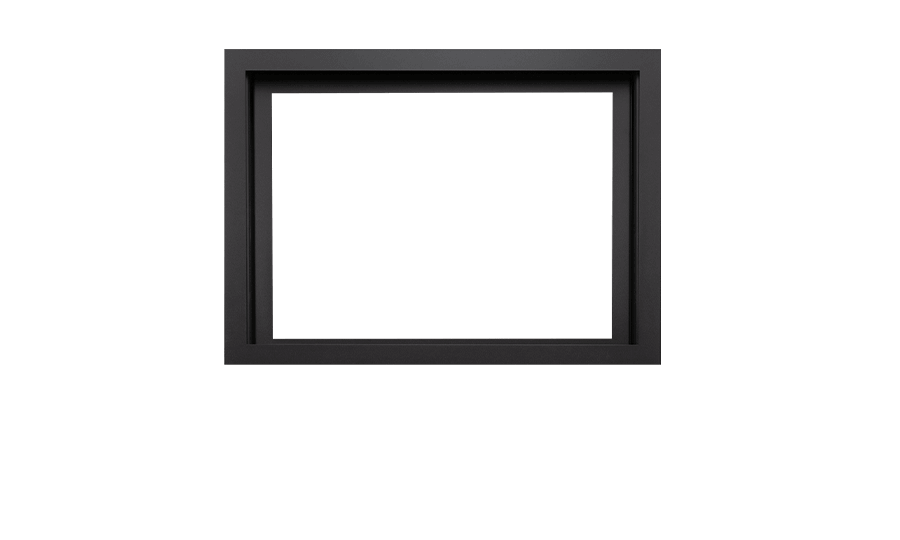

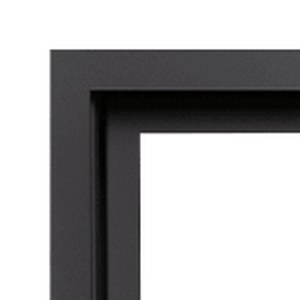

• Screen Front
• Traditional Brick
• Black Glass Panels

Height 21-5/8" (excluding legs or base) | Width 28-15/16" | Depth 19-3/8" | Weight 207 lbs

Will it fit?

Stove size

30¹³⁄₁₆" × 32" × 20¹¹⁄₁₆" (W × H × D)

Floor protection (hearth pad)

30¹³⁄₁₆" wide × 20¹¹⁄₁₆" deep

Flue collar

4" × 6⅝"

Clearance to walls

3" behind (flat wall) · 3" beside · 1½" from each wall in a corner

Floor protection

0" in front of the door, 0" each side

Heat output

40,000 BTU/hr (turns down to 27,500)

Heating area

~2,000 sq ft (our estimate from the BTU rating; layout and insulation vary)

From the manufacturer's documentation (page 9). We confirm every measurement on the site visit before anything is ordered.

Documents

• 📄 English - Freestanding Brochure
• 📄 English - Lakefield 22 Manual
• 📄 Lakefield XL Traditional Log Set (Log Set Instructions)
• 📄 Vinyl Flooring and Vinyl Siding Addendum
